AS08012XB259100 ADDA 12V DC Axial Fan

Description

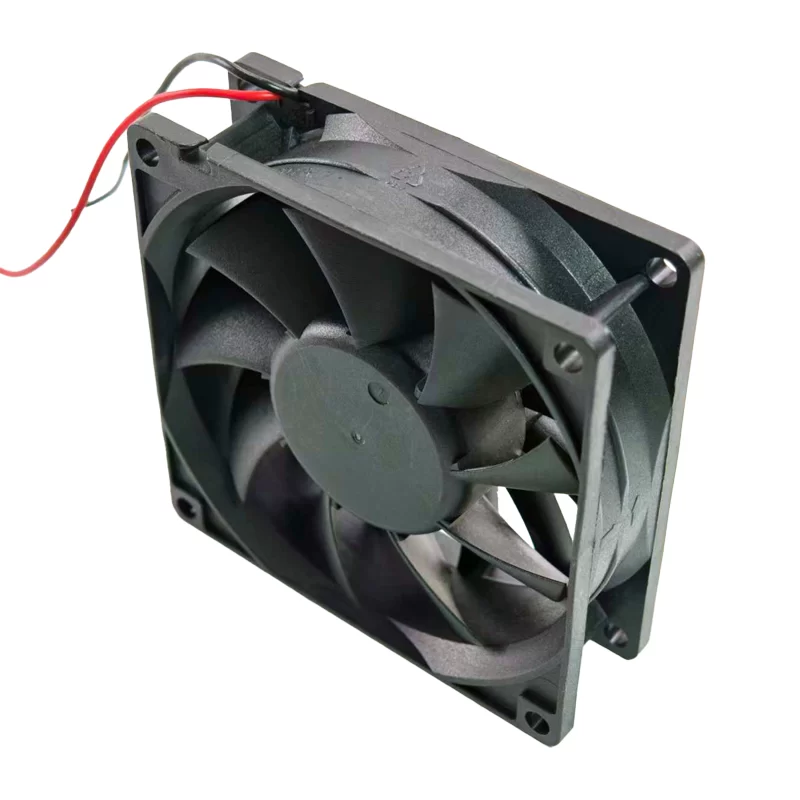

The ADDA AS08012XB259100 is a high-performance DC Axial Fan with dimensions of 80×80×25 mm. It is engineered with 9 blades and operates on a nominal voltage of 12 VDC. The fan has a Current Rating of 0.48 A, resulting in a power consumption of 5.76 W. Running at a speed of 4,500 RPM, it provides a substantial maximum airflow of 115.9 m3/h (68.20 CFM) and a high static pressure of 86.7 Pa (0.349 inAq). It utilizes a long-life MagLev bearing system and features a low noise level of 52 dB(A).

AS08012XB259100 Fan Parameters
Model: AS08012XB259100
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 80×80×25 mm
Nominal Voltage: 12 VDC

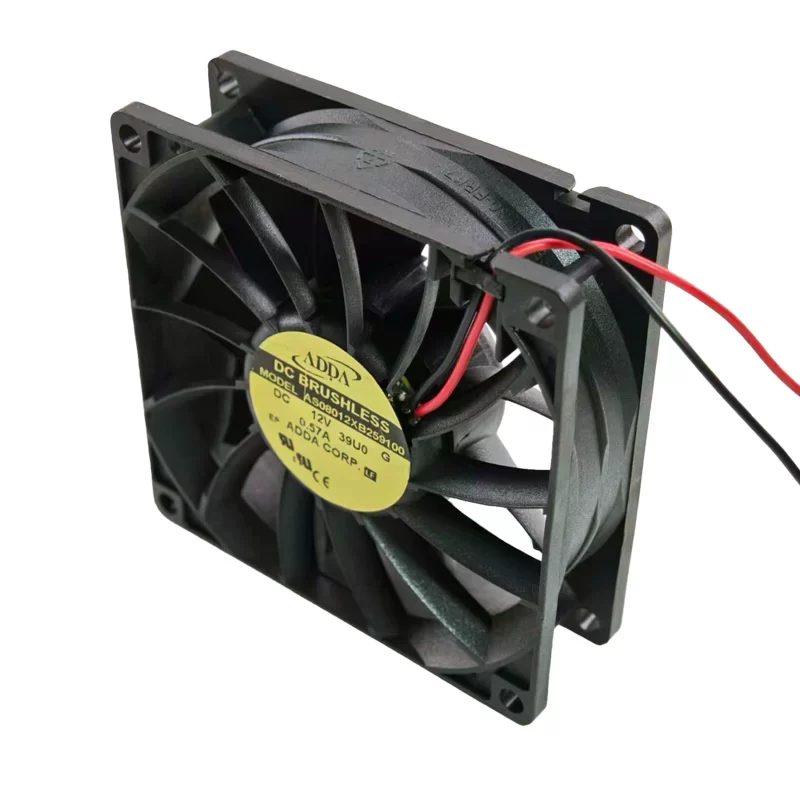

Label Current: 0.57A
Current Rating: 0.48 A
Rated Power: 5.76 W
Rated Speed: 4,500 RPM
Airflow: 115.9 m3/h (68.20 CFM)
Static Pressure: 86.7 Pa (0.349 inAq)
Noise Level: 52 dB(A)
Bearing System: Ball Bearing)
Termination: 2-Wire Leads

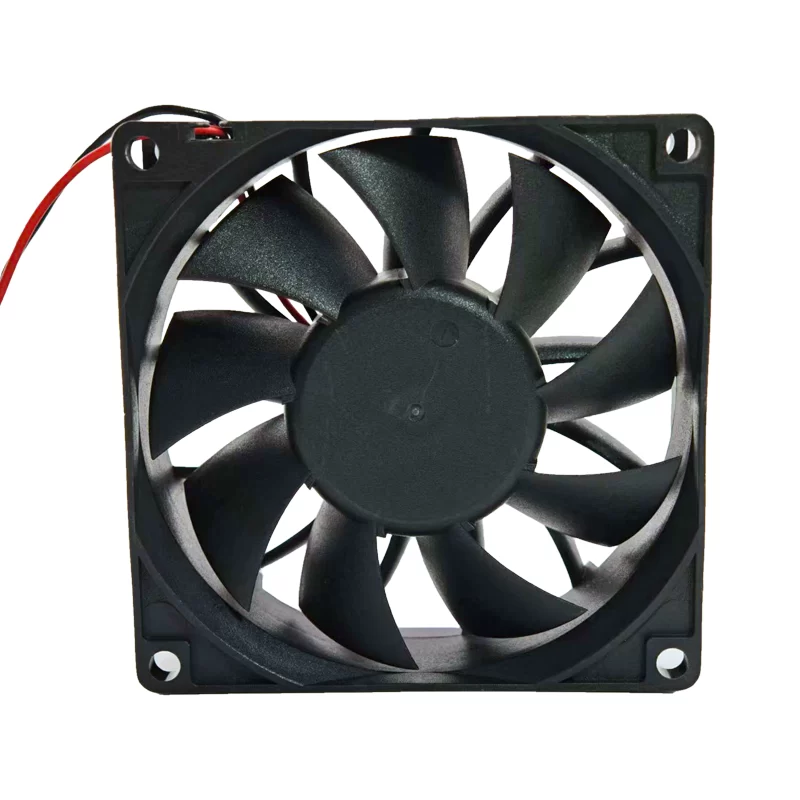

Number of blades: 9
Weight: 86 g
Housing Material: Thermoplastic PBT (UL94V−0)
Impeller Material: Thermoplastic PBT (UL94V−0)
Motor Design: Brushless DC Motor
Direction of Rotation: Counter-clockwise viewed from front of fan blade

Application
The high airflow and static pressure characteristics of the AS08012XB259100 make it ideal for high-airflow cooling solutions in systems with moderate back pressure, such as network switches, blade servers, mini-ITX cases, and industrial PCs. The MagLev bearing ensures reliability and a long operating life in continuous duty cycles.
