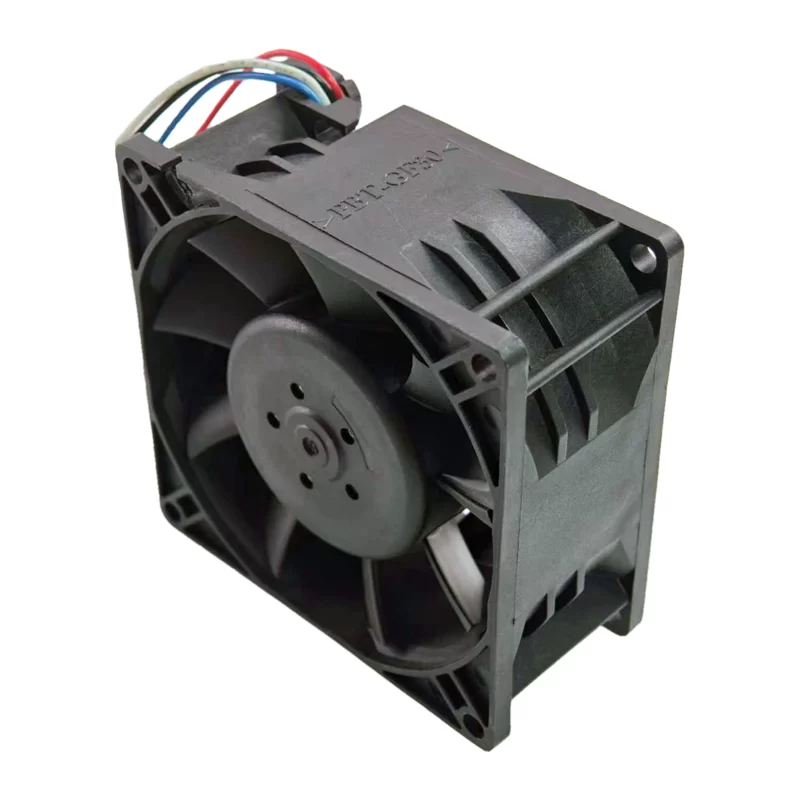

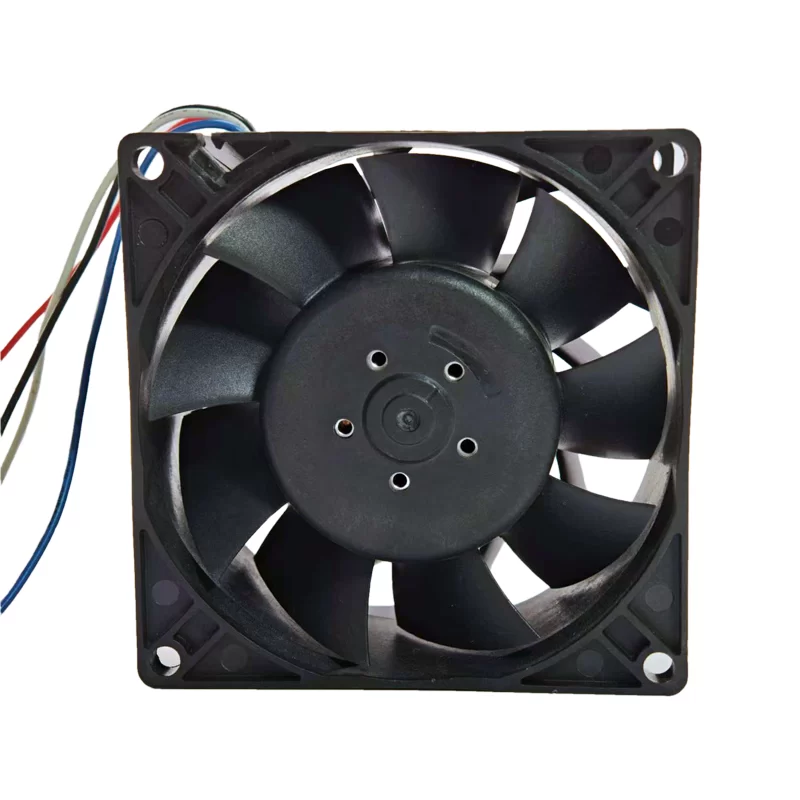

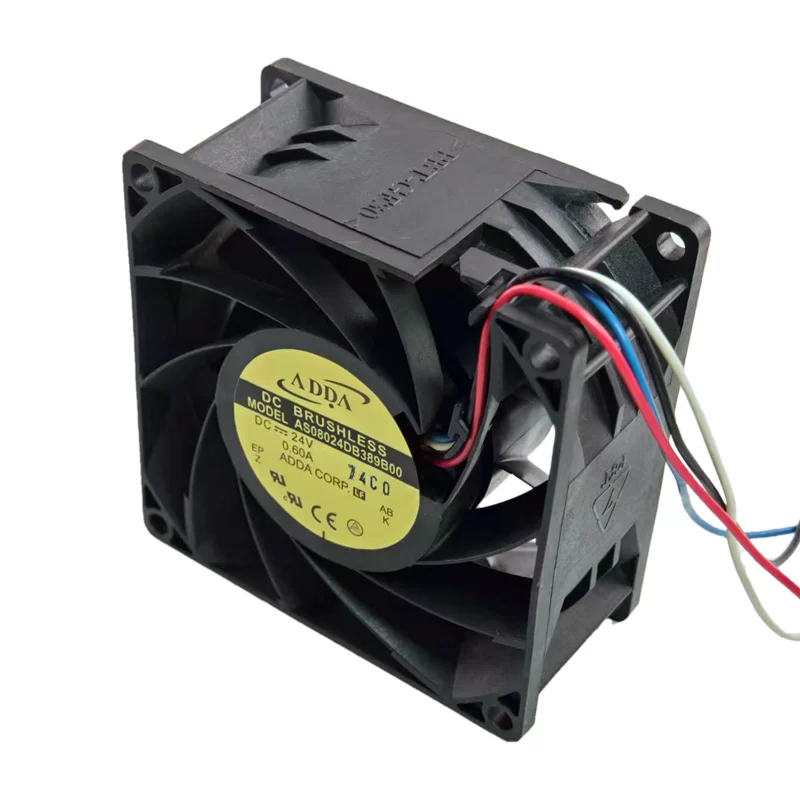

AS08024DB389B00 ADDA 24V DC Axial Fan

Description

The ADDA AS08024DB389B00 is a high-performance DC Axial Fan with dimensions of 80 x 80 x 38 mm. It operates on a nominal 24 V DC voltage and features a reliable Ball Bearing system. This fan is designed for high static pressure applications, delivering an air flow of 139.71 m3/h at a speed of 6000 RPM and a static pressure of 225.26 Pa. The fan runs with a typical current draw of 0.37 A (with a label current of 0.60 A) and a power consumption of 8.88 W, while generating a noise level of 55 dBA. Constructed from Plastic material and weighing 212 g, it is an ideal solution for cooling high-density server, telecommunication, and industrial control equipment.

AS08024DB389B00 Fan Parameters
Model: AS08024DB389B00
Manufacturer: ADDA
Type: Axial Fan
Nominal Voltage: 24 V DC
Current Draw: 0.37 A
Label Current: 0.60 A
Power Consumption: 8.88 W
Airflow: 139.71 m3/h
Static Pressure: 225.26 Pa
Speed: 6000 RPM
Noise Level: 55 dBA
Dimensions: 80 x 80 x 38 mm
Weight: 212 g
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 4 Wire Leads
AC/DC: DC

Application
The AS08024DB389B00 is specifically utilized in high-performance cooling situations where significant air movement and high static pressure are needed to overcome resistance in dense systems like network switches, server blades, power supply units, and small cabinet ventilation.
