AS08024MB389200 ADDA 24V DC Axial Fan

Description

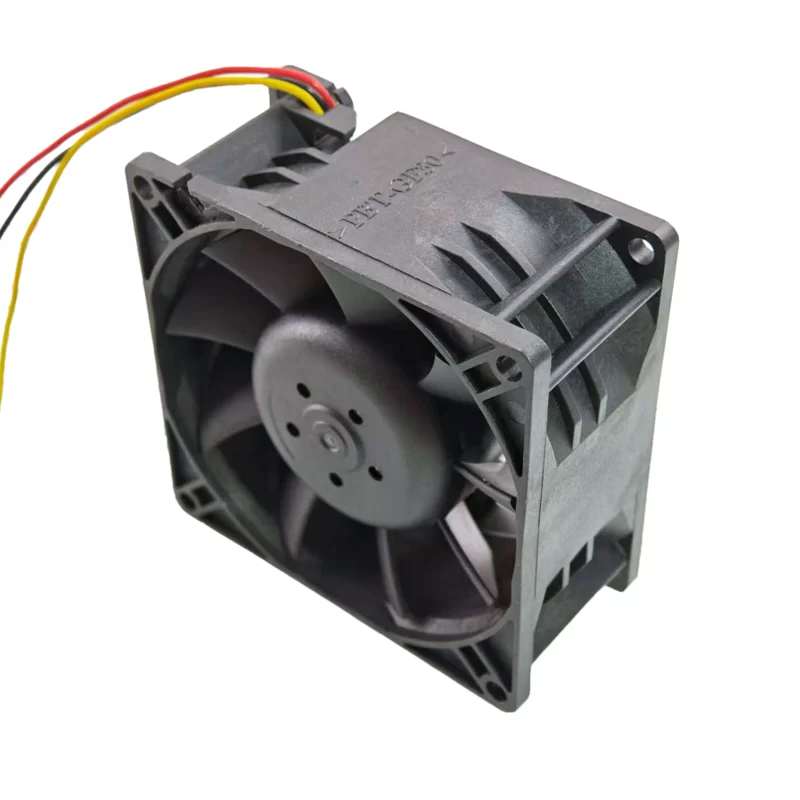

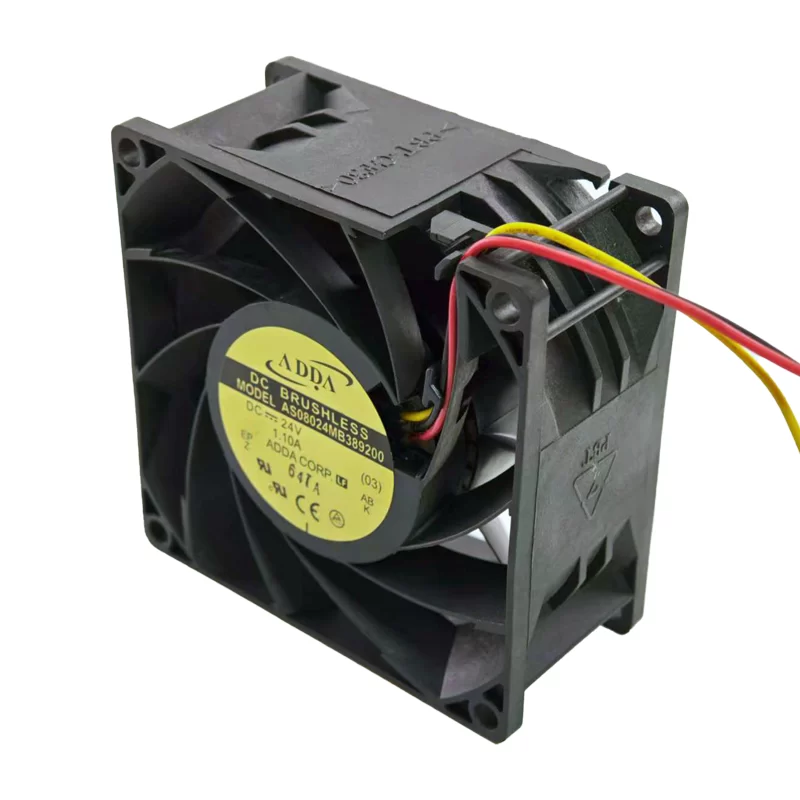

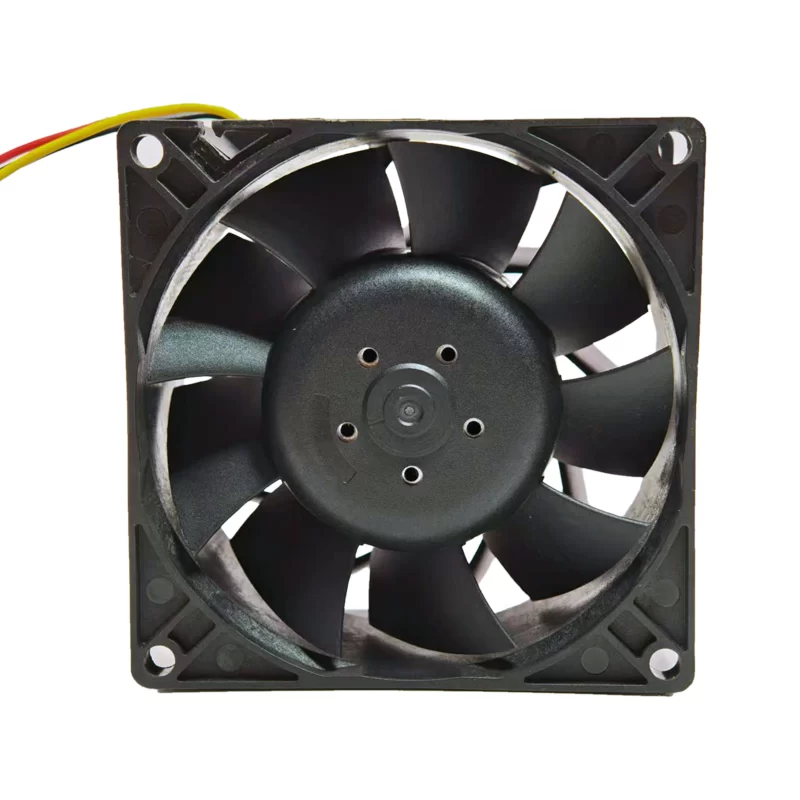

The ADDA AS08024MB389200 is a high-performance DC axial fan with dimensions of 80 x 80 x 38 mm. Operating at 24V DC, it draws a nominal current of 0.8 A and consumes 19.2 W of power. This fan delivers a powerful airflow of 114 CFM (193.7m3/h) and a static pressure of 41 mmH2O (402Pa) at a high speed of 8000 RPM. It operates at a noise level of 61.9 dB(A) and features a ball bearing with a service life of up to 70,000 hours at 40°C. The fan housing and impeller are constructed from thermoplastic PBT, and it is equipped with protection against reverse polarity.

AS08024MB389200 Fan Parameters
Manufacturer: ADDA
Model: AS08024MB389200
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 38 mm
Rated Voltage: 24V DC
Current Rating: 0.8 A
Label Current: 1.10 A
Power Consumption: 19.2 W
Airflow: 114 CFM
Static Pressure: 41 mmH2O
Speed: 8000 RPM
Noise Level: 61.9 dB(A)
Weight: 0.212 kg
Bearing Type: Ball bearing
Termination: 3-Wire Leads
Housing Material: Thermoplastic PBT
Impeller Material: Thermoplastic PBT
Operating Temperature: -10 °C to 60 °C
Service Life: 70000 h at 40 °C
Motor Protection: Protection against reverse polarity

Application
The AS08024MB389200 fan is suitable for a wide range of cooling applications, including servers, networking devices, industrial PCs, and other electronic equipment that requires high airflow in a compact size.
