AS09224MB3891B0 ADDA 24V DC Axial Fan 92x38mm

Description

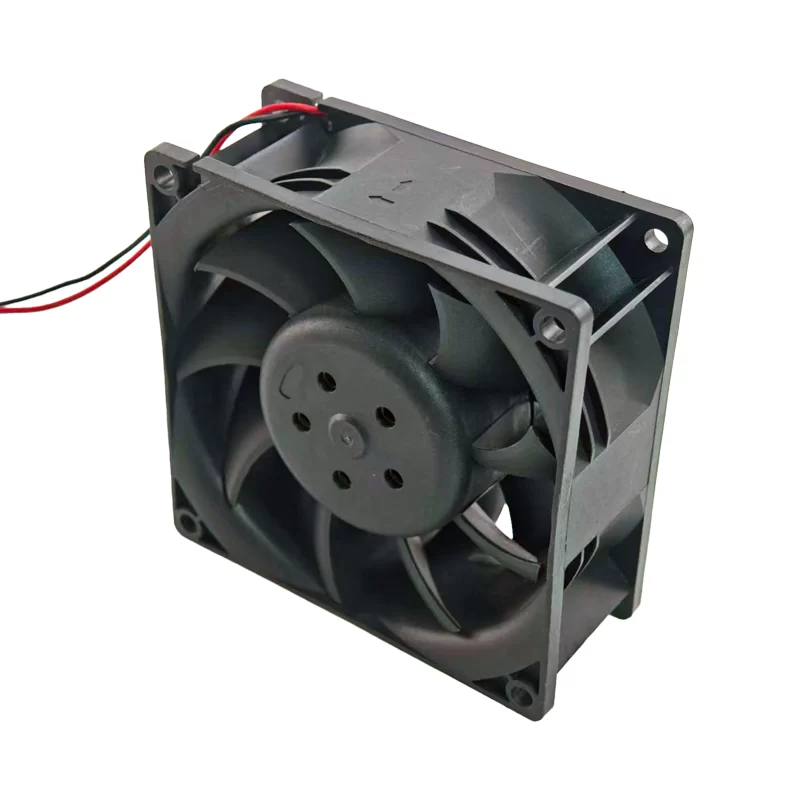

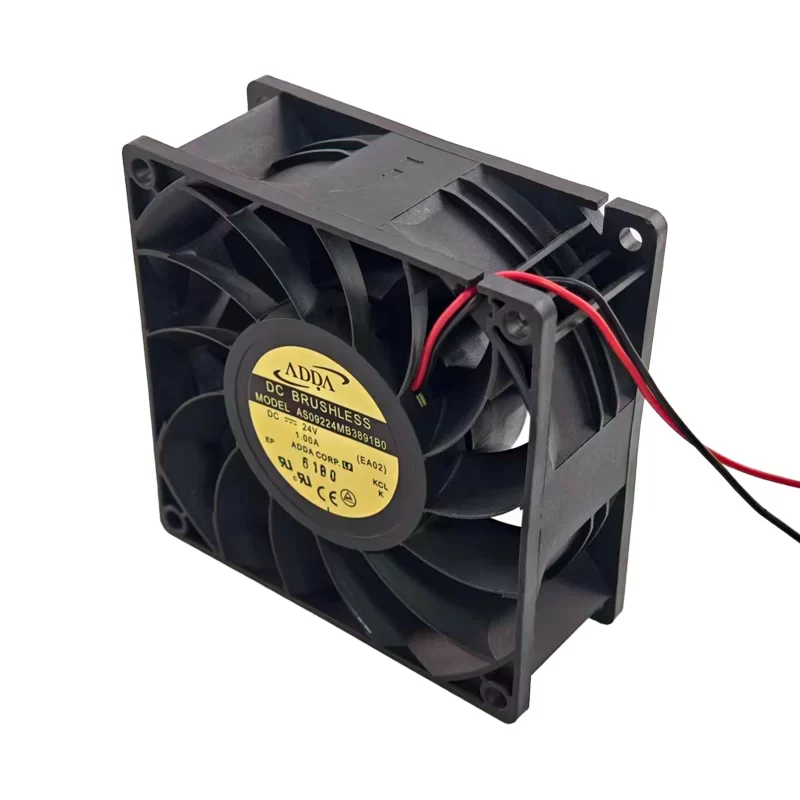

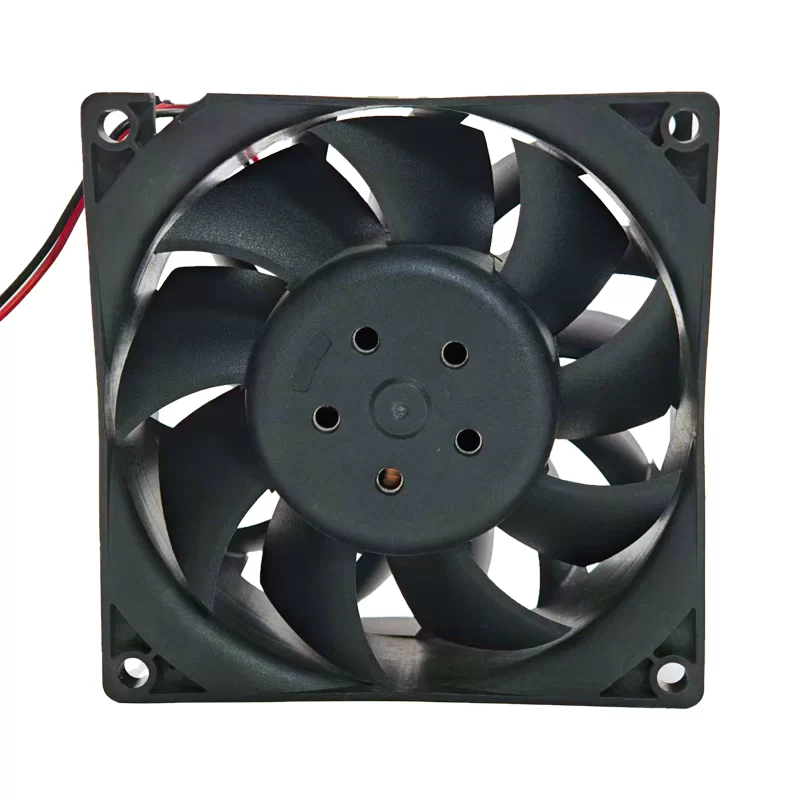

The ADDA AS09224MB3891B0 is a high-performance DC Axial Fan with dimensions of 92×92×38 mm. This robust model operates on a 24 VDC Rated Voltage with a high Rated Current of 1.00 A, resulting in a Rated Input Power of 24.0 W. It is equipped with a Ball Bearing system and features a 2-wire lead for direct power connection. The fan achieves an estimated Rated Speed of 6,500 RPM, providing an impressive Airflow of 125.0 CFM (212.4 m3/h) and an Ultra High Static Pressure of 1.00 inAq (248.8 Pa). This product is engineered for maximum cooling in systems with high thermal density and significant airflow resistance.

AS09224MB3891B0 Fan Parameters
Model: AS09224MB3891B0
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 92×92×38 mm
Motor Design: Brushless DC Motor
Bearing Type: Ball Bearing
Rated Voltage: 24 VDC
Rated Current: 1.00 A
Rated Input: 24.0 W
Rated Speed: 6,500 RPM
Airflow: 125.0 CFM (212.4 m3/h)
Static Pressure: 1.00 inAq (248.8 Pa)
Noise Level: 60.0 dB/A
Operating Voltage Range: 18.0 VDC to 26.4 VDC
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2-Wire Leads
Life Expectancy: 50,000 h (at 40 ∘C)
Safety Approval: UL, CUL, TUV, CE

Application
The AS09224MB3891B0 is a heavy-duty cooling solution typically deployed in industrial and enterprise-level equipment. Its high static pressure capability is essential for cooling densely packed servers, high-power telecom rectifiers, data center storage systems, and other applications where air must be forced through restricted spaces or heat sinks.
