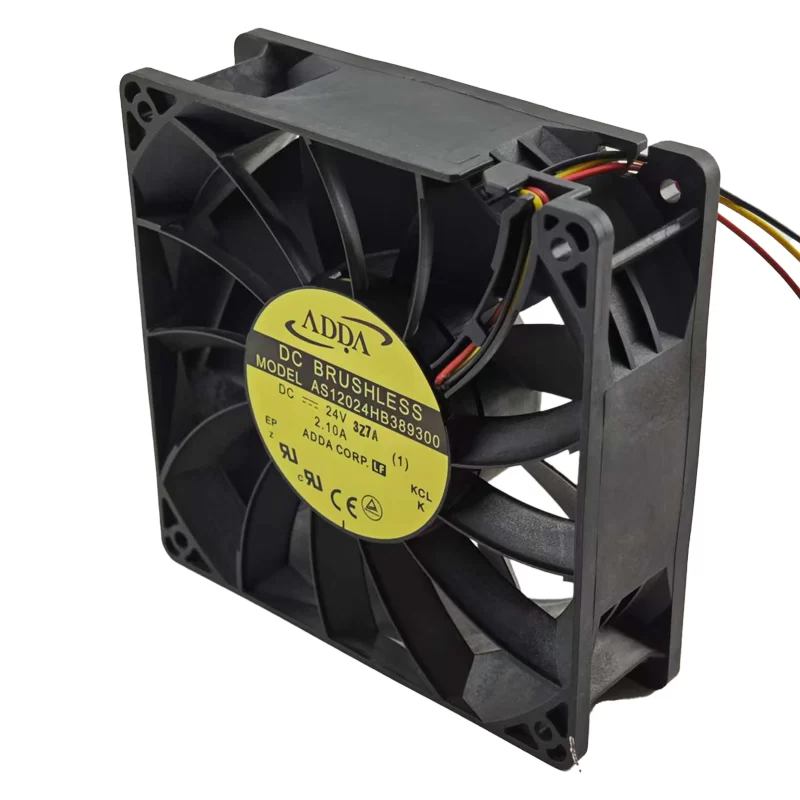

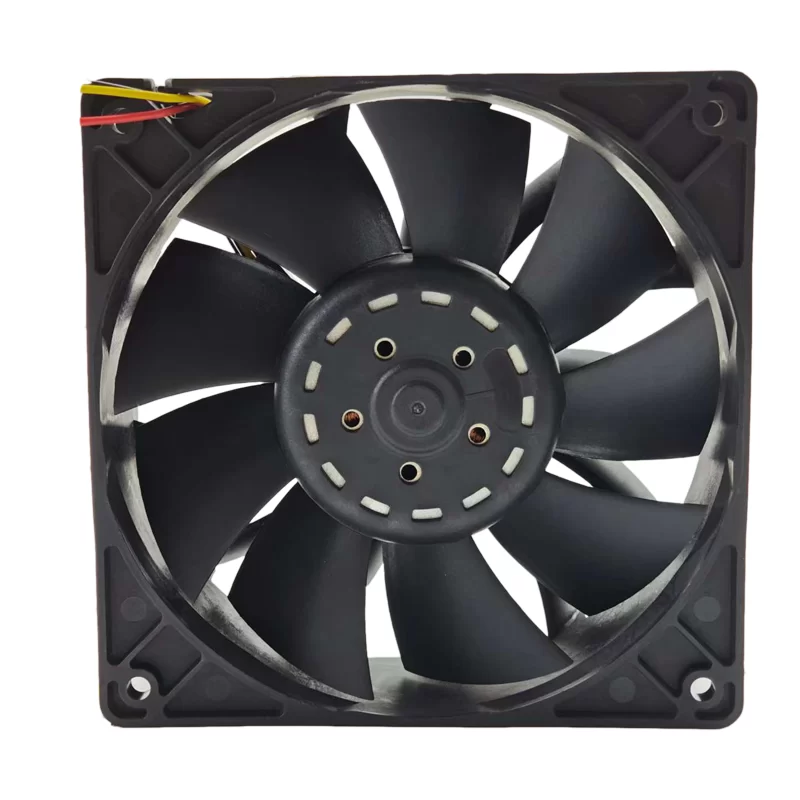

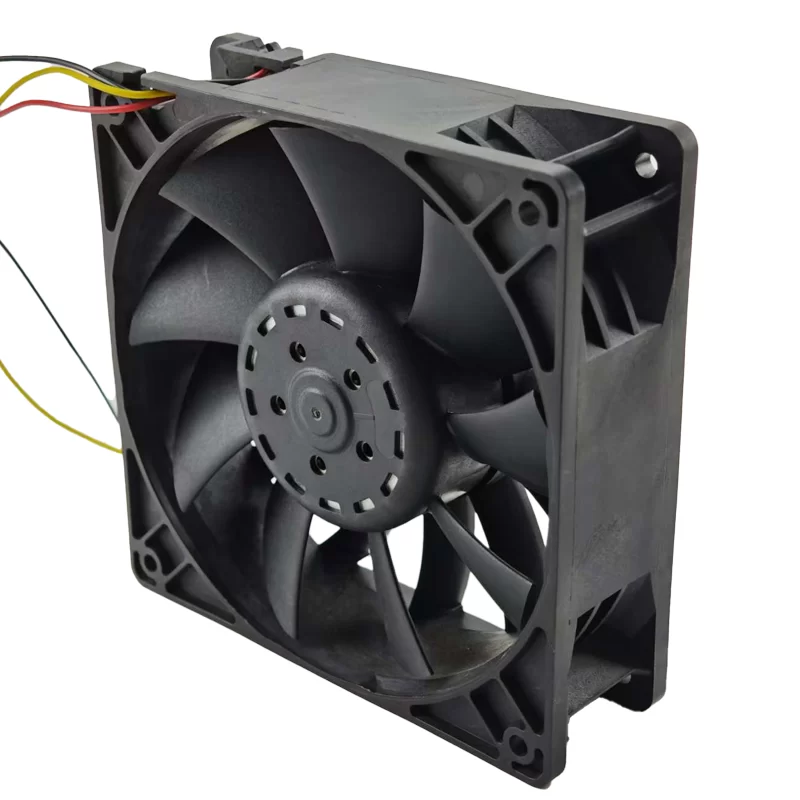

ADDA AS12024HB389300 Product SummaryThe ADDA AS12024HB389300 is an extremely high-performance 24V DC axial fan, measuring 120x120x38mm. This powerhouse fan is engineered for aggressive cooling in demanding applications where maximum airflow and static pressure are paramount. It features ball bearings for superior durability and a long operational lifespan of 70,000 hours. Drawing a significant 2.10A of current, it delivers an impressive 250.02 CFM of airflow and a very high static pressure of 1.48 In H2O at a rapid 6000 RPM. With a noise level of 65 dBA, this fan prioritizes extreme cooling capability. Its 3-wire termination provides a pulse sensor (tachometer) for real-time RPM monitoring, enhancing system control and diagnostics. This fan is an ideal choice for high-end servers, data centers, industrial equipment, inverters, and other systems requiring maximum and controllable thermal management in challenging environments.
AS12024HB389300 new original ADDA 12038 24V 2.1A inverter cooling fan
Model: AS12024HB389300
Manufacturer: ADDA Corporation
Type: DC Axial Fan
Dimensions: 120mm x 120mm x 38mm
Nominal Voltage: 24V DC
Current: 2.10A
Power Consumption: 50.4W
Speed: 6000 RPM
Airflow: 250.02 CFM
Static Pressure: 1.48 In H2O
Noise Level: 65 dBA
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Termination: 3-wire leads
Frame Material: Plastic
Blade Material: Plastic
Features: Pulse Sensor (Tachometer), Motor Protection (Stall Protection), Auto-Restart, Polarity Protection
