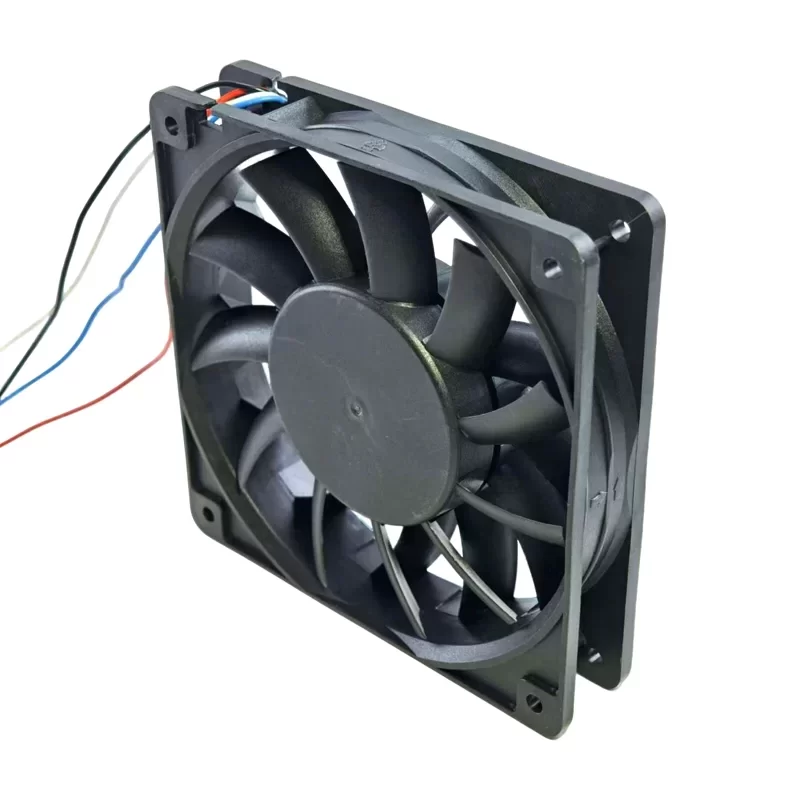

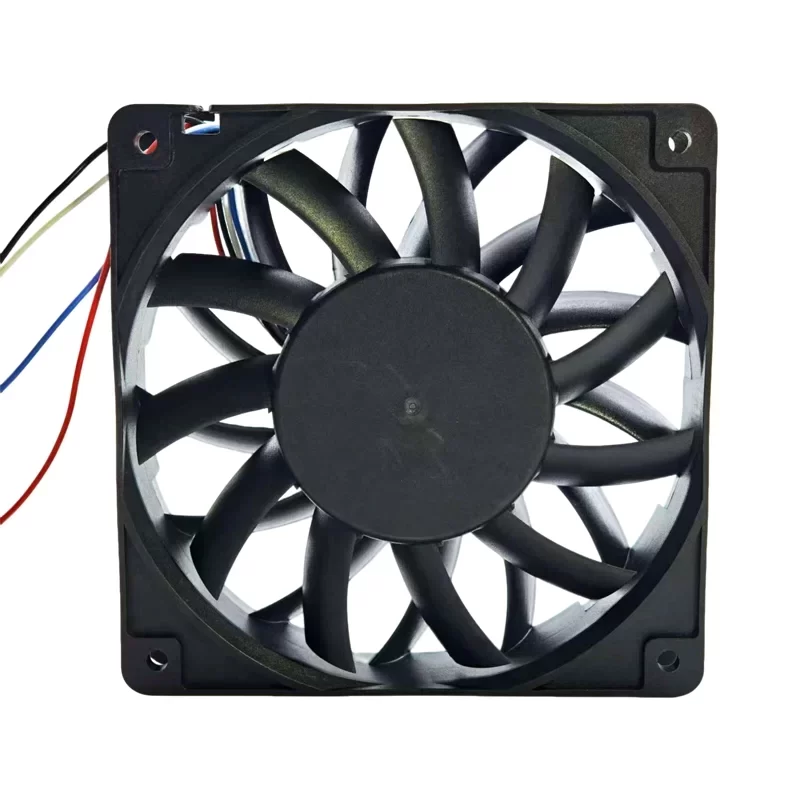

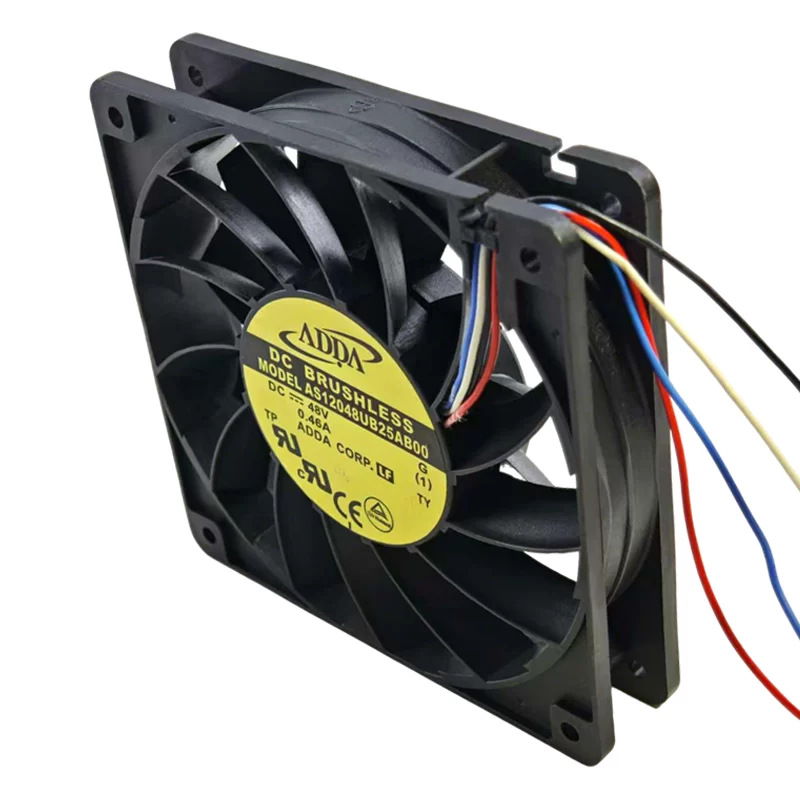

AS12048UB25AB00 ADDA 48V DC Axial Fan

Description

The ADDA AS12048UB25AB00 is a high-performance DC axial fan with dimensions of 120 x 120 x 25 mm. It operates on 48V DC, drawing 0.46 A of current and consuming 22.08 W of power. The fan provides a very high airflow of 175.895 CFM (4.977 CMM) at a speed of 4000 RPM with a noise level of 58.6 dB(A). It generates a high static pressure of 0.523 InAq (13.284 mmAq). The fan uses ball bearings for enhanced durability and features four-wire leads for signal and control. This fan is designed for demanding cooling applications where maximum performance is required.

AS12048UB25AB00 Fan Parameters
Manufacturer: ADDA Corporation
Model: AS12048UB25AB00
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 48V DC
Current Rating: 0.46 A
Power Consumption: 22.08 W
Airflow: 175.895 CFM (4.977 CMM)
Static Pressure: 0.523 InAq (13.284 mmAq)
Speed: 4000 RPM
Noise Level: 58.6 dB(A)
Bearing Type: Ball Bearing
Termination: Four Wire Leads
Housing Material: Thermoplastic (UL94V-0)
Impeller Material: Thermoplastic (UL94V-0)
Operating Temperature: -10 °C ~ 70 °C
Weight: 220 g
Application: The AS12048UB25AB00 is a powerful DC fan designed for high-performance cooling tasks. Its very high airflow and static pressure capabilities make it ideal for server cooling, data centers, and telecommunication equipment where managing heat from densely packed components is critical. It is also used in industrial machinery and other systems that require a robust and reliable fan for high-impedance applications.
