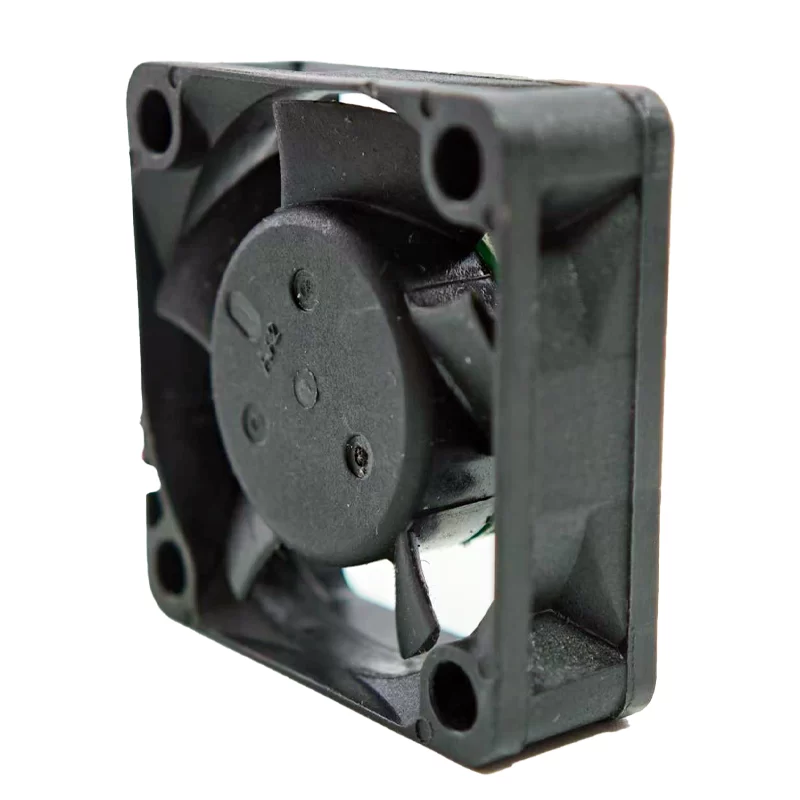

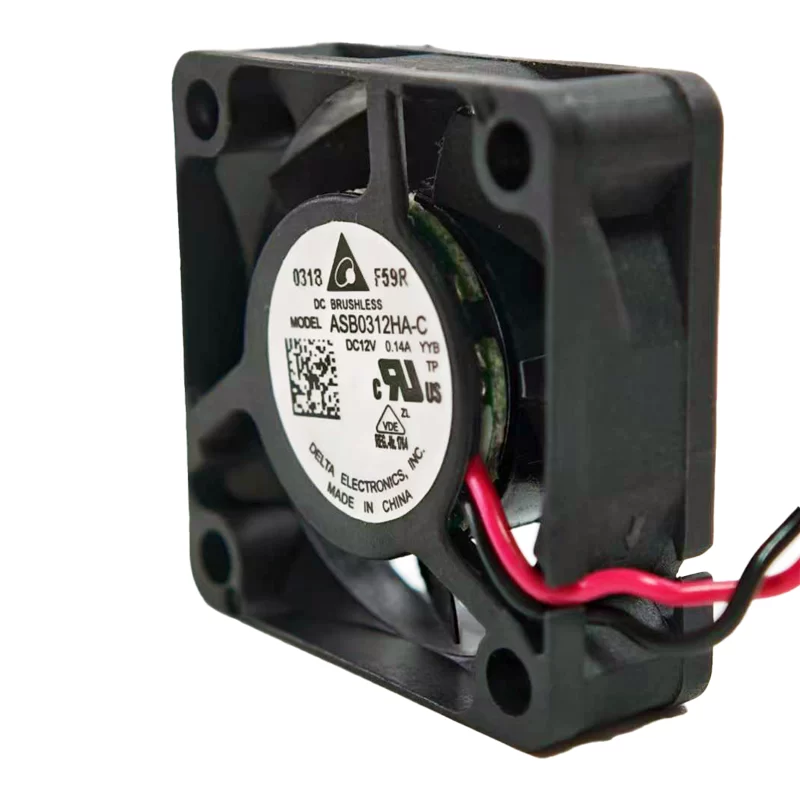

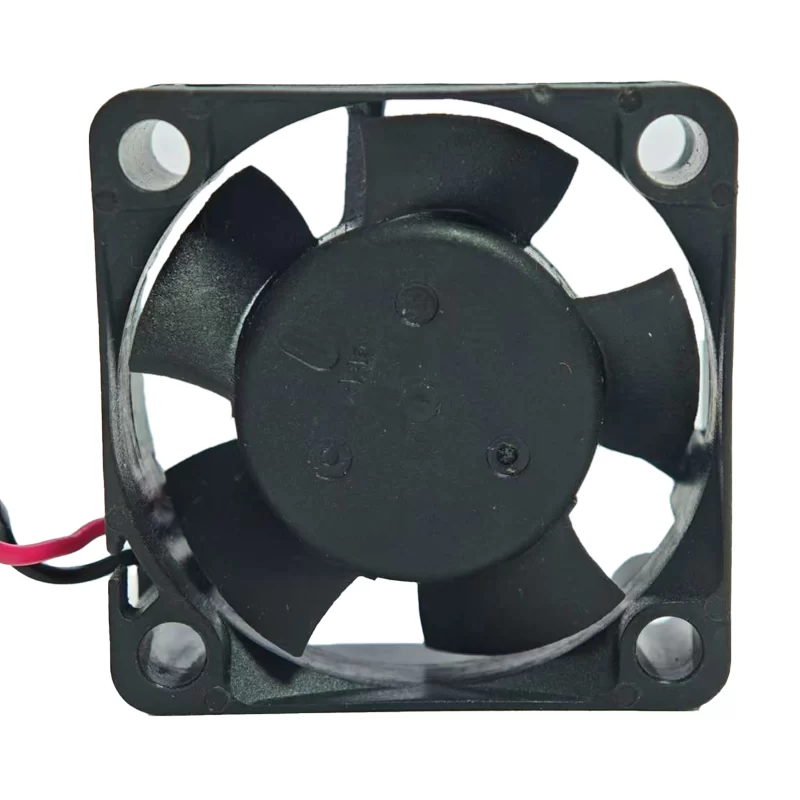

ASB0312HA-CYYB Delta 12V 0.14A 2-wire axial fan

Description

The Delta Electronics ASB0312HA-CYYB is a powerful, compact 12V DC axial fan, measuring 30mm x 30mm x 10mm, manufactured by Delta Electronics. Engineered for efficient cooling in extremely space-constrained electronic devices, it features a reliable sleeve bearing, providing an operational lifespan of 20,000 hours. Drawing 0.14A of current, it consumes 1.68W of power, operating at a rapid 13000 RPM. This fan delivers 5.5 CFM of airflow and generates 0.35 inches of H2O static pressure, all while maintaining a moderate 33.0 dBA noise level. Equipped with 2-wire leads and locked rotor protection, the Delta Electronics ASB0312HA-CYYB is an ideal choice for cooling components in miniature electronics, embedded systems, network devices, 3D printers, and other compact applications that require robust and effective thermal management in tight spaces.
Delta’s new original ASB0312HA-CYYB 3010 12V 0.14A 3CM 2-wire cooling fan

Manufacturer: Delta Electronics
Model: ASB0312HA-CYYB
Type: DC Axial Fan
Dimensions: 30mm x 30mm x 10mm
Nominal Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Current: 0.14A
Power Consumption: 1.68W
Speed: 13000 RPM
Airflow: 5.5 CFM
Static Pressure: 0.35 In H2O
Noise Level: 33.0 dBA
Bearing Type: Sleeve Bearing
Life Expectancy: 20,000 Hours (at 40°C)
Termination: 2-wire leads
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Features: Brushless DC motor, polarity protected, locked rotor protection.
