Description

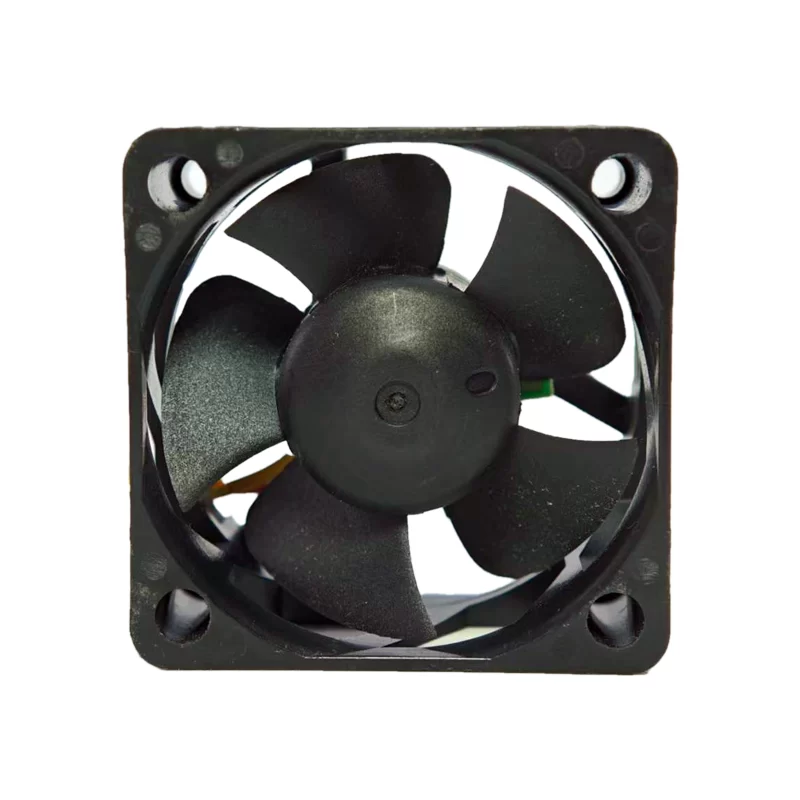

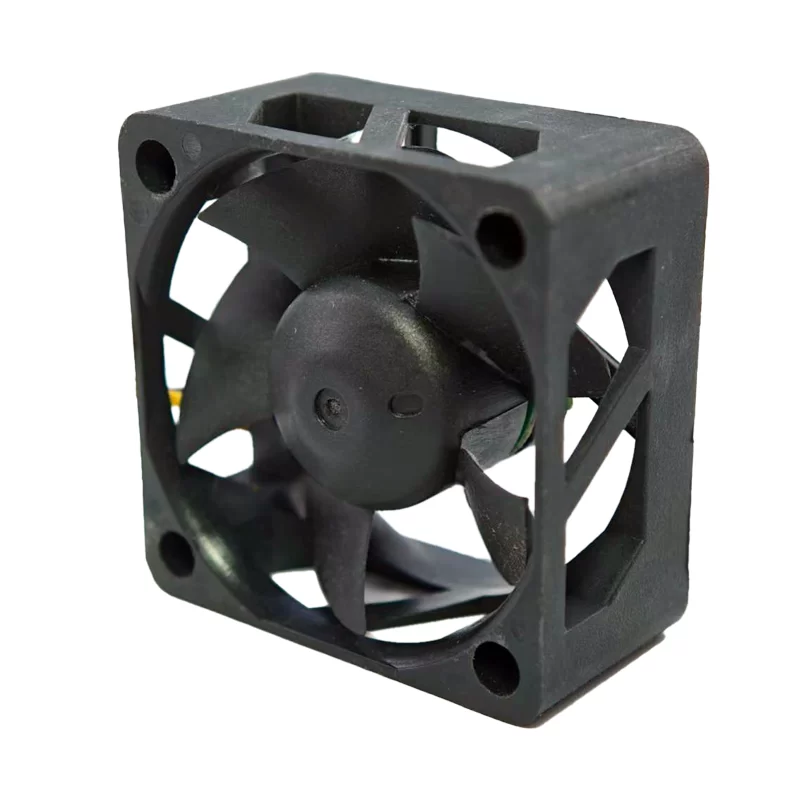

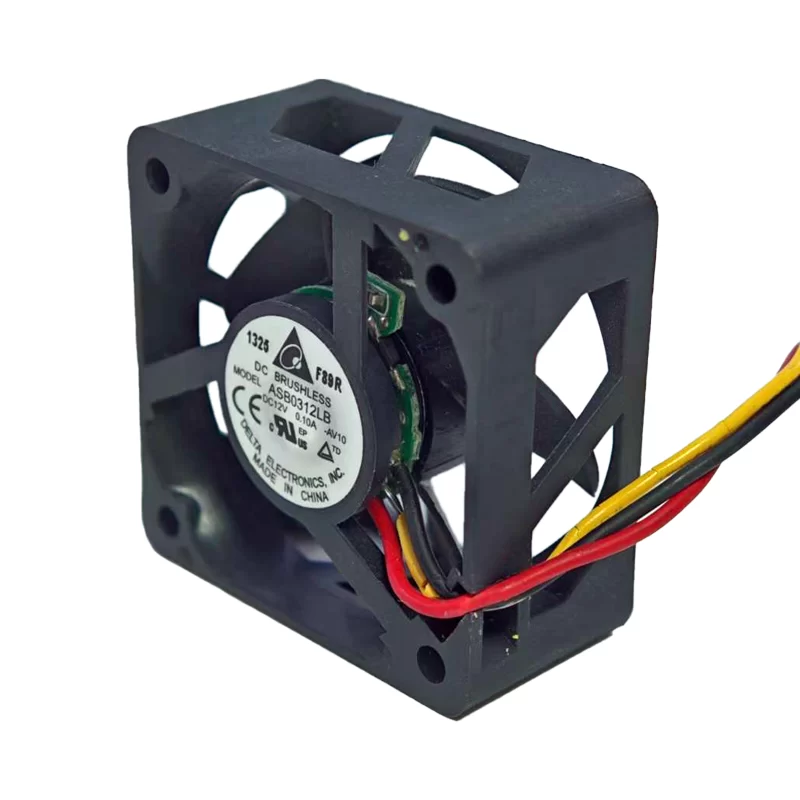

The Delta ASB0312LB-AV10 is a highly compact 12V DC axial fan measuring 30x30x15mm, designed for cooling in very space-constrained electronic devices. Drawing 0.10A, it operates with a moderate power consumption. This fan delivers a respectable airflow (approx. 3.5-4.5 CFM) at a speed of around 6000-8000 RPM, providing effective heat dissipation for its size. With a relatively low noise level (approx. 21-25 dBA), it offers a balanced solution for thermal management in applications such as mini PCs, embedded systems, networking equipment, and other small electronic assemblies where both compactness and efficient cooling are crucial. Its 3-pin connector allows for easy integration into many systems.
ASB0312LB-AV10 Delta brand new original authentic ASB0312LB 12V 0.10A 3015 silent cooling fan
Manufacturer: Delta Electronics
Model: ASB0312LB-AV10
Type: DC Axial Fan
Dimensions: 30mm x 30mm x 15mm
Nominal Voltage: 12V DC
Current: 0.10A
Power Consumption: 1.2W
Speed: 6000 – 8000 RPM
Airflow: 3.5 – 4.5 CFM
Noise Level: 21 – 25 dBA
Bearing Type: Sleeve Bearing
Life Expectancy: 20,000 to 30,000 hours
Termination: 3-pin connector
Frame and Blade Material: Plastic
Features: Auto-Restart, Locked Rotor Protection
