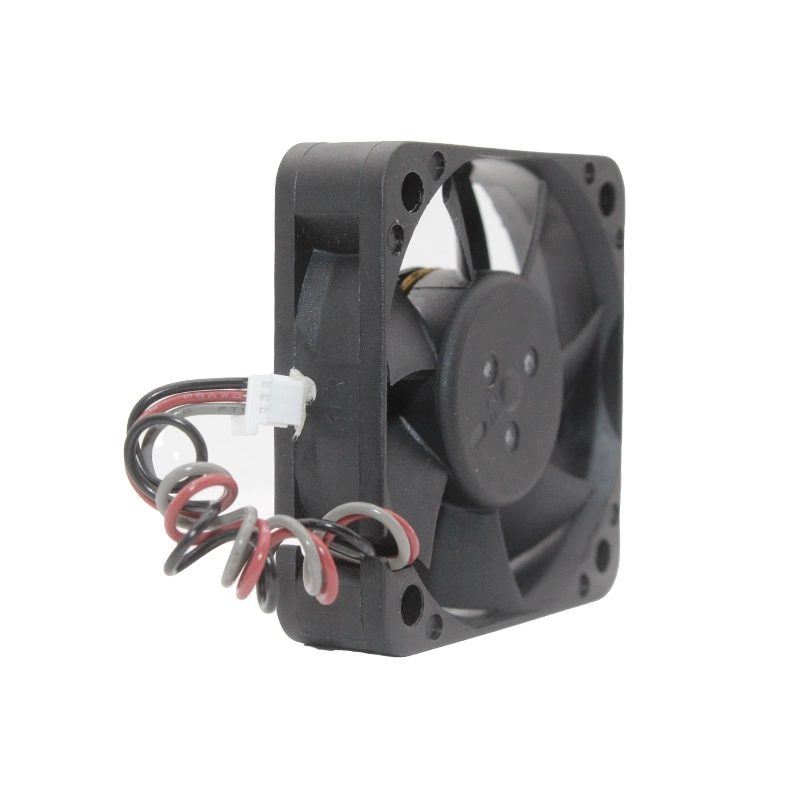

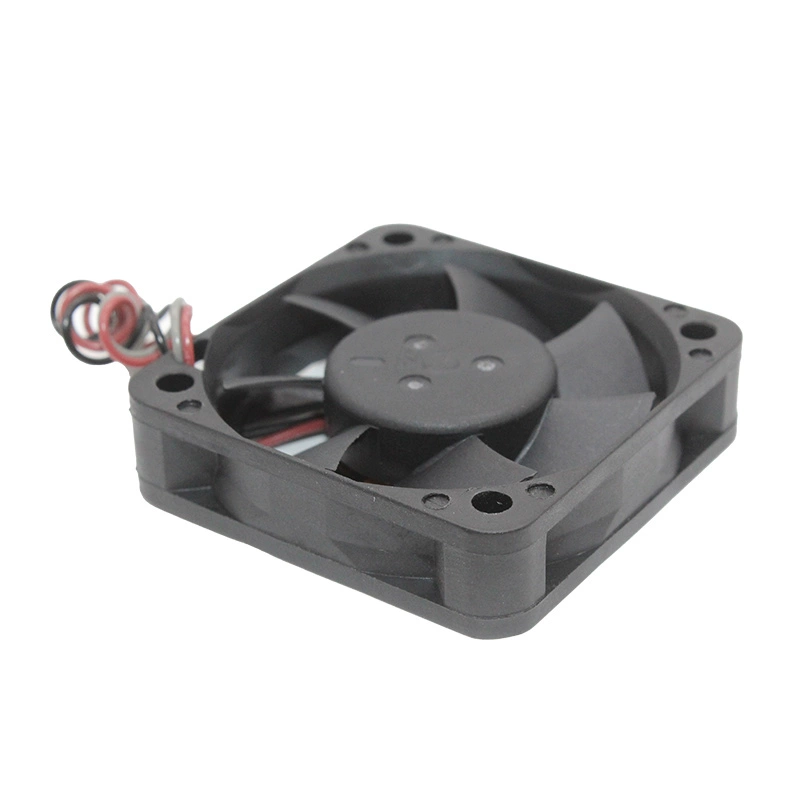

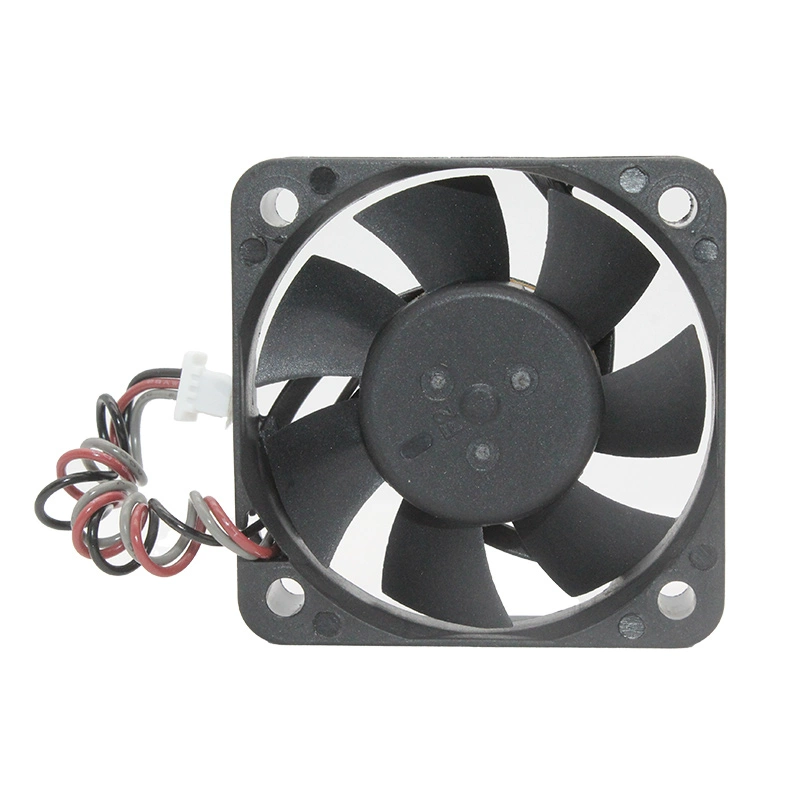

ASB0412HA-AX02 Delta 12V 3-wire 0.1A cooling fan

Description

The Delta ASB0412HA-AX02 is a compact and efficient DC cooling fan from Delta Electronics. Operating at 12V DC with a low current draw of 0.10A, it has a power rating of 1.2W. Measuring 40mm x 40mm x 10mm, this fan is designed for use in space-constrained applications. It achieves a speed of 6,000 RPM, providing 6.9 CFM of airflow and a static pressure of 3.49 mmH2O, all while maintaining a quiet operation at 26 dBA. Featuring a durable hydraulic bearing and typically equipped with a 2 or 3-wire connector, the ASB0412HA-AX02 offers a reliable life expectancy of 40,000 hours at 40°C, making it suitable for cooling small electronic components in various devices where low noise and a compact form factor are critical.
ASB0412HA-AX02 Delta fan double ball 4010 12V three-wire speed measurement 0.1A north-south bridge cooling fan

Manufacturer: Delta Electronics
Model Number: ASB0412HA-AX02
Type: DC Cooling Fan
Rated Voltage: 12V DC
Rated Current: 0.10A
Rated Power: 1.2W
Speed: 6,000 RPM
Airflow: 6.9 CFM
Static Pressure: 0.140 inH2O (3.49 mmH2O)
Noise Level: 26 dBA
Dimensions: 40mm x 40mm x 10mm
Connector: 3-wire
Bearing Type: Hydraulic Bearing (also referred to as Hydro Dynamic Bearing)
Life Expectancy: 40,000 hours at 40°C
