Description

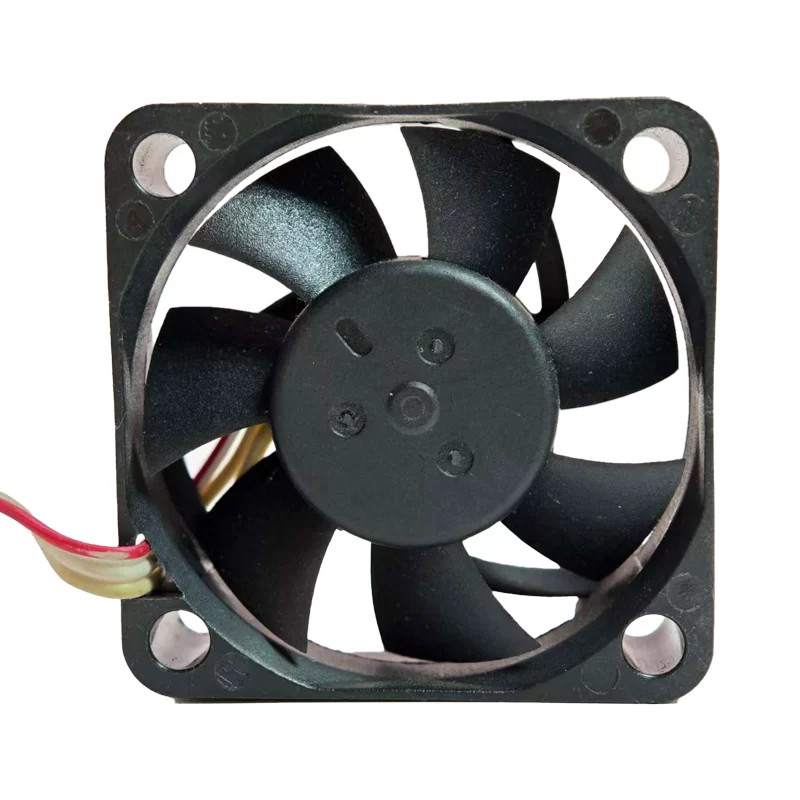

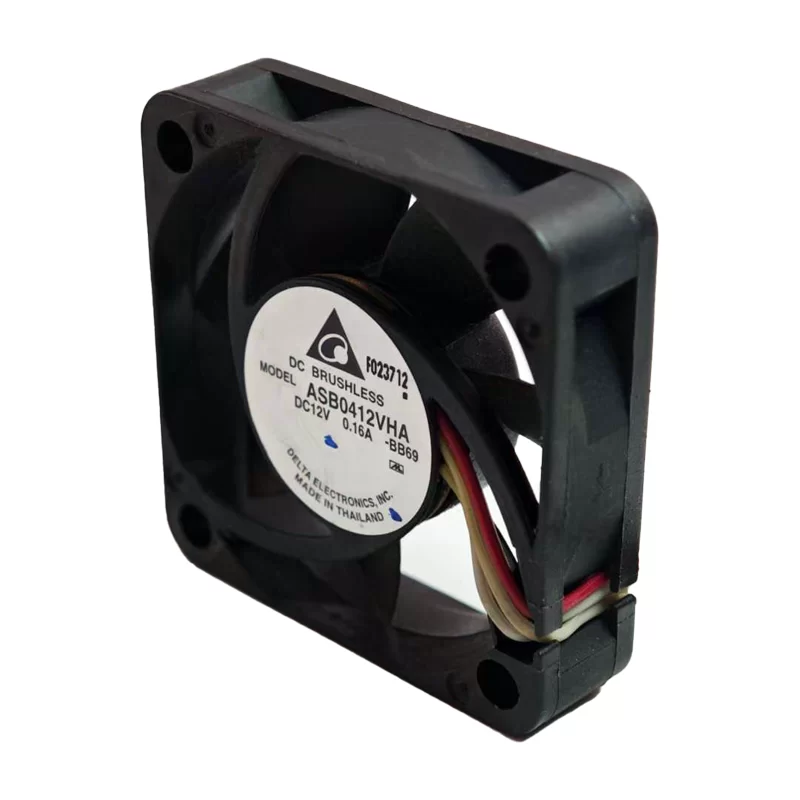

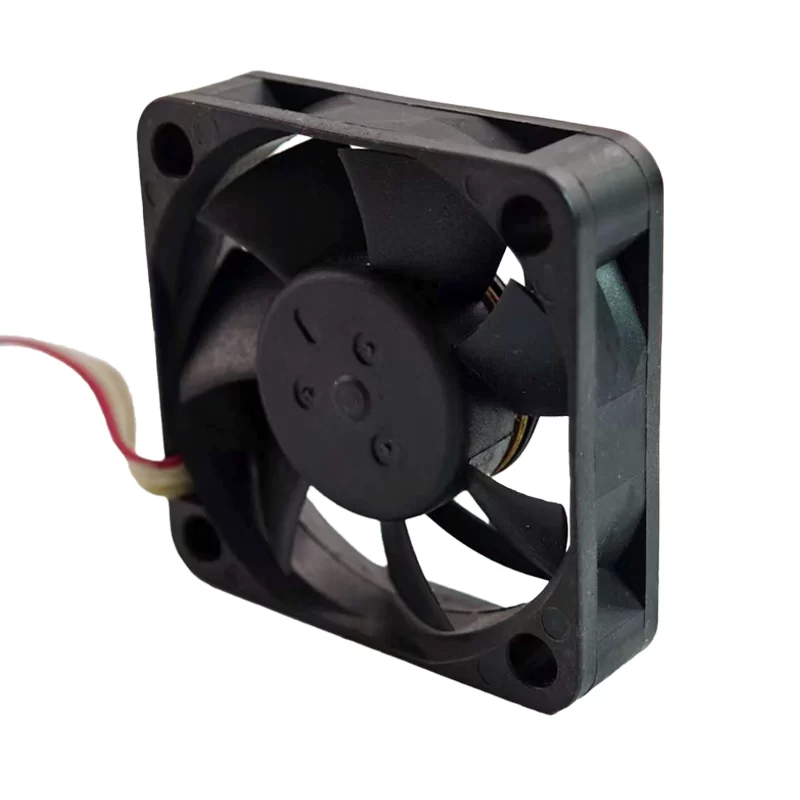

The Delta ASB0412VHA-BB69 is a compact 12V DC axial cooling fan. Measuring 40mm x 40mm x 10mm, this fan from Delta Electronics is designed for efficient cooling in space-constrained applications. It operates at a rated voltage of 12V DC,drawing 0.16A of current for a power consumption of 1.92W. It comes with 3-wire leads and typically includes a locked rotor sensor. It is designed for operation in temperatures from -10°C to +70°C.
Model Number: ASB0412VHA-BB69
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 10mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Rated Current: 0.16A
Rated Power: 1.92W
Connector: 3-Wire Leads
Frame Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10°C to +70°C
Weight: 13.5g
Features: Locked Rotor Sensor
Approvals/Certifications: RoHS Compliant
