Description

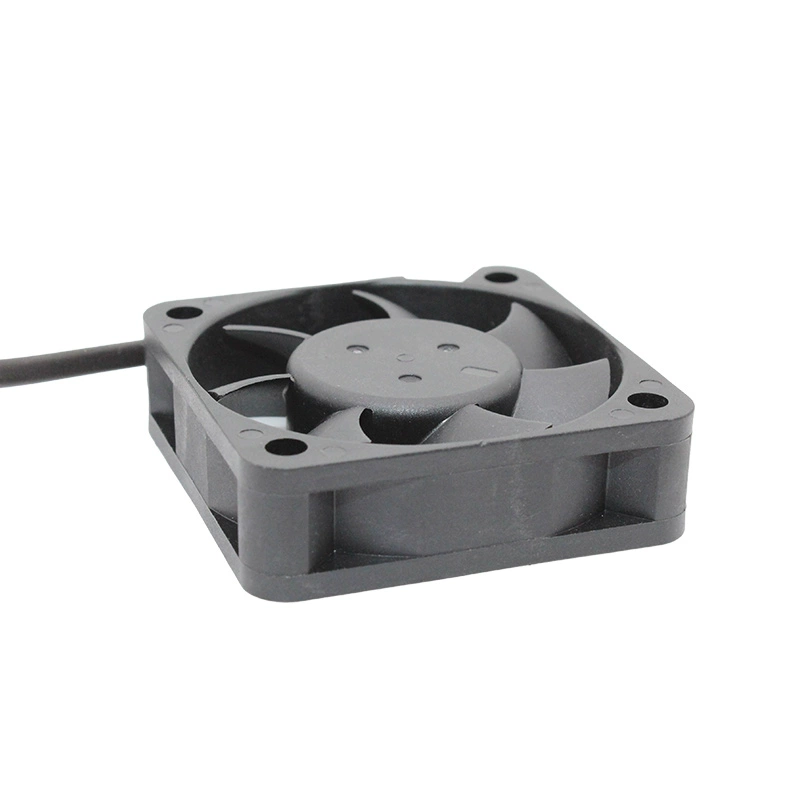

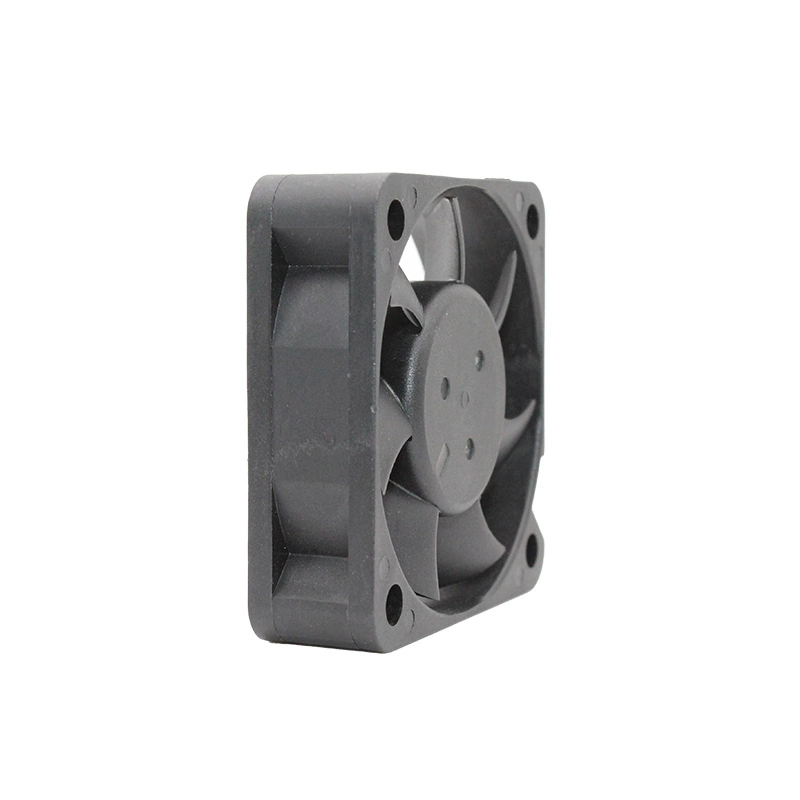

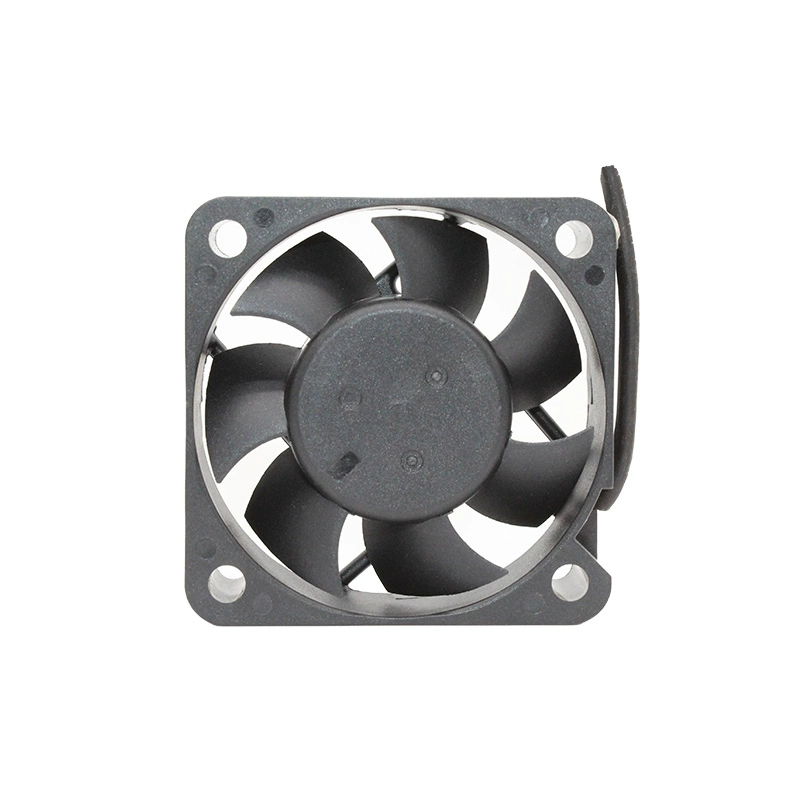

The Delta AUB0524HHB-BV02 is a compact 24V DC axial cooling fan from Delta Electronics, Inc., measuring 50mm x 50mm x 15mm. Operating at a rated current of 0.12A (2.88W), this fan is engineered for efficient and high-performance thermal management in various electronic devices where space is limited, such as network equipment, small servers, or industrial control units. It achieves a rotational speed of 6400 RPM, delivering 16.2 CFM of airflow with a noise level of 36.0 dBA. Equipped with a Superflo bearing system, it ensures a long operational life. The fan utilizes 2-wire leads for power connection, making it a reliable choice for consistent cooling in compact applications.
Model Number: AUB0524HHB-BV02
Manufacturer: Delta Electronics, Inc.
Type: DC Axial Cooling Fan
Dimensions: 50mm x 50mm x 15mm
Rated Voltage: 24V DC
Operating Voltage: 14V to 27.6V DC
Rated Current: 0.12A
Rated Power: 2.88W
Speed: 6400 RPM
Airflow: 16.2 CFM / 0.46 m³/min
Static Pressure: 0.32 inch-H2O / 79.7 Pa
Noise Level: 36.0 dBA
Connector: 2-Wire Leads
Bearing Type: Superflo
Life Expectancy: Typically 50,000 to 70,000 hours at 40°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
