Description

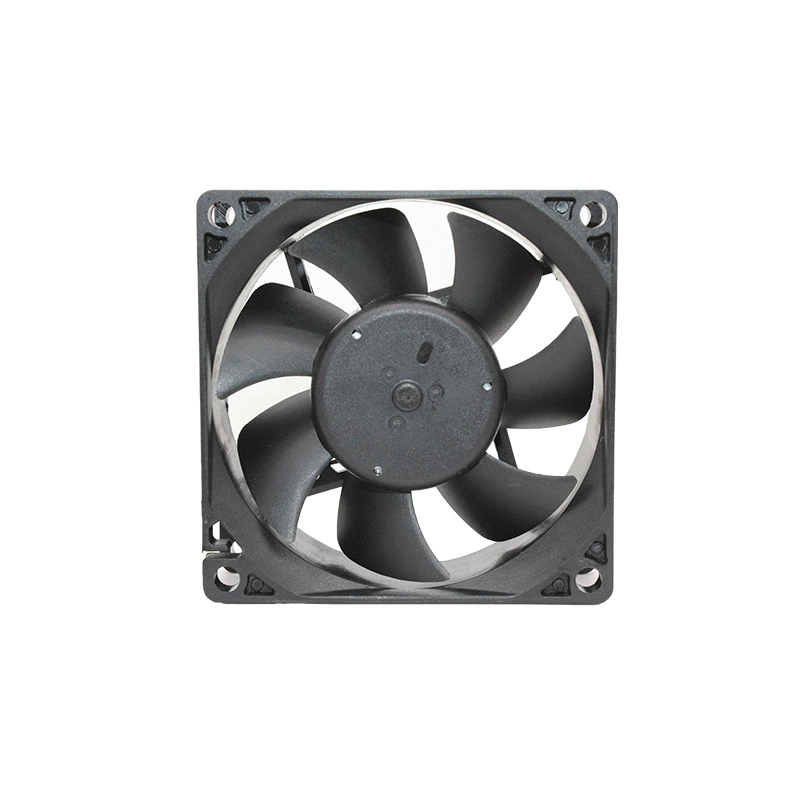

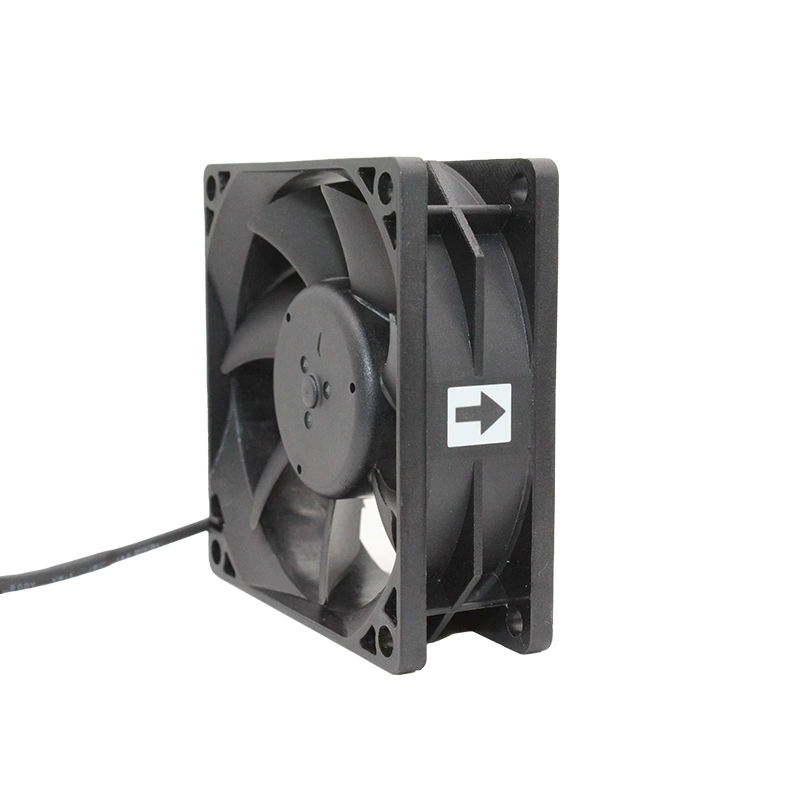

The Delta AUB0712HH-CA01 is a high-performance 12V DC axial cooling fan from Delta Electronics, Inc., measuring 70mm x 70mm x 25mm. Operating at a rated current of 0.40A (4.8W), this fan is engineered to provide robust airflow for various electronic cooling applications. It achieves a speed of 5000 RPM, delivering 42 CFM of airflow and a static pressure of 0.35 inch-H2O, while producing a noise level of 44.5 dBA. Equipped with a durable Sleeve Bearing, it ensures a long operational life of 50,000 hours at 40°C and can operate in temperatures up to 85°C. The fan utilizes 3-wire leads, providing a locked rotor sensor for status monitoring and a speed sensor for real-time RPM feedback, along with auto-restart and polarity protection, making it a reliable solution for cooling systems requiring enhanced performance and comprehensive monitoring.
Model Number: AUB0712HH-CA01
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan
Dimensions: 70mm x 70mm x 25mm
Rated Voltage: 12V DC
Rated Current: 0.40A
Rated Power: 4.8W
Speed: 5000 RPM
Airflow: 42 CFM / 1.19 m³/min
Static Pressure: 0.35 inch-H2O / 87.2 Pa
Noise Level: 44.5 dBA
Connector: 3-Wire Leads
Bearing Type: Sleeve Bearing
Life Expectancy: 50,000 hours at 40°C
Operating Temperature: -10°C to 85°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Locked Rotor Sensor, Speed Sensor, Auto Restart, Polarity Protection
