Description

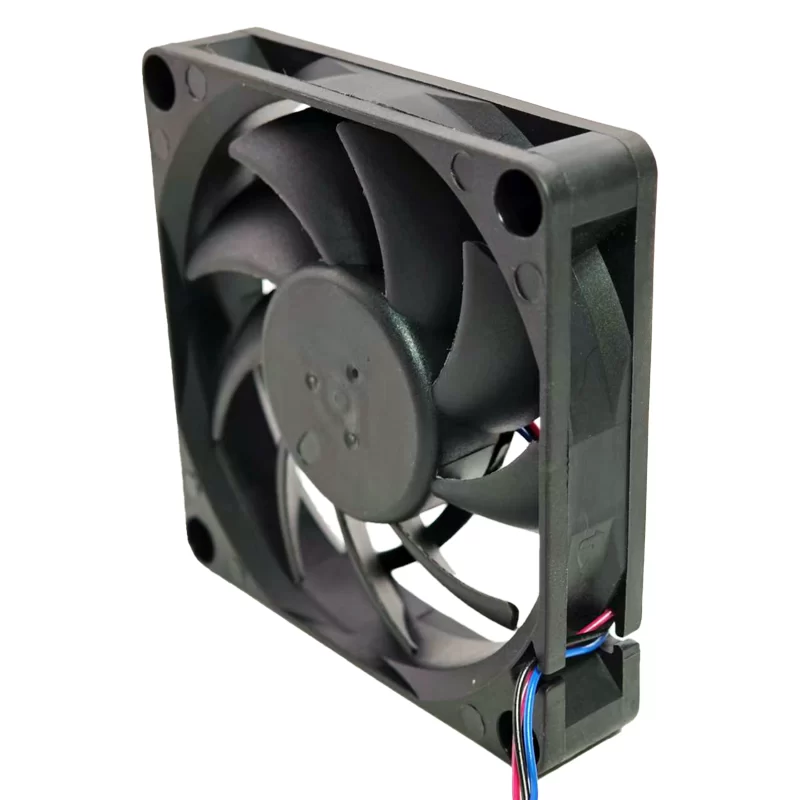

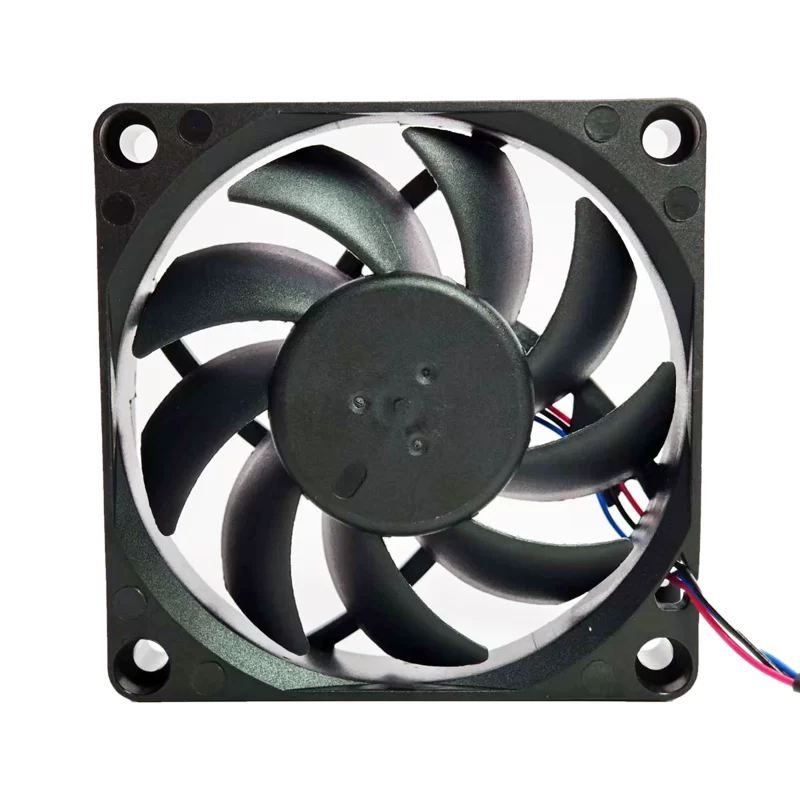

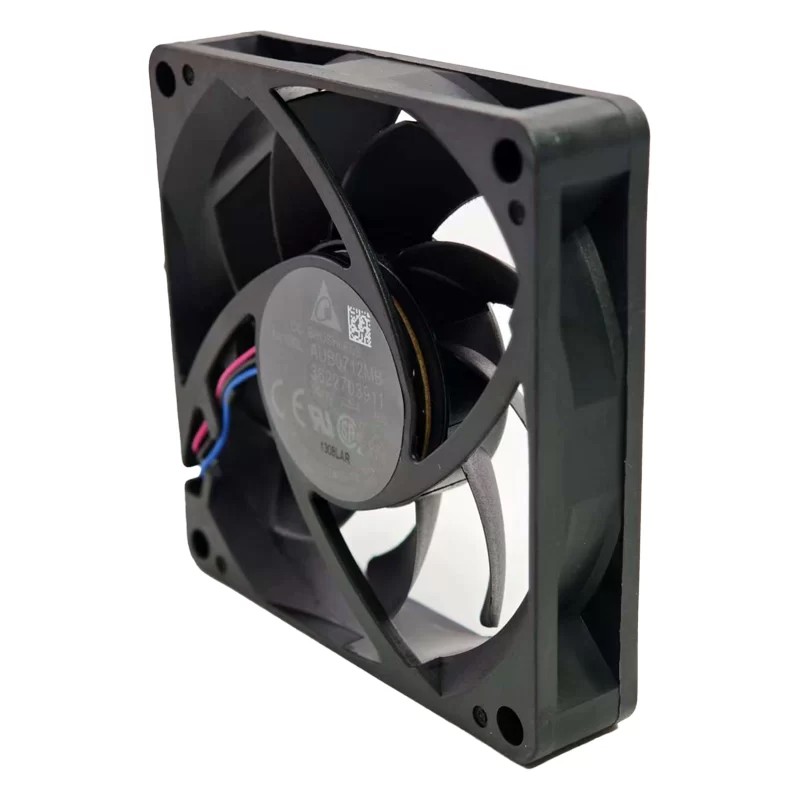

The Delta AUB0712MB-R00 is a reliable 12V DC axial cooling fan. Measuring 70mm x 70mm x 25mm, this fan from Delta Electronics is designed for general-purpose cooling in various electronic devices, PCs, and industrial equipment where increased airflow and static pressure are needed. It operates at a rated voltage of 12V DC (operating range 6.0V to 13.2V DC), drawing 0.24A of current for a power consumption of 2.88W. It achieves a rotational speed of 3600 RPM, delivering an airflow of 34.00 CFM and a static pressure of 0.205 inch-H2O. Its noise level is 34.0 dBA. Featuring durable ball bearings and a lifespan of 50,000 hours at 40°C, it comes with 3-wire leads for power, ground, and tachometer output, along with auto-restart and polarity protection. It is designed for operation in temperatures from -10°C to +60°C.
Model Number: AUB0712MB-R00
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan
Dimensions: 70mm x 70mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.2V DC
Rated Current: 0.24A
Rated Power: 2.88W
Speed: 3600 RPM
Airflow: 34.00 CFM (0.963 m³/min)
Static Pressure: 0.205 inch-H2O (51.1 Pa)
Noise Level: 34.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 Hours @ 40°C
Frame Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10°C to +60°C
Weight: 75g
Features: Auto Restart, Polarity Protection, Tachometer Output
Approvals/Certifications: UL, cUL, TUV, CE, RoHS Compliant
