Description

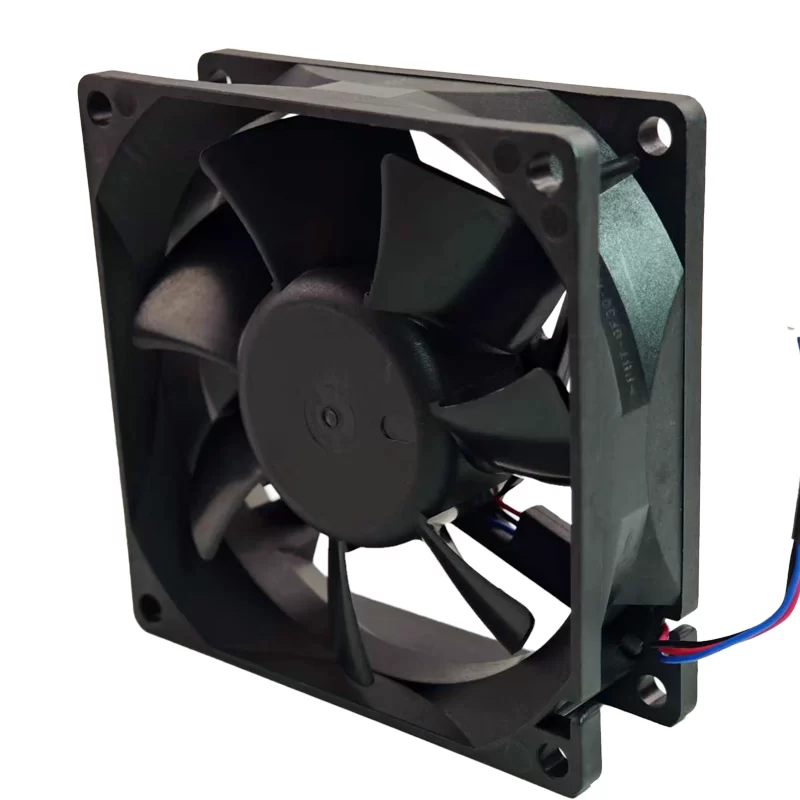

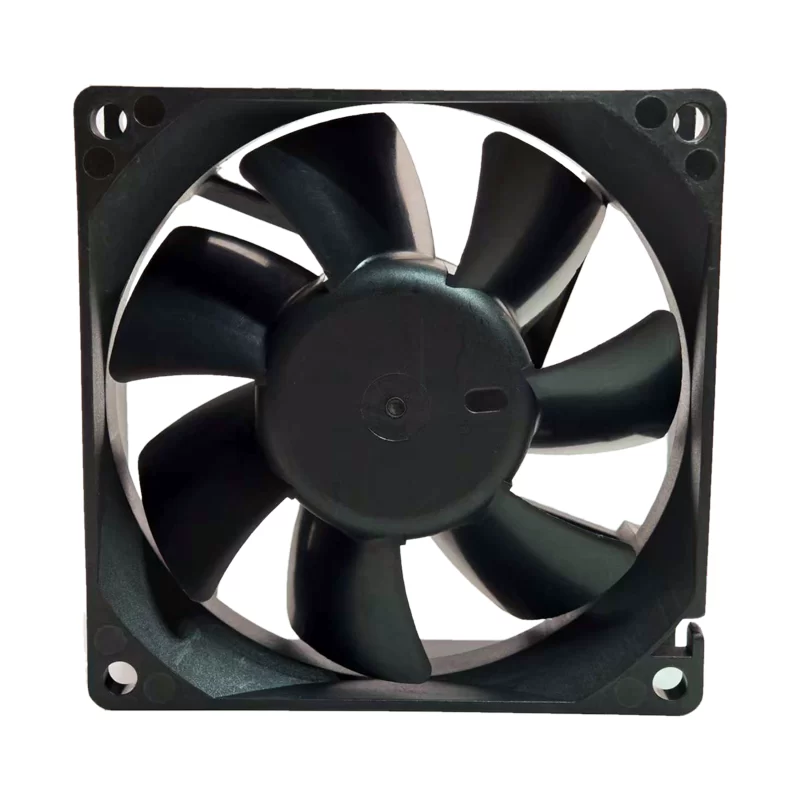

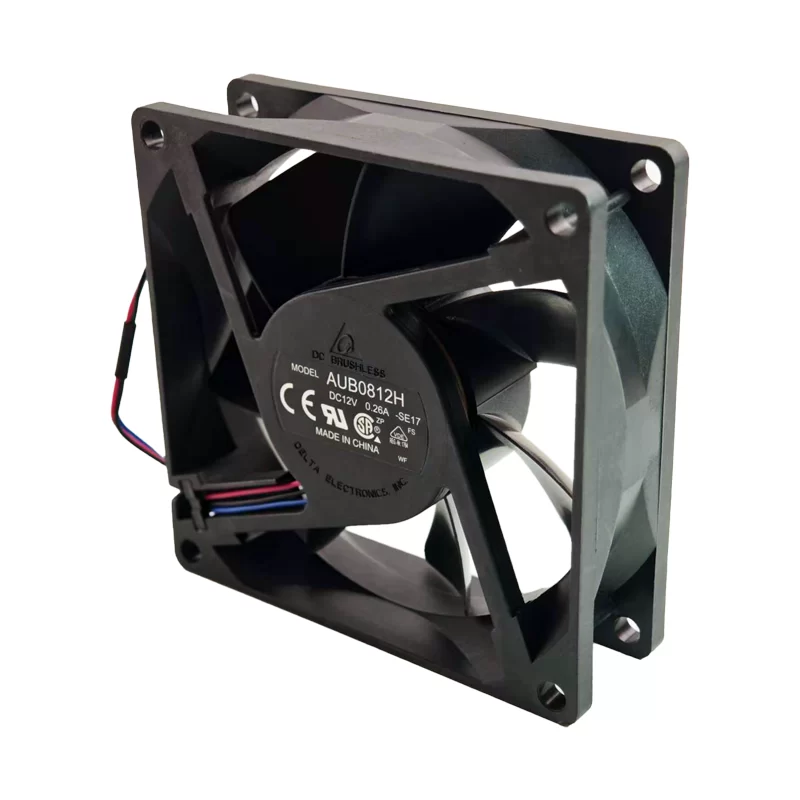

The Delta AUB0812H-SE17 is a high-speed 12V DC axial cooling fan measuring 80mm x 80mm x 25mm. Operating at a rated current of 0.26A (3.12W), this fan is engineered for effective thermal management in electronic equipment. It achieves a rotational speed of 3600 RPM, delivering 46.7 CFM of airflow with a static pressure of 0.186 inch-H2O (46.3 Pa). Its noise output is 38.0 dBA, providing a good balance between powerful cooling and audible presence. The fan is equipped with ball bearings for a long operational life. Connectivity is typically via 3-wire leads, which include a pulse sensor for speed monitoring. Integrated features also include auto-restart and polarity protection, ensuring dependable performance.
Model Number: AUB0812H-SE17
Manufacturer: Delta Electronics, Inc.
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 12V DC
Operating Voltage: 4.0V to 13.8V DC
Rated Current: 0.26A
Rated Power: 3.12W
Speed: 3600 RPM
Airflow: 46.7 CFM / 1.32 m³/min
Static Pressure: 0.186 inch-H2O / 46.3 Pa
Noise Level: 38.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 to 70,000 hours at 40°C
Operating Temperature: -10°C to 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Pulse Sensor (Tachometer), Auto Restart, Polarity Protection
