Description

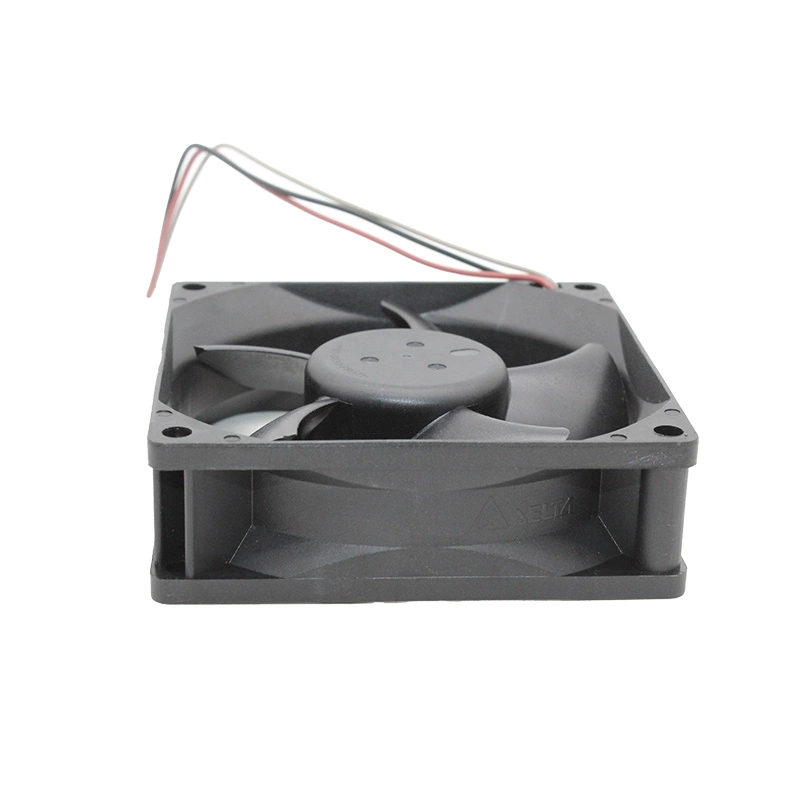

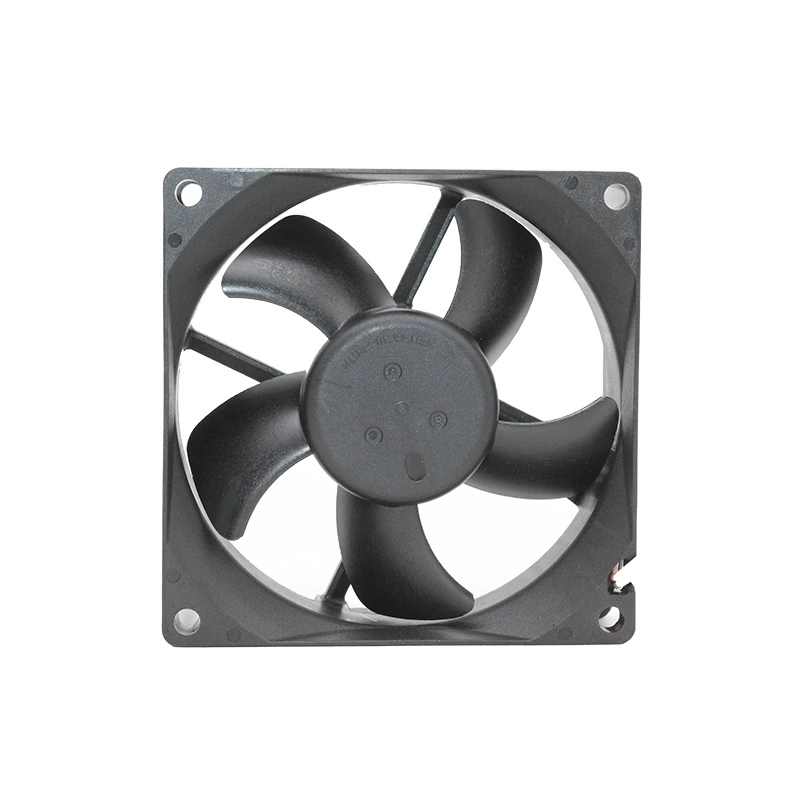

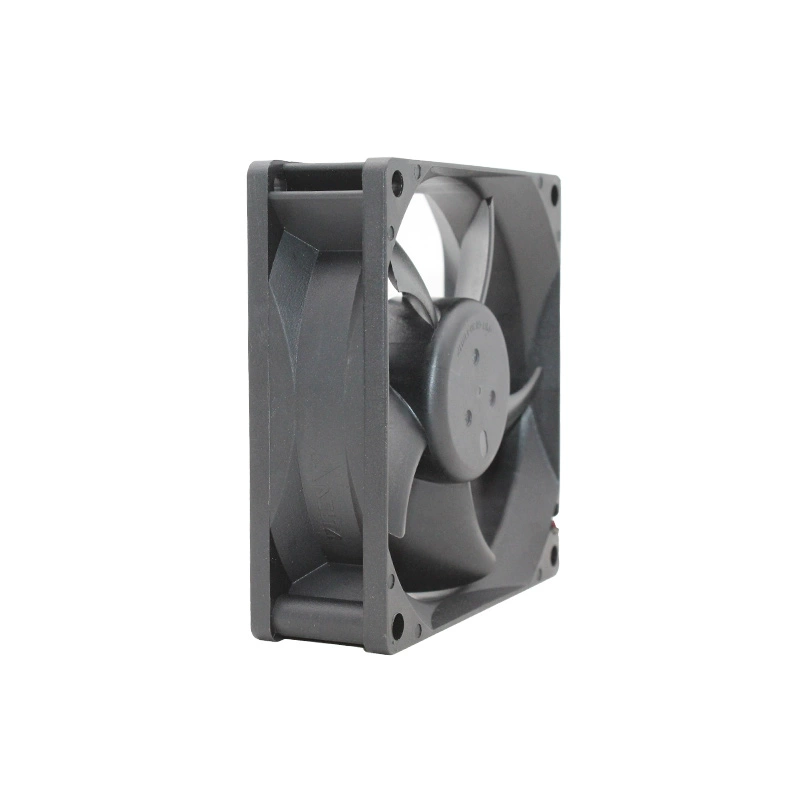

The Delta AUB0824VH-DT58 is a high-performance 24V DC axial cooling fan from Delta Electronics, Inc., measuring 80mm x 80mm x 25mm. Operating at a rated current of 0.21A (5.04W), this fan is engineered to provide efficient airflow for various electronic cooling applications. It achieves a speed of 3600 RPM, delivering 42.0 CFM of airflow and a static pressure of 0.217 inch-H2O, while maintaining a noise level of 38.0 dBA. Equipped with Delta’s durable Superflo Bearing, it ensures a long operational life of 50,000 hours at 40°C. The fan utilizes 3-wire leads, providing both PWM control for precise speed adjustment and a speed sensor for real-time monitoring of fan status, along with auto-restart and polarity protection, making it a reliable and controllable solution for robust cooling needs.
Model Number: AUB0824VH-DT58
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 24V DC
Rated Current: 0.21A
Rated Power: 5.04W
Speed: 3600 RPM
Airflow: 42.0 CFM / 1.19 m³/min
Static Pressure: 0.217 inch-H2O / 54.2 Pa
Noise Level: 38.0 dBA
Connector: 3-Wire Leads
Bearing Type: Superflo Bearing
Life Expectancy: 50,000 hours at 40°C
Operating Temperature: -10°C to 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: PWM Control, Speed Sensor, Auto Restart, Polarity Protection
