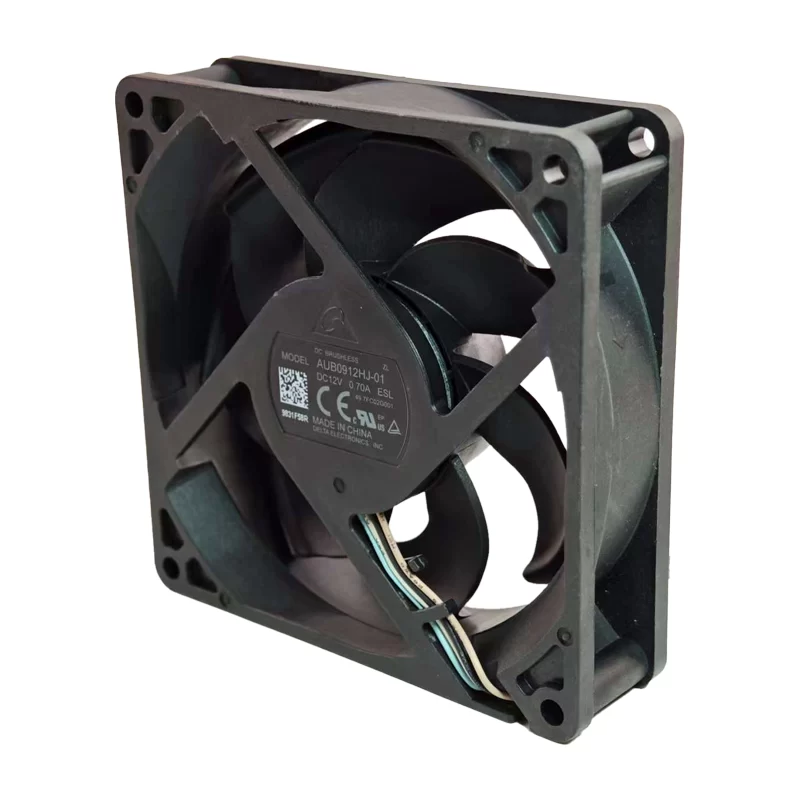

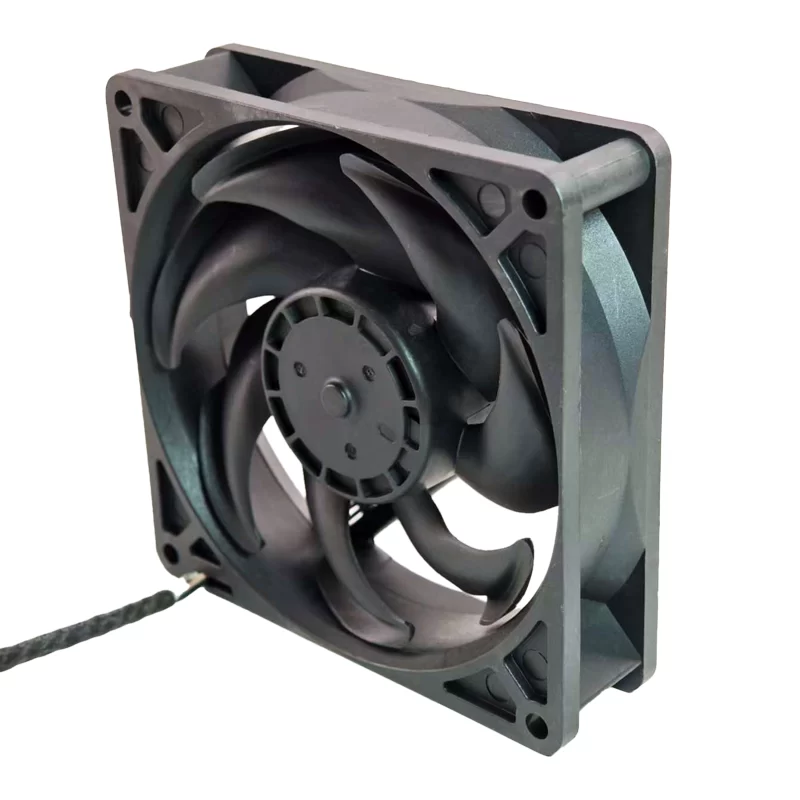

AUB0912HJ-01ESL Delta 12V 0.70A DC axial fan

Description

The Delta AUB0912HJ-01ESL is a powerful 12V DC axial cooling fan measuring 92mm x 92mm x 25mm. Operating at a rated current of 0.70A (8.4W), this fan is engineered for effective thermal management in demanding electronic equipment. It achieves a high rotational speed of 4000 RPM, delivering 72.0 CFM of airflow with a static pressure of 0.315 inch-H2O (78.4 Pa). Its noise output is 42.0 dBA, providing a balance between powerful cooling and audible presence. The fan is equipped with ball bearings for a long operational life. Connectivity is typically via 4-wire leads, which include a pulse sensor for speed monitoring and a PWM input for precise speed control. Integrated features also include auto-restart and polarity protection, ensuring dependable and controlled performance.

Model Number: AUB0912HJ-01ESL
Manufacturer: Delta Electronics, Inc.
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 12V DC
Operating Voltage: 4.0V to 13.8V DC (typical range for Delta 12V fans)
Rated Current: 0.70A
Rated Power: 8.4W
Speed: 4000 RPM
Airflow: 72.0 CFM / 2.04 m³/min
Static Pressure: 0.315 inch-H2O / 78.4 Pa
Noise Level: 42.0 dBA
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 to 70,000 hours at 40°C
Operating Temperature: -10°C to 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: PWM Control, Pulse Sensor (Tachometer), Auto Restart, Polarity Protection
