Description

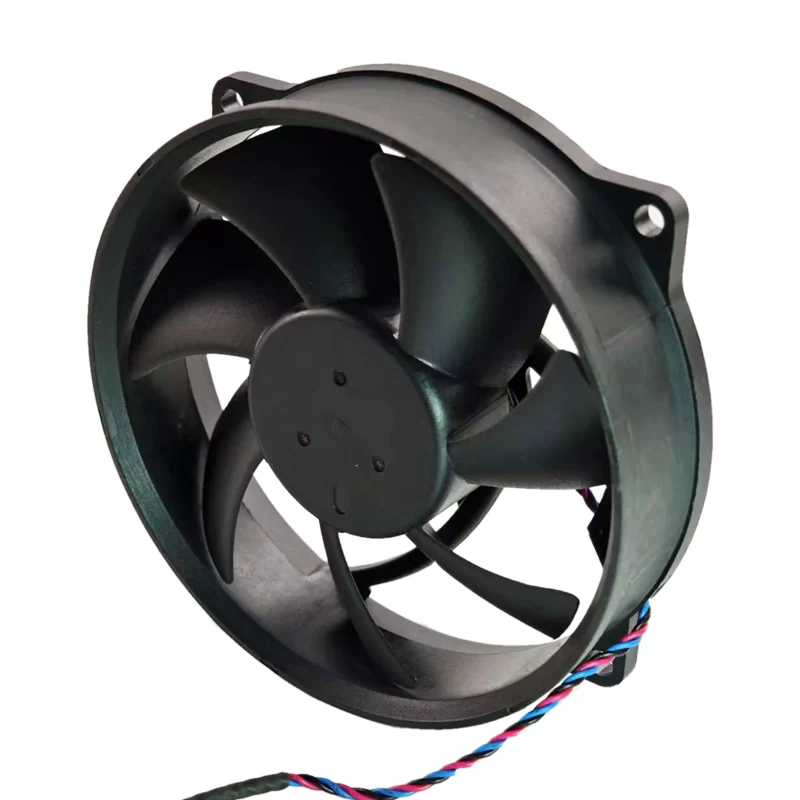

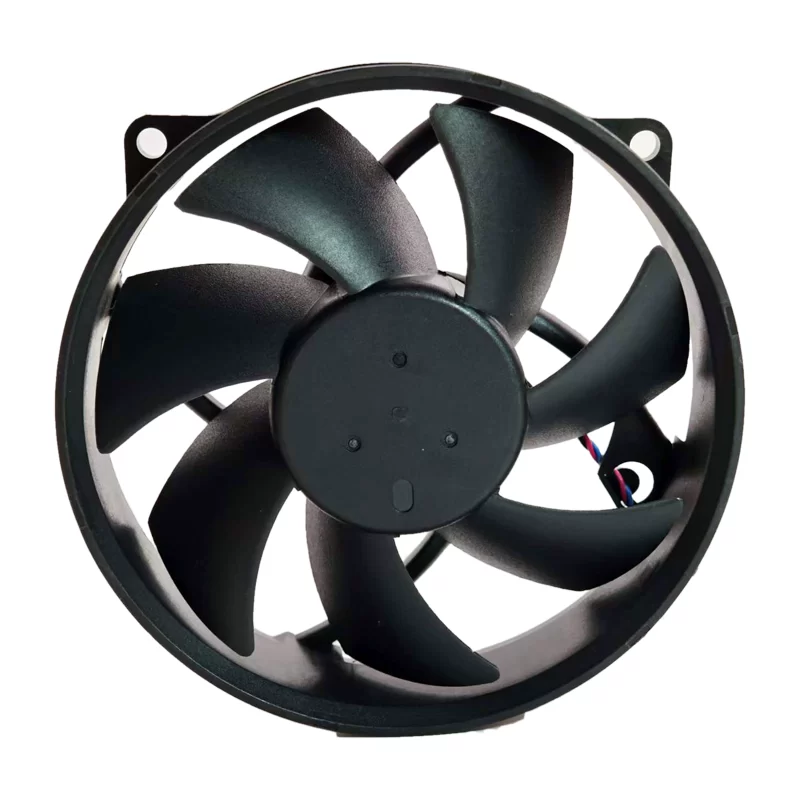

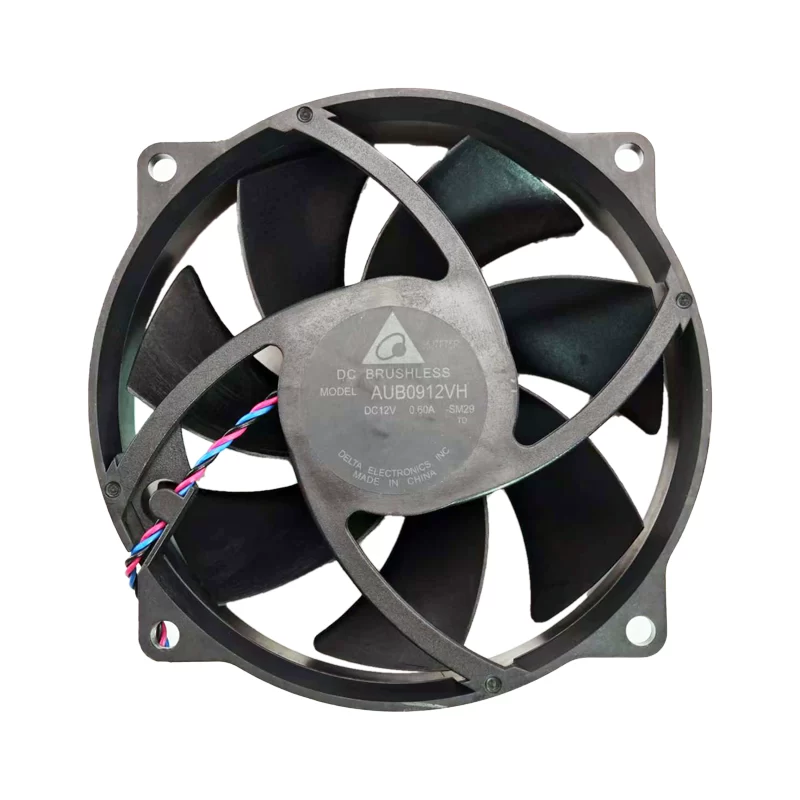

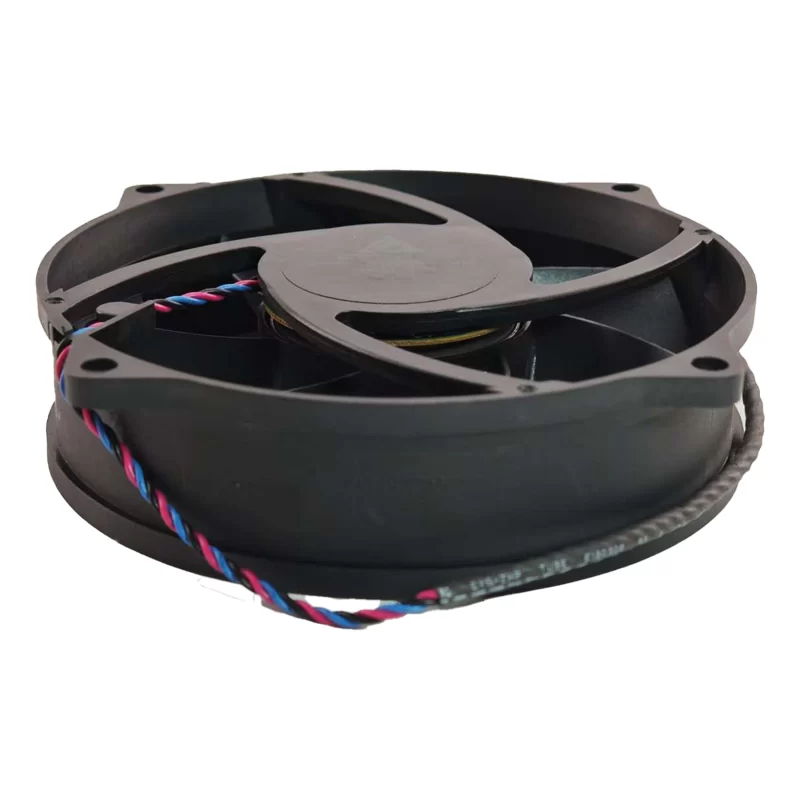

The Delta AUB0912VH-SM29 is a high-performance 12V DC axial cooling fan. Measuring 90mm x 90mm x 25mm, this fan from Delta Electronics is designed for efficient and powerful cooling in various electronic systems, including computers and servers. It operates at a rated voltage of 12V DC (operating range 7.0V to 13.2V DC), drawing 0.60A of current for a power consumption of 7.2W. It achieves a rotational speed of 4000 RPM, delivering an airflow of 78.0 CFM and a static pressure of 0.300 inch-H2O. Its noise level is 44.5 dBA. Featuring durable double ball bearings and a lifespan of 70,000 hours at 40°C, it comes equipped with 3-wire leads for power, ground, and tachometer output, along with auto restart, polarity protection, and locked rotor protection. It is designed for operation in temperatures from -10°C to +70°C.
Model Number: AUB0912VH-SM29
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan (Very High Performance)
Dimensions: 90mm x 90mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.2V DC
Rated Current: 0.60A
Rated Power: 7.2W
Speed: 4000 RPM
Airflow: 78.0 CFM (2.208 m³/min)
Static Pressure: 0.300 inch-H2O (74.7 Pa)
Noise Level: 44.5 dBA
Connector: 3-Wire Leads
Bearing Type: Double Ball Bearing
Life Expectancy: 70,000 Hours @ 40°C
Frame Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10°C to +70°C
Weight: 115g
Features: Tachometer Output (Speed Sensor), Auto Restart, Polarity Protection, Locked Rotor Protection
Approvals/Certifications: UL, cUL, TUV, CE, RoHS Compliant, REACH Compliant
