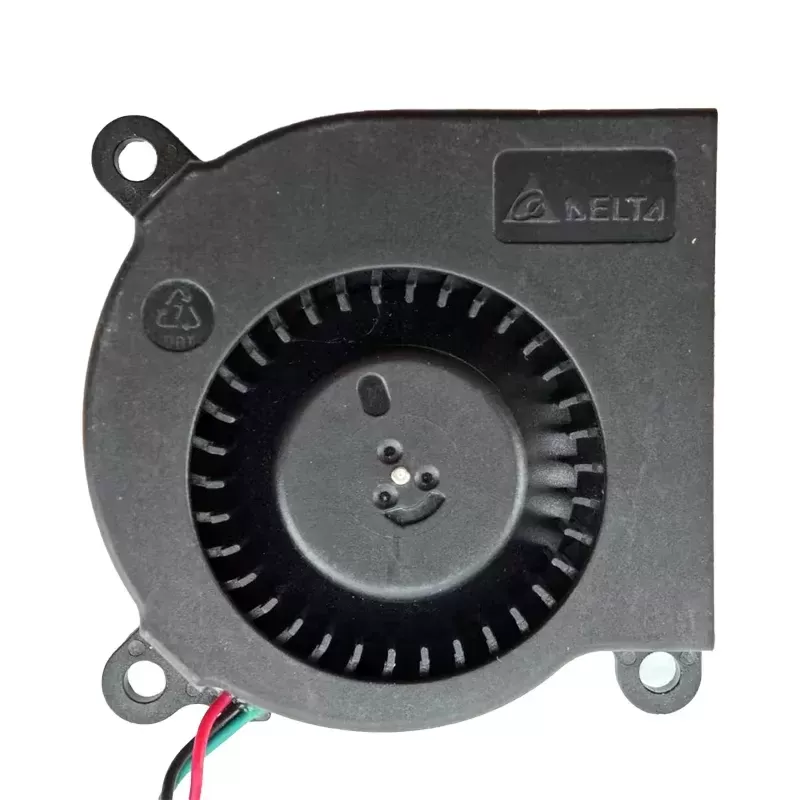

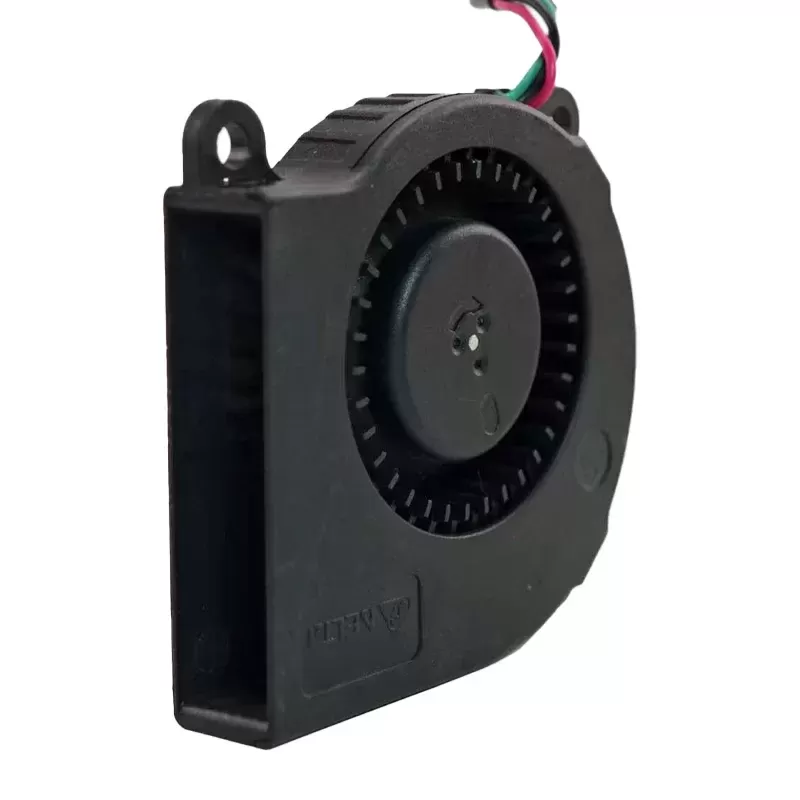

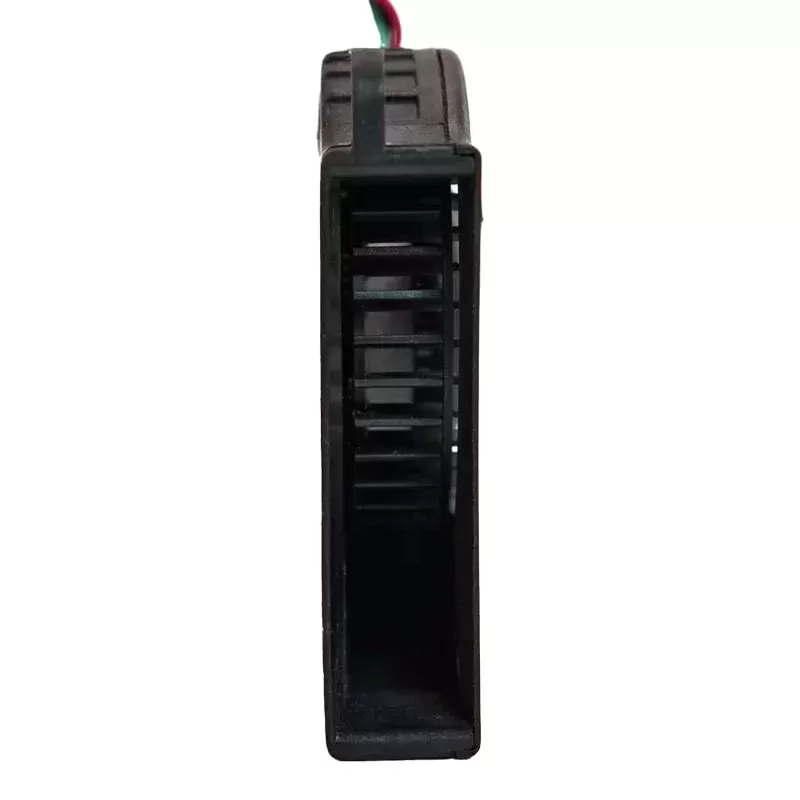

BFB04512HA-J112 Delta 12V 0.2A DC blower fan

Description

The Delta BFB04512HA-J112 is a compact 12V DC blower fan. Measuring 45mm x 45mm x 10mm, this fan from Delta Electronics is designed to provide focused airflow and static pressure in confined spaces, often used in projectors, mini PCs, and other small electronic devices. It operates at a rated voltage of 12V DC (operating range 5.0V to 13.2V DC), drawing 0.20A of current for a power consumption of 2.4W. It comes with 3-wire leads and features a ball bearing design for reliability. It is designed for operation in temperatures from -10°C to +70°C.

Model Number: BFB04512HA-J112
Manufacturer: Delta Electronics
Type: DC Blower / Centrifugal Fan
Dimensions: 45mm x 45mm x 10mm
Rated Voltage: 12V DC
Operating Voltage Range: 5.0V to 13.2V DC
Rated Current: 0.20A
Rated Power: 2.4W
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 30,000 Hours @ 40°C
Frame Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10°C to +70°C
Weight: 18.1g
Features: Locked Rotor Sensor, Tachometer Output
Approvals/Certifications: CE, CSA, UL, VDE, RoHS Compliant
