Description

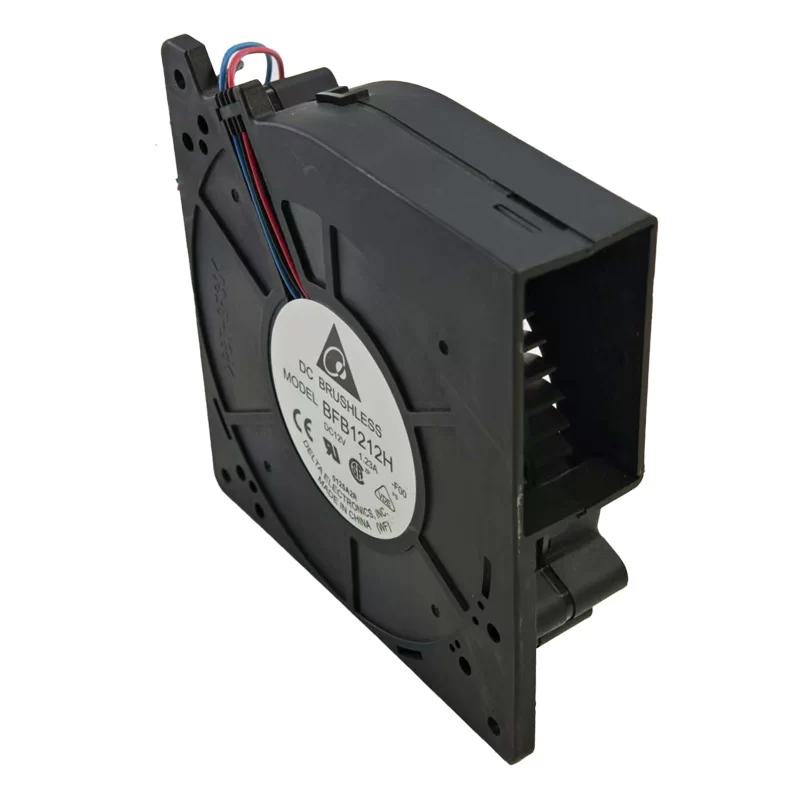

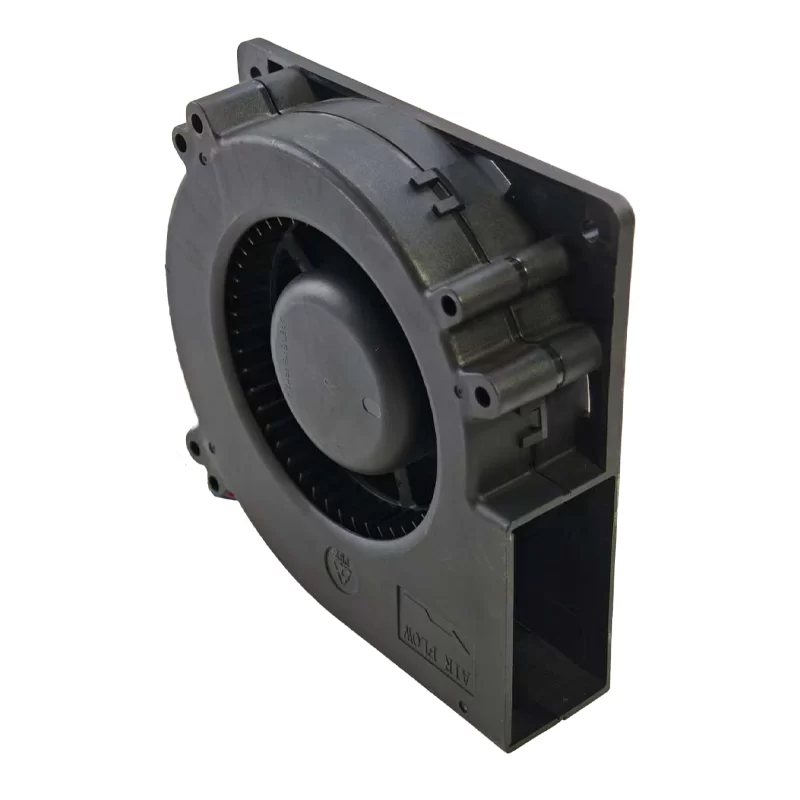

The Delta BFB1212H-F00 is a 12VDC blower fan with dimensions of 120x120x32mm. It is designed to provide concentrated airflow and high static pressure, making it ideal for systems with high airflow resistance. It delivers 32.49CFM (55.2m³/h) of airflow and a static pressure of 27mmH₂O (264.8Pa) at a speed of 2800RPM. The fan consumes 13.2W of power and is built with durable plastic materials. It is equipped with ball bearings for enhanced reliability and its 3-wire termination provides a tachometer signal for speed monitoring. It is commonly used for cooling server enclosures, industrial equipment, and medical devices.
BFB1212H-F00 Fan Parameters
Manufacturer: Delta Electronics
Model: BFB1212H-F00
Fan Type: DC Blower Fan
Dimensions: 120 x 120 x 32 mm
Rated Voltage: 12 VDC
Current Rating: 1.10 A
Power Consumption: 13.2 W
Airflow: 32.49 CFM (55.2 m³/h)
Static Pressure: 27 mmH₂O (264.8 Pa)
Speed: 2800 RPM
Noise Level: 54 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Features: Speed Sensor (Tachometer/FG signal)
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -20 °C ~ 60 °C
Weight: 230 g
Application: This Delta DC blower fan is suitable for cooling server enclosures, industrial equipment, and medical devices.
