Description

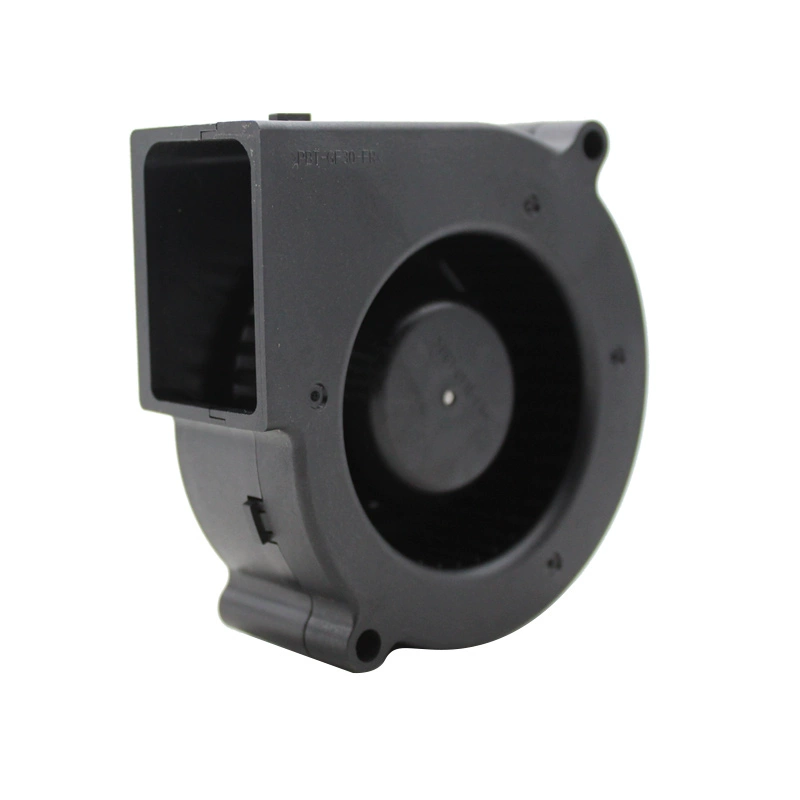

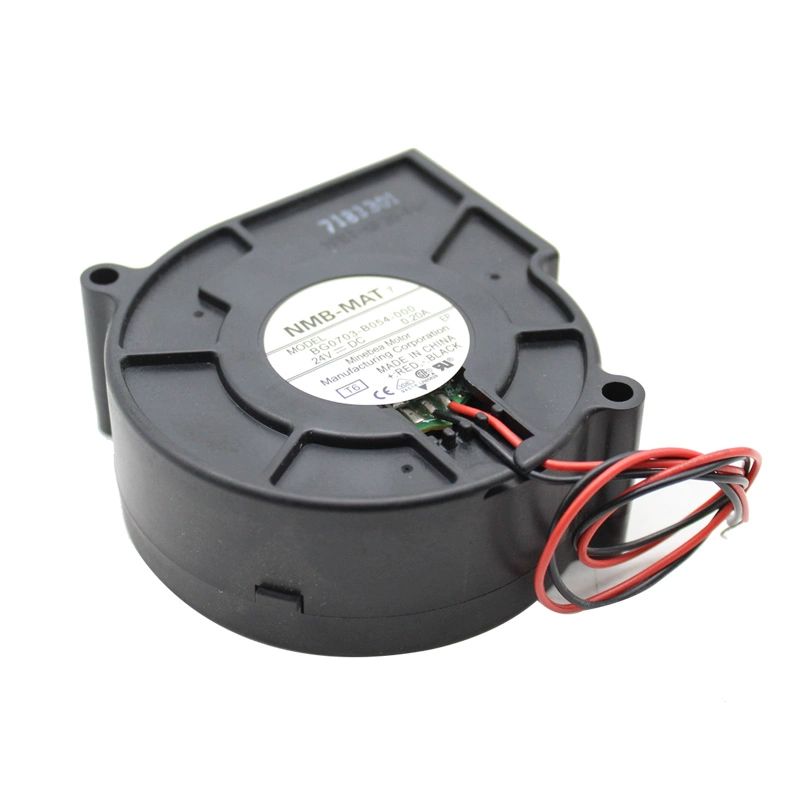

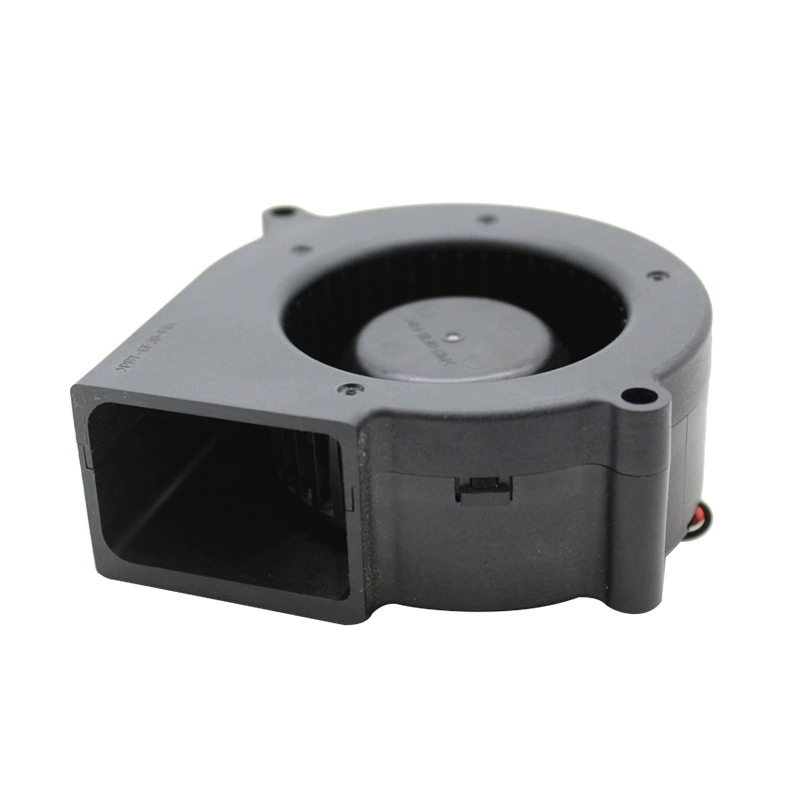

The NMB BG0703-B054-000-T6 is a compact and efficient DC Centrifugal Blower Fan from NMB Technologies, designed for effective air movement in various electronic systems. Operating on 24V DC power, it draws 0.20A of current, resulting in a 4.8W power consumption. Measuring 75mm x 75mm x 30mm, this blower is ideally suited for cooling applications in devices where air needs to be pushed through restrictive pathways, such as network equipment, medical devices, and other compact electronics. It rotates at a speed of 3700 RPM, delivering an airflow of 12.5 CFM and generating a static pressure of 0.58 inch-H2O, making it effective for overcoming resistance. With a noise level of 42 dBA, it offers quiet and effective cooling. Equipped with 2-wire leads and durable ball bearings, the fan boasts a life expectancy of 70,000 hours at 25°C. It is designed to operate reliably within a temperature range of -10°C to 70°C.
Model Number: BG0703-B054-000-T6
Manufacturer: NMB Technologies
Type: DC Centrifugal Blower Fan
Rated Voltage: 24V DC
Operating Voltage Range: 10V to 26V DC
Rated Current: 0.20A
Rated Power: 4.8W
Speed: 3700 RPM
Airflow: 12.5 CFM
Static Pressure: 0.58 inch-H2O
Noise Level: 42 dBA
Dimensions: 75mm (Height) x 75mm (Width) x 30mm (Depth)
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Wire Leads
