Description

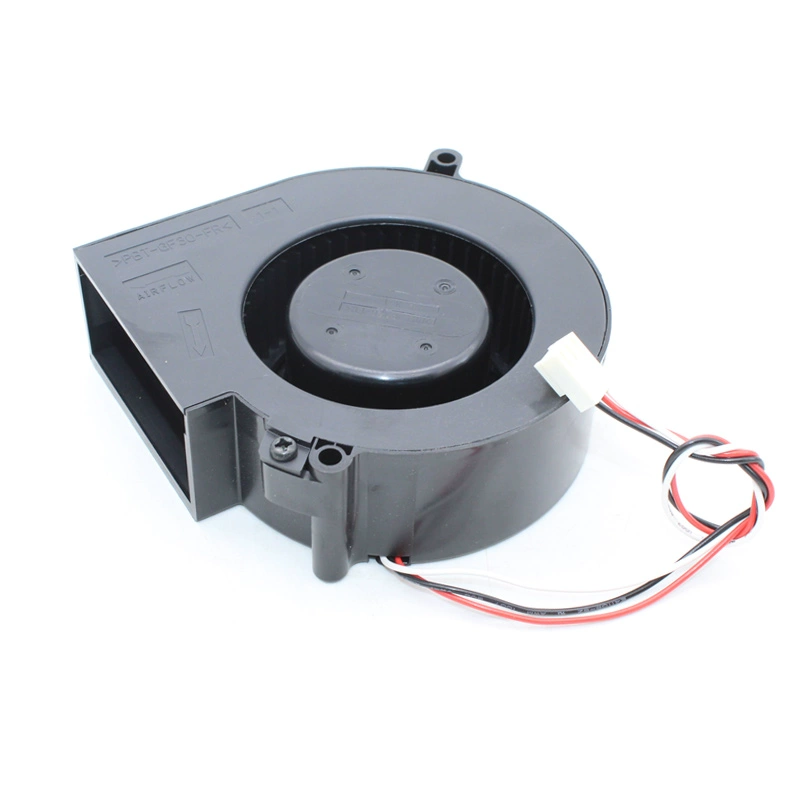

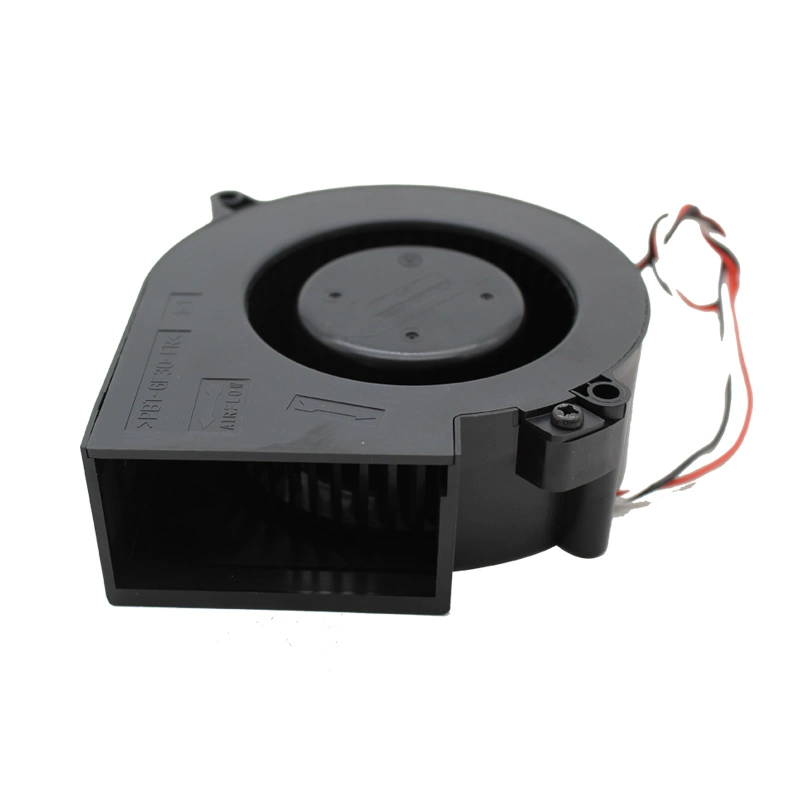

The NMB BG0903-B044-00S-08 is a powerful 12V DC blower fan. Measuring approximately 97mm x 93.5mm x 33mm, this blower is designed for applications requiring strong, directed airflow and high static pressure, often found in servers, networking equipment, and other systems with restrictive airflow paths. It operates at a rated voltage of 12V DC and draws a significant current of 1.34A, resulting in a power consumption of 16.08W. This allows it to achieve a rotational speed of 4300 RPM, delivering an airflow of 35.0 CFM and a static pressure of 1.85 inch-H2O. Its noise level is 58.0 dBA. The fan features durable ball bearings for an operational lifespan of 100,000 hours at 25°C. It comes with 3-wire leads for power, ground, and a tachometer output for speed monitoring, along with auto-restart and polarity protection.
Model Number: BG0903-B044-00S-08
Manufacturer: NMB Technologies Corporation
Series: BG0903 Blower Series
Type: DC Centrifugal Blower Fan
Dimensions: 97mm L x 93.5mm H x 33mm W
Rated Voltage: 12V DC
Operating Voltage Range: 6V to 13.2V DC
Rated Current: 1.34A
Rated Power: 16.08W
Speed: 4300 RPM
Airflow: 35.0 CFM (0.99 m³/min)
Static Pressure: 1.85 inch-H2O (461 Pa)
Noise Level: 58.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection, Tachometer Output
Operating Temperature: -10°C to +70°C
Weight: 210g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
