Description

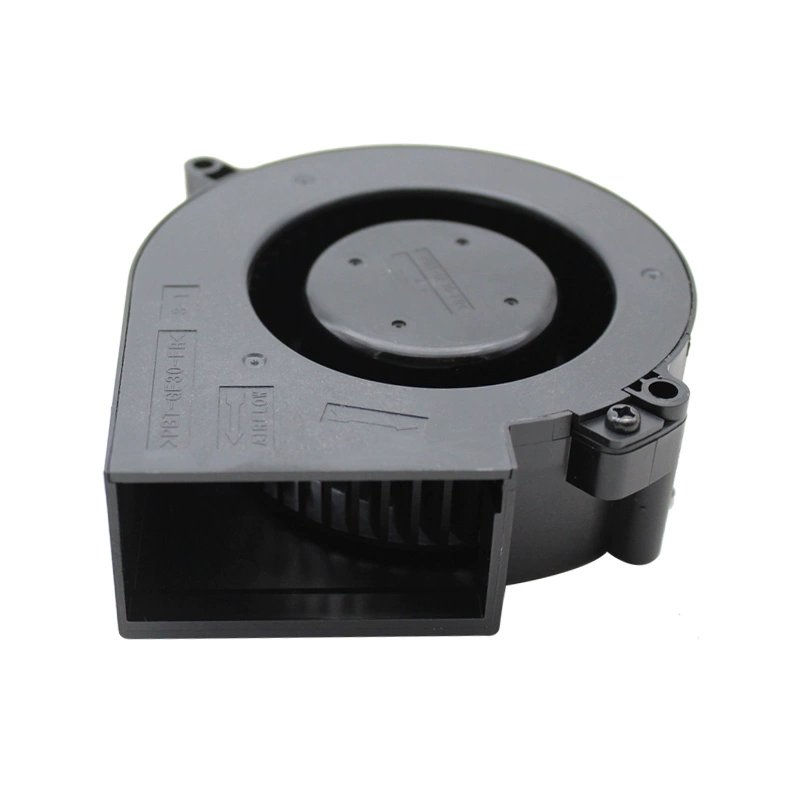

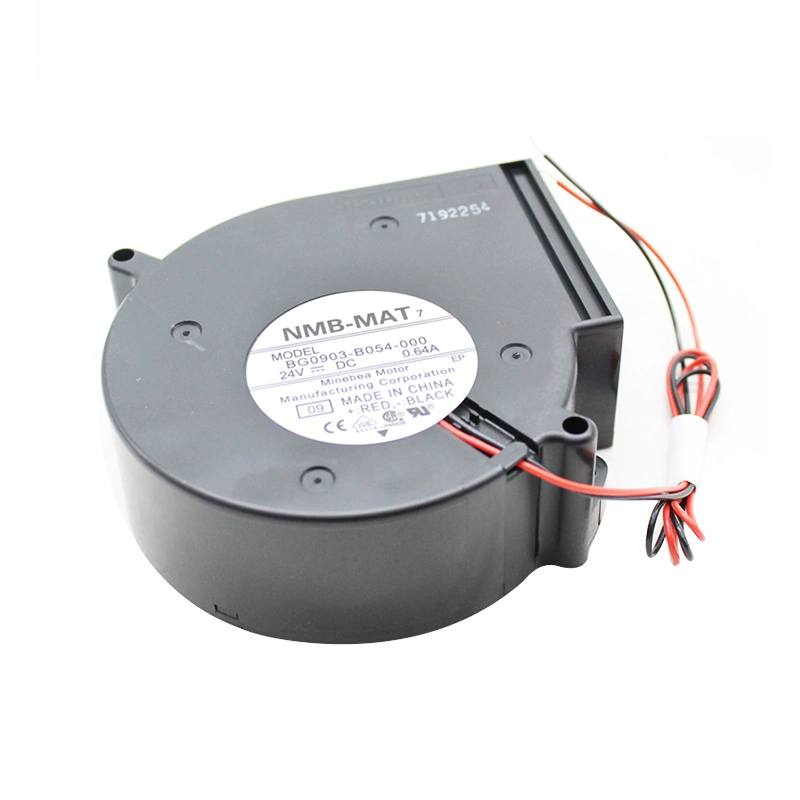

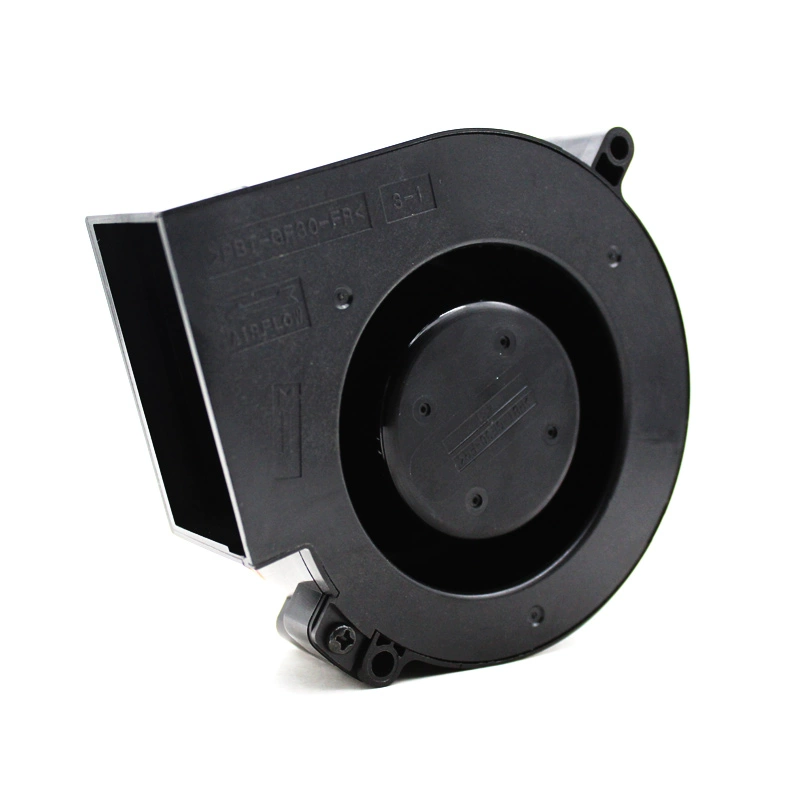

The NMB BG0903-B054-00-09 is a high-performance 24V DC blower fan. Measuring approximately 97mm x 93.5mm x 33mm, this blower is designed for applications demanding concentrated airflow and high static pressure, typical in server and networking equipment, or other systems with restricted airflow paths. It operates at a rated voltage of 24V DC and draws a current of 0.64A, resulting in a power consumption of 15.36W. This allows it to achieve a rotational speed of 4200 RPM, delivering an airflow of 34.6 CFM and a static pressure of 1.83 inch-H2O. Its noise level is 58.0 dBA. The fan features durable ball bearings for an extended operational lifespan of 100,000 hours at 25°C. It comes with 2-wire leads for power connection and includes auto-restart and polarity protection.
Model Number: BG0903-B054-00-09
Manufacturer: NMB Technologies Corporation
Series: BG0903 Blower Series
Type: DC Centrifugal Blower Fan
Dimensions: 97mm L x 93.5mm H x 33mm W
Rated Voltage: 24V DC
Operating Voltage Range: 10V to 25V DC
Rated Current: 0.64A
Rated Power: 15.36W
Speed: 4200 RPM
Airflow: 34.6 CFM (0.98 m³/min)
Static Pressure: 1.83 inch-H2O (456 Pa)
Noise Level: 58.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
Operating Temperature: -10°C to +60°C
Weight: 210g
Approvals/Certifications: CE, CSA, UL, VDE, RoHS Compliant
