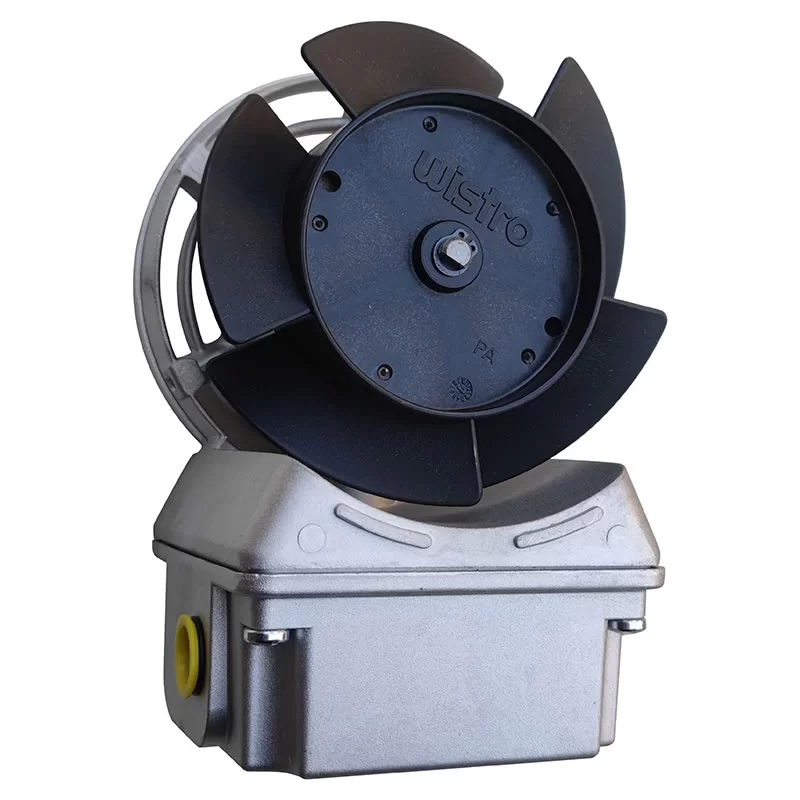

BG63 Wistro 230V AC Motor Cooling Fan

Description

The Wistro BG63 is a specialized AC Motor Cooling Fan designed for forced external ventilation of electric motors, typically corresponding to frame size IEC 63. It operates on a standard voltage of 230 V AC at 50/60 Hz. This robust, high-durability fan has an IP66 rating for protection against water and dust ingress, ensuring effective heat removal and prolonged motor life in demanding industrial environments.

BG63 Fan Parameters
Model: BG63
Manufacturer: Wistro
Type: AC Motor Cooling Fan
Compatibility: IEC Motor Frame Size 63
Nominal Voltage: 230 V AC
Frequency: 50 / 60 Hz
Rated Current: 0.35 A
Rated Power Consumption: 80 W
Operational Speed (50 Hz): 2800 RPM
Operational Speed (60 Hz): 3400 RPM
Airflow Volume: 300 m³/h (176.6 CFM)
Max. Static Pressure: 0.40 inAq (100 Pa)
Protection Rating: IP66
Insulation Class: F
Weight: 2.0 kg
Bearing Type: Deep Groove Ball Bearing
Motor Design: AC Induction Motor
Termination: Terminal Box
Housing Material: Die-cast Aluminum
Impeller Material: Glass Fiber Reinforced Plastic
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 60 °C
Certifications: CE, RoHS

Application
The Wistro BG63 is an essential component for continuous-duty industrial motors, particularly in applications subject to low speeds, high start/stop cycles, or harsh environmental conditions. By providing dedicated, forced ventilation, it ensures the electric motor’s temperature remains within safe limits, preventing thermal overload and extending the service life of critical industrial drive systems.
