Description

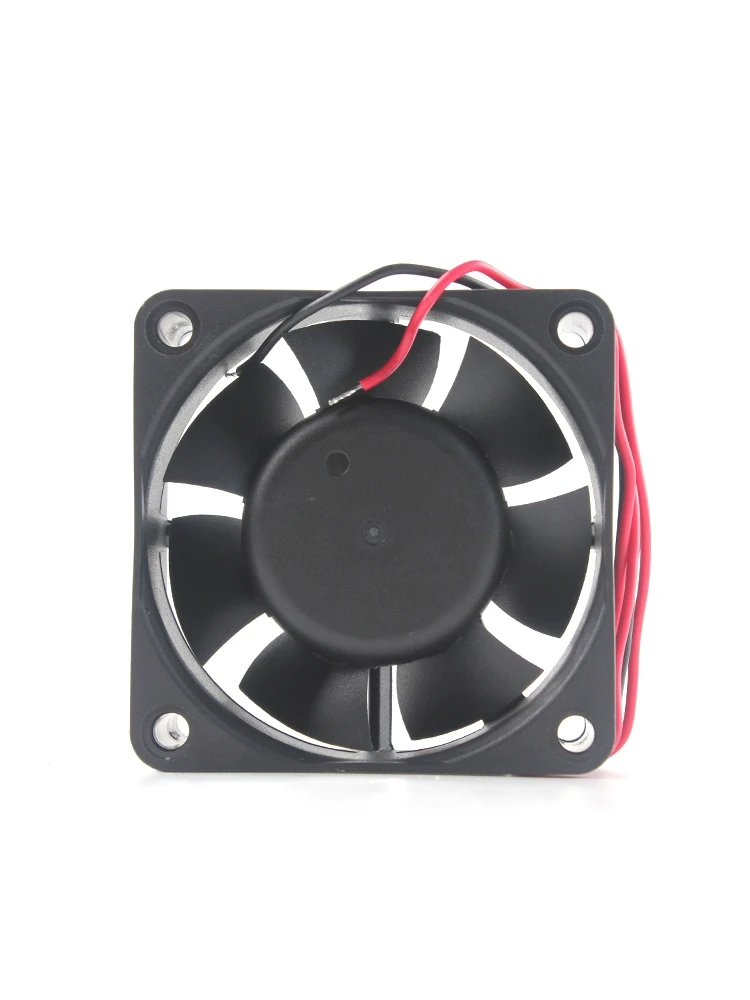

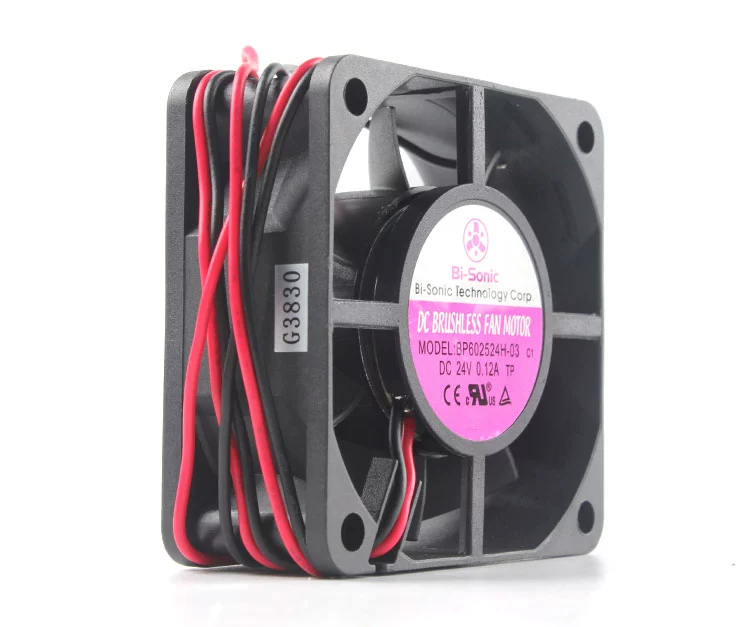

The Bi-Sonic BP602524H-03 is a high-performance DC Axial Fan with dimensions measuring 60 x 60 x 25 mm. It operates on a 24 V DC power supply, consuming 2.88 W of power at a current draw of 0.12 A. This high-speed fan achieves a rotational speed of 3800 RPM, providing an airflow of 30.6 m³/h (18.0 CFM) with a static pressure of 38.2 Pa. Its compact size and efficient performance make it an ideal cooling solution for electronics and equipment requiring focused ventilation in constrained spaces.
BP602524H-03 Fan Parameters
Model: BP602524H-03
Manufacturer: Bi-Sonic
Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24 VDC
Rated Current: 0.12 A
Power Input: 2.88 W
Speed: 3800 RPM
Airflow: 30.6 m³/h (18.0 CFM)
Static Pressure: 38.2 Pa / 0.15 inAq
Noise Level: 28.7 dB(A)
Motor Weight: 60 g
Life Expectancy: 50000 h
Min. Operating Temp.: -10 °C
Max. Operating Temp.: 70 °C
Termination: 2 Wire Leads
Application
The BP602524H-03 is designed for cooling electronic equipment, small power supplies, network devices, and other applications where a compact, high-speed fan is needed to maintain operating temperatures within a tight thermal envelope. The two-wire configuration ensures simple integration into standard DC systems.
