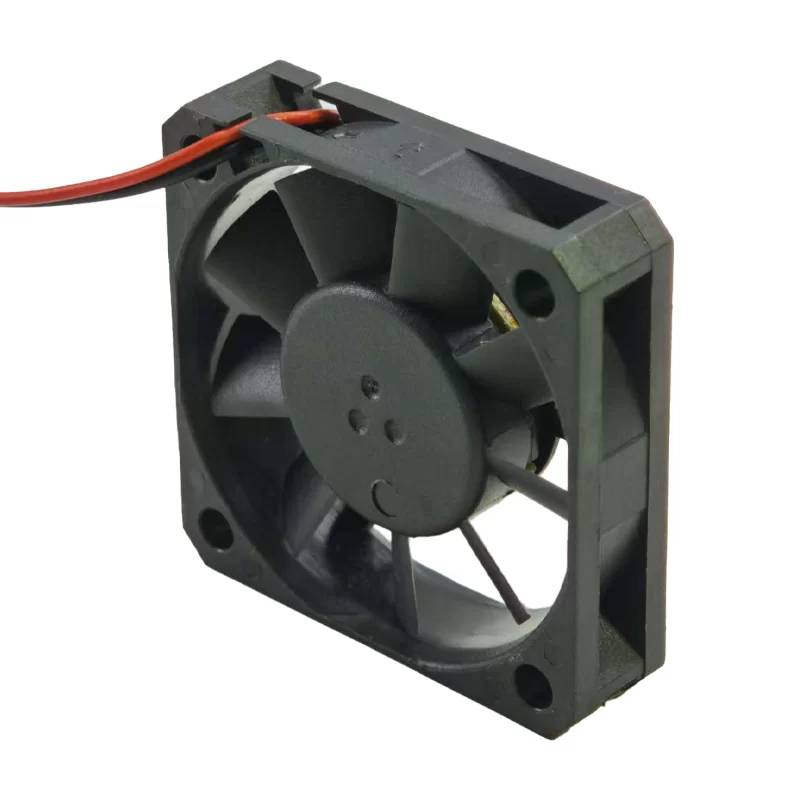

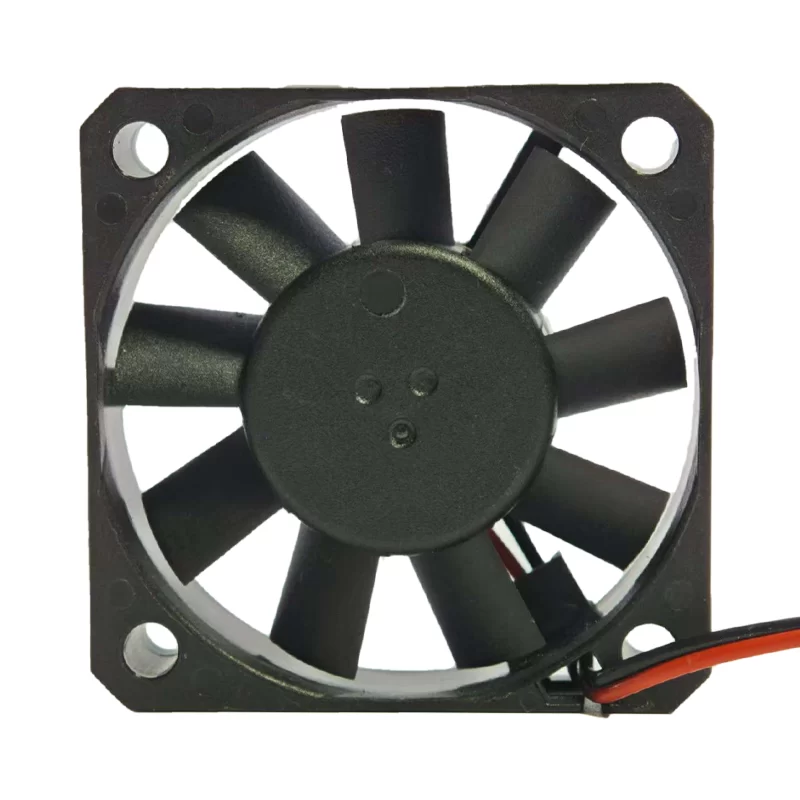

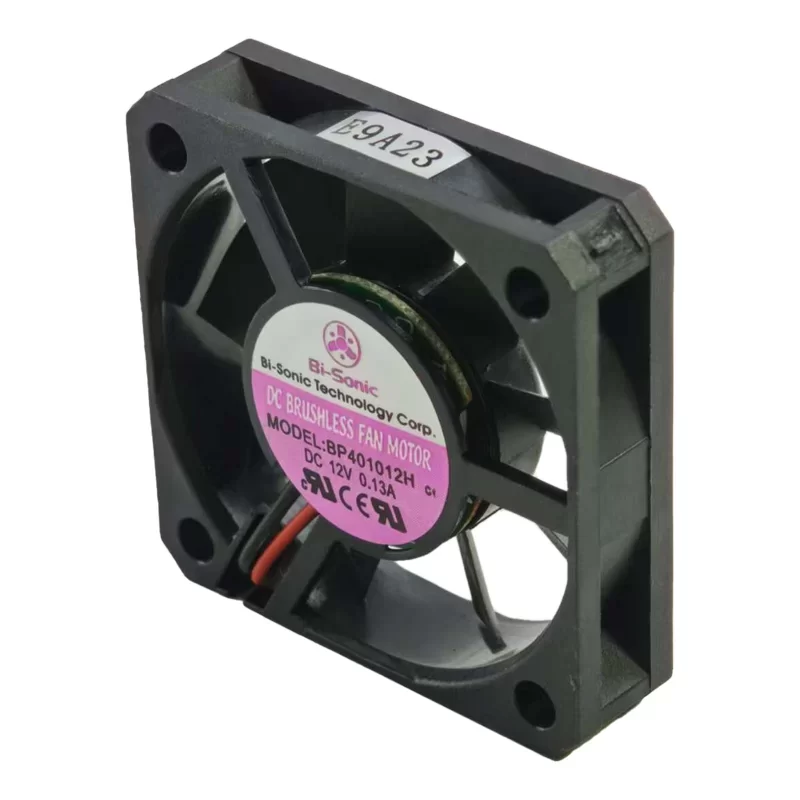

BP401012H Bi-Sonic 12V DC Axial Fan

Description

The Bi-Sonic BP401012H is a high-performance DC Axial Fan with dimensions of 40×40×10 mm. This lightweight fan, weighing only 18 g, operates within a voltage range of 10.2 V to 13.8 V (Rated at 12 V) and features a Nominal Speed of 6,500 RPM. It delivers 13.09 m3/h Airflow and 29 Pa Static Pressure at a maximum noise level of 29 dB(A). Consuming 1.56 W of power, the BP401012H utilizes Ball Bearings, making it an excellent, reliable cooling solution for space-constrained applications like 1U server equipment and small form factor (SFF) electronic devices.

BP401012H Fan Parameters
Model: BP401012H
Manufacturer: Bi-Sonic
Type: DC Axial Fan
Dimensions: 40×40×10 mm
Operating Voltage: 12 V
Operating Voltage Range: 10.2 V to 13.8 V
Rated Current: 0.13 A
Power Consumption: 1.56 W
Nominal Speed: 6,500 RPM
Airflow: 13.09 m3/h (7.70 CFM)
Static Pressure: 29 Pa (0.116 inH2O)
Noise Level: 29 dB(A)
Weight: 18 g
Bearing Type: Ball
Frame Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Operating Temperature: −30 °C to 75 °C
Storage Temperature: −40 °C to 75 °C
Life Expectancy: 50,000 hours (at 40 °C)
Termination: 2-Wire Leads

Application
The BP401012H is an essential thermal management component for electronic assemblies where high performance in a thin 10 mm package is required. The fan’s high static pressure and low noise level make it highly effective for localized spot cooling of processors, chipsets, or HDD/SSD arrays in dense IT hardware, including 1U rack-mount servers, networking switches, and telecommunication devices.
