Description

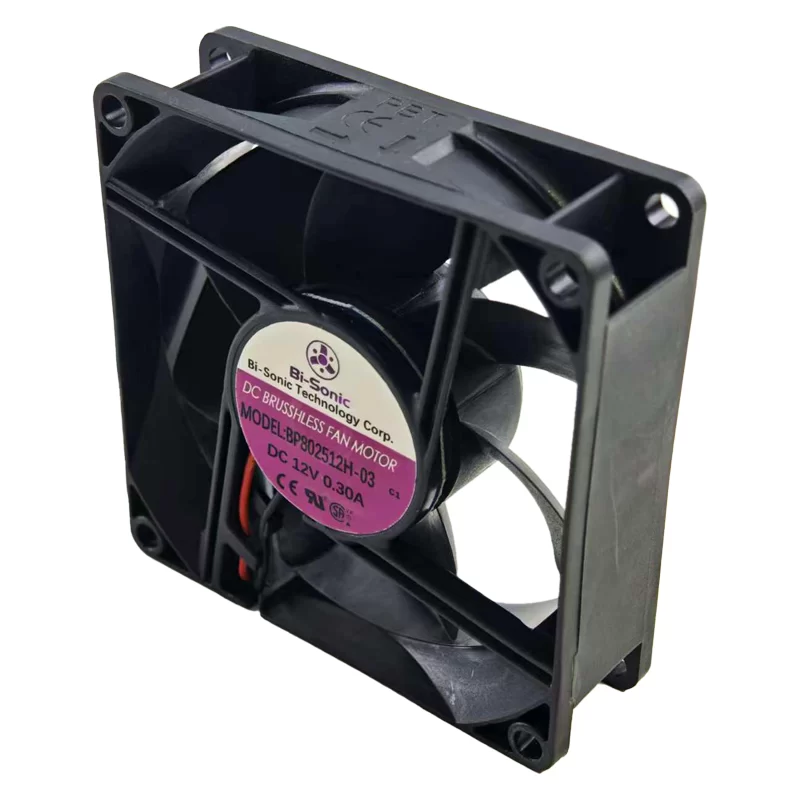

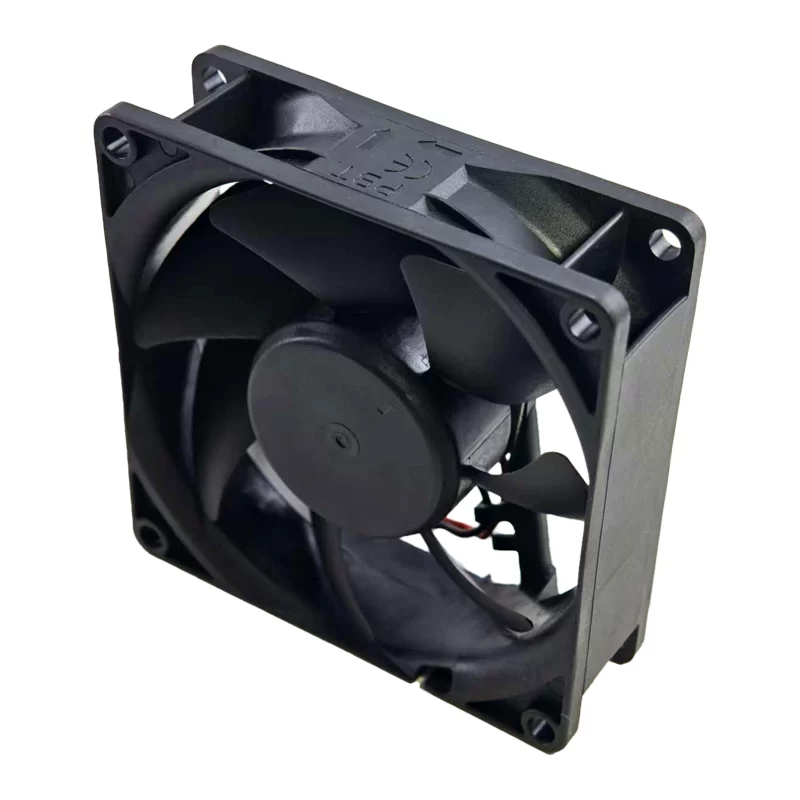

The Bi-Sonic BP802512H-03 is a standard 12VDC axial fan with dimensions of 80x80x25mm. It is designed for general-purpose cooling, providing 41.4CFM (70.3m³/h) of airflow and generating 0.13inchH₂O (32.3Pa) of static pressure. Operating at 3300RPM, the fan consumes 3.6W of power and is built with durable, flame-retardant plastic materials. It uses ball bearings for enhanced reliability and a long service life of 50,000 hours at 40°C and uses a standard two-wire termination for power connection. It is commonly used in PCs, power supplies, control cabinets, and various electronic enclosures.
BP802512H-03 Fan Parameters
Manufacturer: Bi-Sonic
Model: BP802512H-03
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Current Rating: 0.3 A
Power Consumption: 3.6 W
Airflow: 41.4 CFM (70.3 m³/h)
Static Pressure: 0.13 inch H₂O (32.3 Pa)
Speed: 3300 RPM
Noise Level: 36.8 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Lifetime @ Temp: 50,000 Hours @ 40 °C
Weight: 85 g
Application: This Bi-Sonic DC axial fan is suitable for cooling PCs, power supplies, and electronic enclosures.
