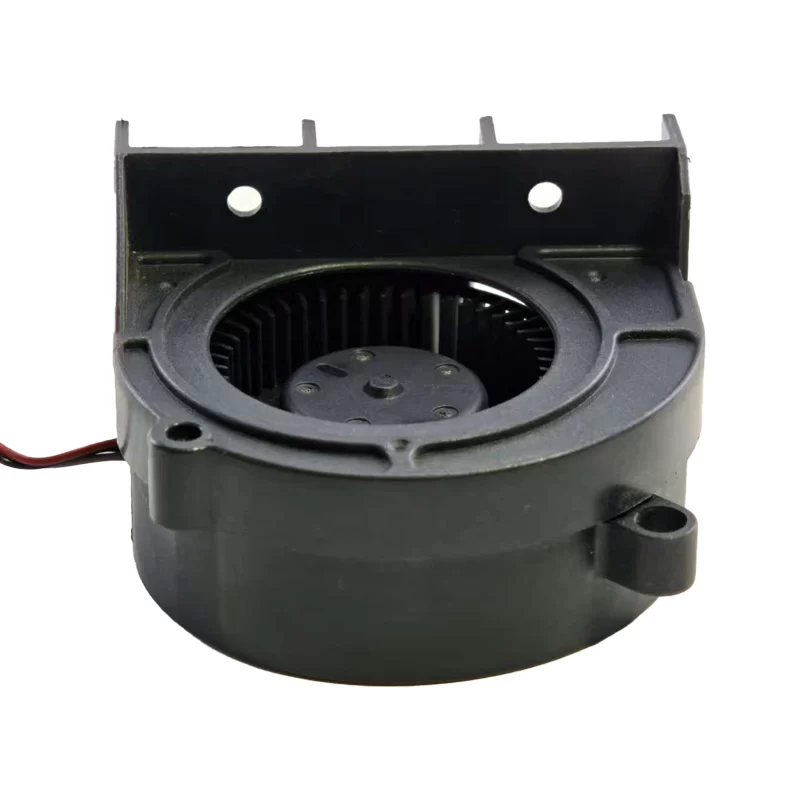

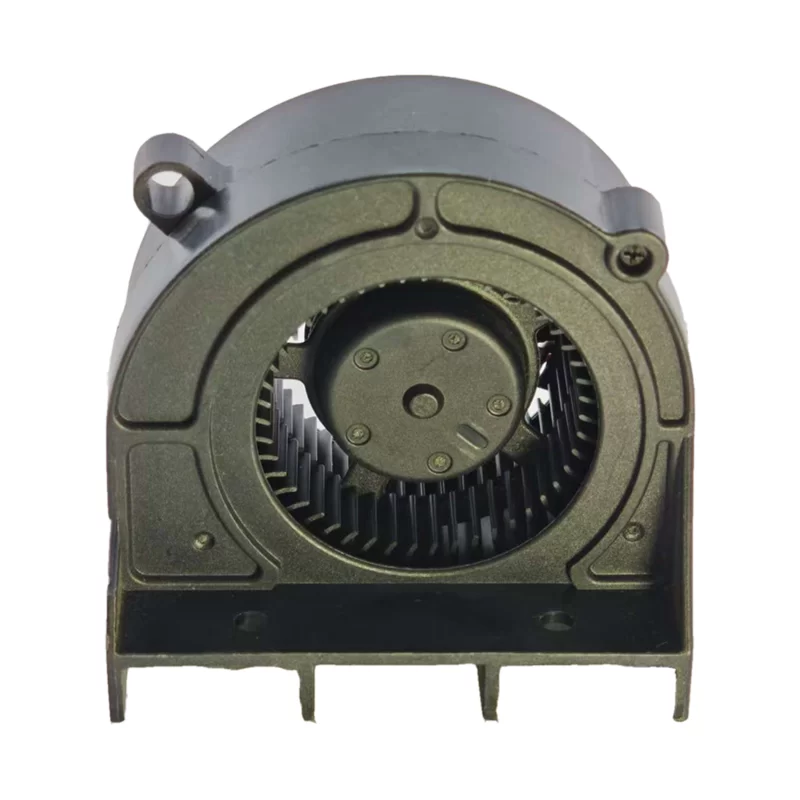

BUB0512HHD-BE34 Delta 12V DC Blower

Description

The Delta BUB0512HHD-BE34 is a compact DC blower measuring 50 x 50 x 20 mm. It operates on 12V DC, drawing 0.26 A of current and consuming 3.12 W of power. The blower delivers an airflow of 46.6 CFM (79.1 m³/h) and a static pressure of 0.267 inch H₂O (66.5 Pa). It runs at a speed of 4000 RPM with a noise level of 40 dB(A). This blower uses ball bearings for enhanced durability and features three-wire leads. Ideal for cooling components in confined spaces.

BUB0512HHD-BE34 Fan Parameters
Manufacturer: Delta Electronics
Model: BUB0512HHD-BE34
Fan Type: DC Blower
Dimensions: 50 x 50 x 20 mm
Rated Voltage: 12V DC
Current Rating: 0.26 A
Power Consumption: 3.12 W
Airflow: 46.6 CFM (79.1 m³/h)
Static Pressure: 0.267 inch H₂O (66.5 Pa)
Speed: 4000 RPM
Noise Level: 40 dB(A)
Bearing Type: Ball Bearing
Termination: Three Wire Leads
Housing Material: Thermoplastic (UL94-0)
Impeller Material: Thermoplastic (UL94-0)
Operating Temperature: -10 °C ~ 60 °C

Application
The BUB0512HHD-BE34 is a compact DC blower designed for cooling in highly restrictive environments. Its high static pressure is ideal for applications like projector light sources and internal components, small electronic devices, and medical equipment where space is limited and focused airflow is necessary.
