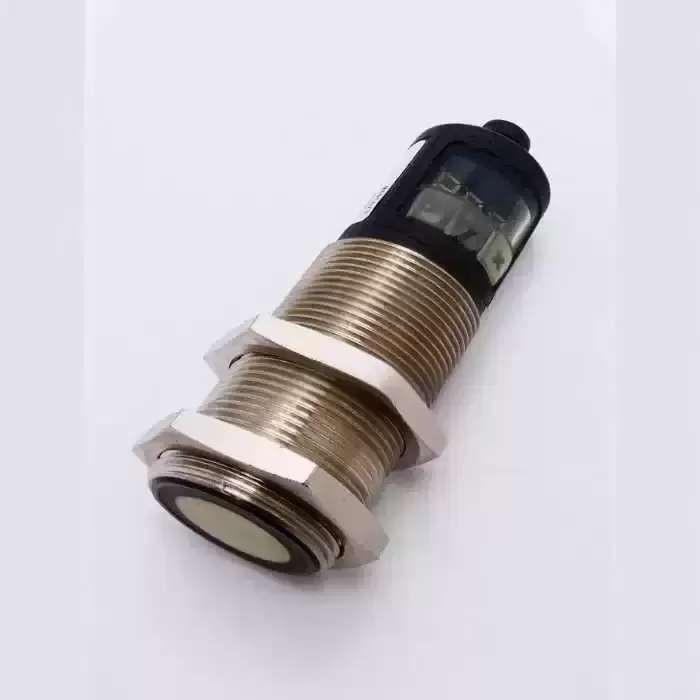

BUS M30M1-XC-20/130-S92K Balluff Ultrasonic sensors

Description

BUS M30M1-XC-20/130-S92K is an ultrasonic sensor manufactured by Balluff, capable of measuring distances from 200 to 2000 mm. This sensor features a robust nickel-plated brass housing and an IP67 protection rating, ensuring reliable operation in industrial environments. It provides 0-10 V or 4-20 mA analog output for easy integration into various control systems.

Product parameters:
Model: M30M1-XC-20/130-S92K
Manufacturer: Balluff
Sensor type: Ultrasonic
Housing type: ϕ 30 mm
Analog output: 0-10 V/4-20 mA
Connection: M12x1-male, 5-pin
Housing material: Brass, nickel-plated PBT, TPU
Sensing surface material: Polyurethane foam/epoxy resin/glass
Range: 200-2000 mm
Ambient temperature: -25-70 °C
Protection degree: IP67
Repetition accuracy: ± 0.15% of full scale
Operating voltage: 9-30 V DC
