CF2082HVL-1000C-999 SUNON 220V AC Axial Fan

Description

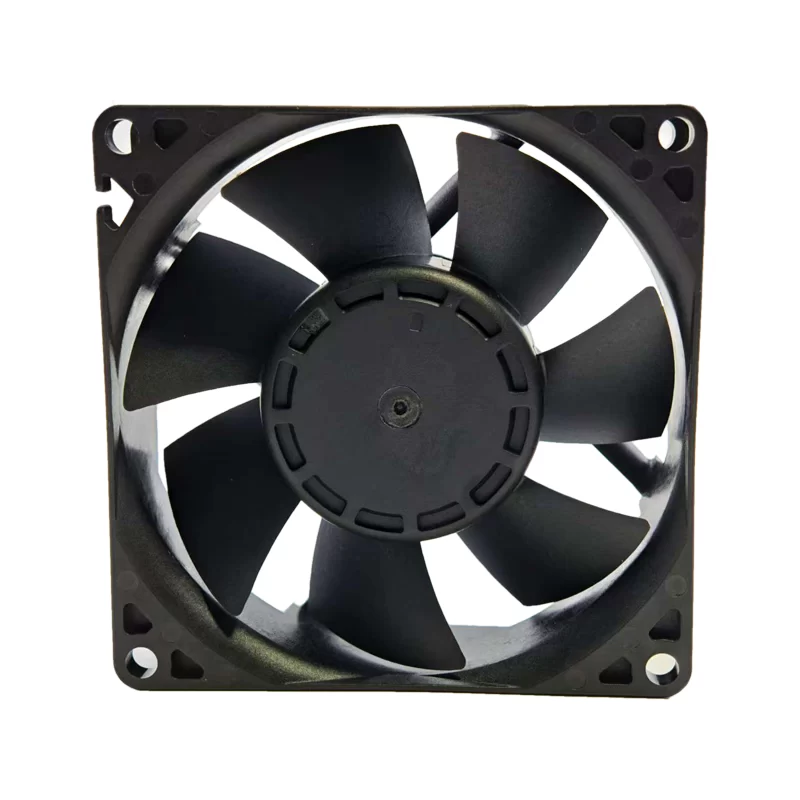

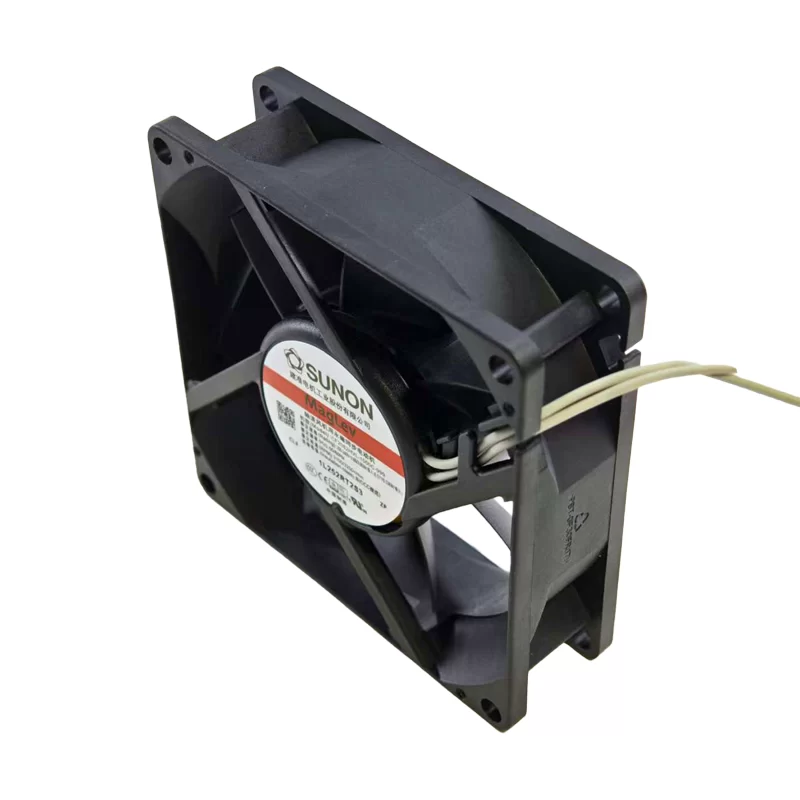

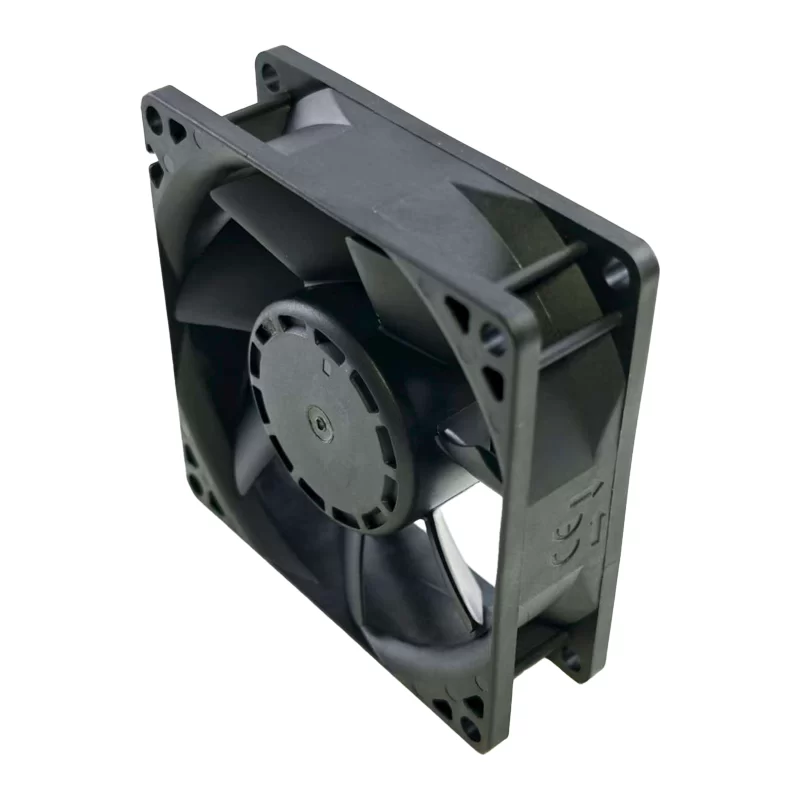

The SUNON CF2082HVL-1000C-999 is an AC axial fan with dimensions of 80 x 80 x 25 mm. It operates on 220V AC, drawing 0.102 A of current and consuming 4.6 W of power. The fan delivers an airflow of 40 CFM (68 m³/h) and a static pressure of 0.14 inch H₂O (34.9 Pa). It runs at a speed of 3200 RPM with a low noise level of 30 dB(A). This fan weighs 81 g and uses two-wire leads. This fan is ideal for general cooling of electronic enclosures.

CF2082HVL-1000C-999 Fan Parameters
Manufacturer: SUNON
Model: CF2082HVL-1000C-999
Fan Type: AC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 220V AC
Current Rating: 0.102 A
Power Consumption: 4.6 W
Airflow: 40 CFM (68 m³/h)
Static Pressure: 0.14 inch H₂O (34.9 Pa)
Speed: 3200 RPM
Noise Level: 30 dB(A)
Weight: 81 g
Termination: Two Wire Leads
Application: The CF2082HVL-1000C-999 is designed for efficient cooling in a wide range of applications. Its balanced performance makes it suitable for control cabinets, power supplies, computers, and other electronic equipment that require a standard 220V AC cooling solution.
