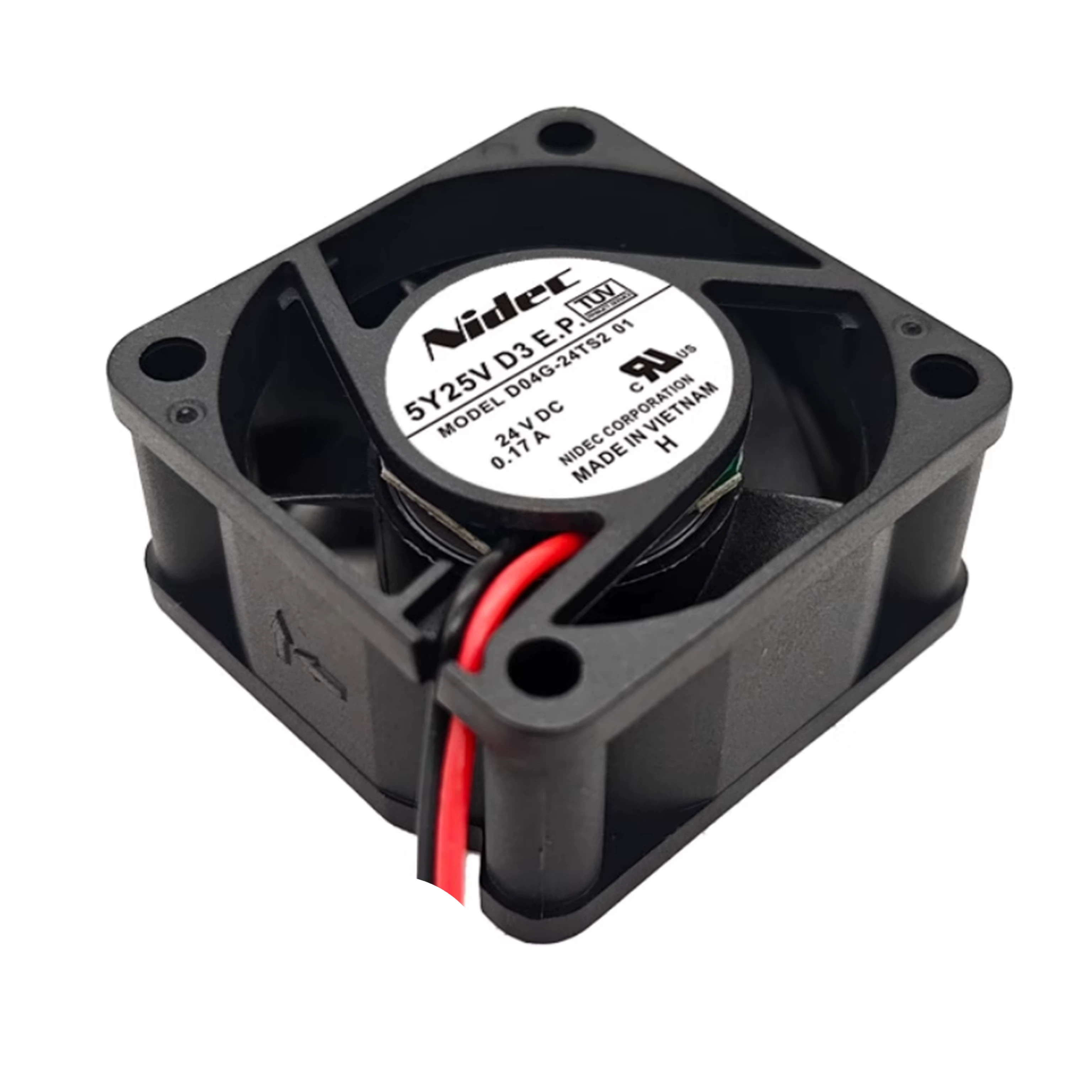

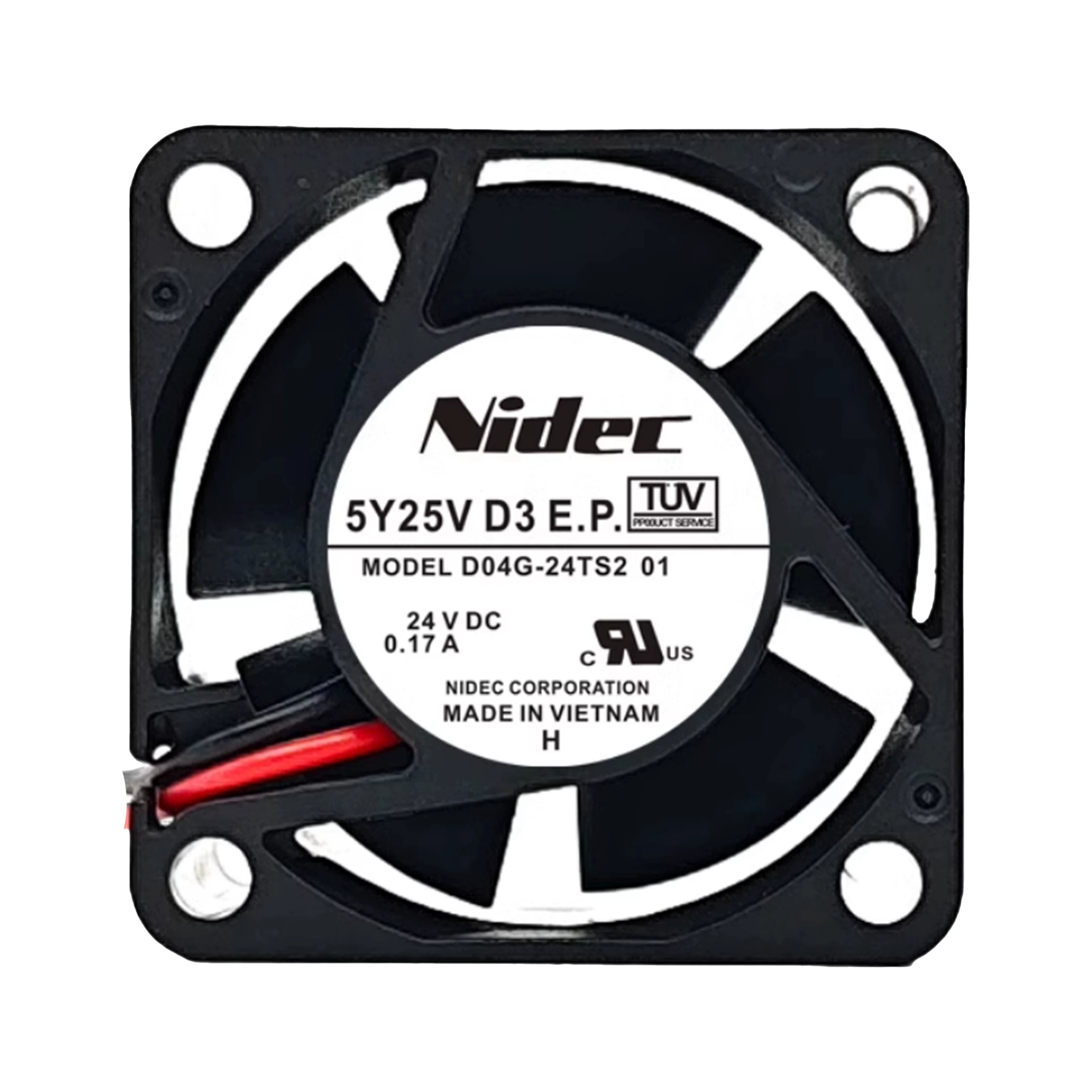

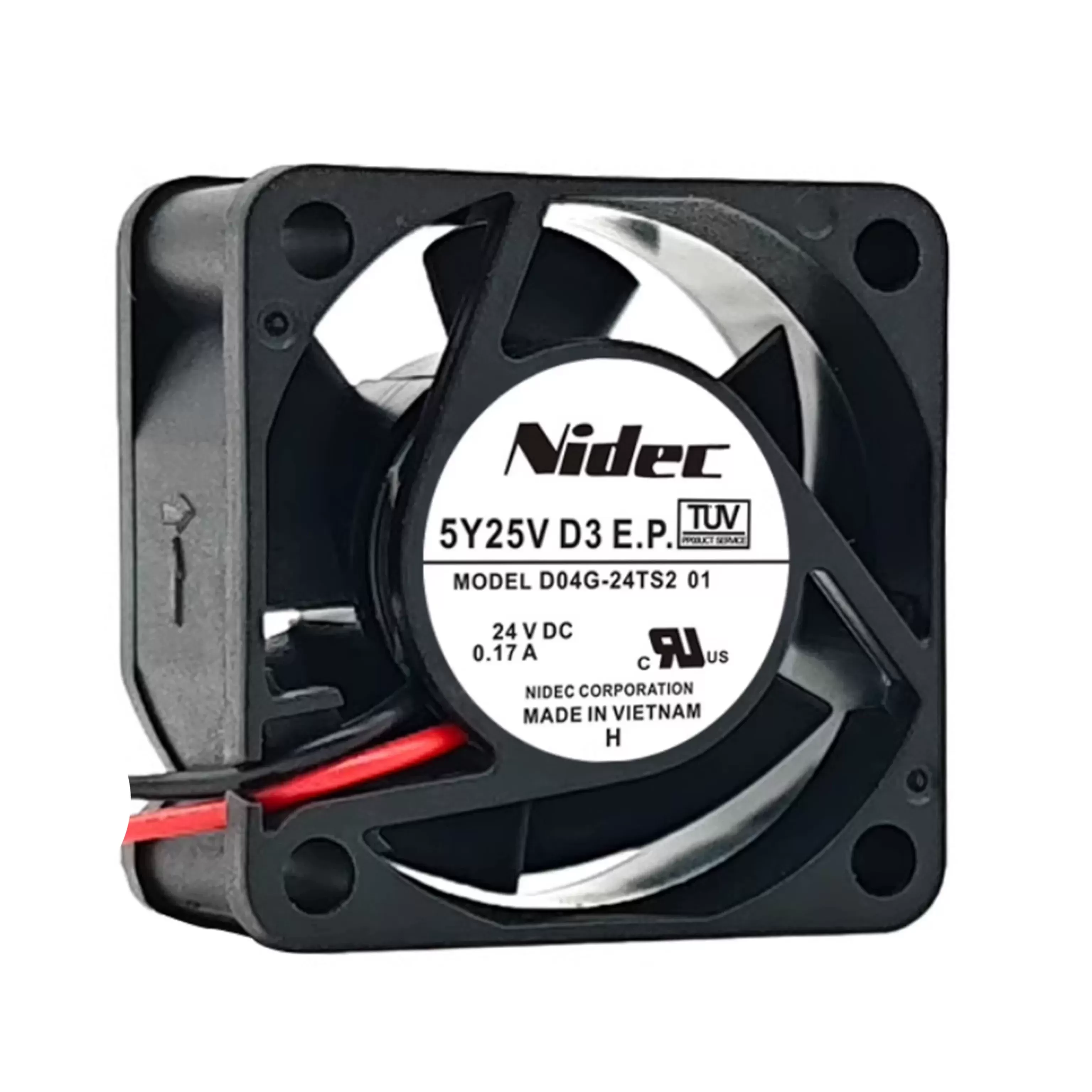

D04G-24TS2 01 Nidec 24V frequency converter cooling fan

Description

D04G-24TS2 01 Nidec 24V frequency converter cooling fan
Model Number: D04G-24TS2 01
Manufacturer: Nidec
Fan Type: DC Brushless Axial Fan
Dimensions (L x H x W): 40 mm x 40 mm x 20 mm (Often referred to as “4020” fan)
Rated Voltage: 24 VDC
Rated Current: 0.17 A
Input Power: 4.08 W (Calculated from 24V * 0.17A)
Wiring: 2 Lead Wires (Positive, Negative) – Note: While some Nidec fans have 3 or 4 wires, this specific model (based on common listings) appears to be 2-wire.
Bearing Type: Dual Ball Bearing
Rotational Speed (RPM): Not consistently specified in common listings for this exact model, but typically designed for efficient cooling, often labeled as “silent.”
Maximum Airflow: Not consistently specified in common listings for this exact model.
Maximum Static Pressure: Not consistently specified in common listings for this exact model.
Noise Level: Often described as “silent” for an inverter fan of this size, though a specific dB(A) is not widely listed.
Frame Material: Plastic
Impeller (Blade) Material: Plastic
Protection Functions: Typically includes Locked Rotor Burnout Protection and Reverse Polarity Protection, common for Nidec DC fans.
Operating Temperature Range: Not consistently specified in common listings.
Expected Life: 80,000 hours (for continuous operation, typically at 20°C).
Safety Approvals: Not consistently listed, but common for Nidec fans are UL, CE.
Mass: Approximately 0.10 – 0.13 lbs (around 45 – 60 grams)

The Nidec D04G-24TS2 01 is a compact 40x40x20mm DC axial fan, specifically designed for cooling applications in inverters and other electronic devices where quiet operation is desired. Running on 24VDC with a 0.17A current draw and 4.08W power, it utilizes durable dual ball bearings for extended reliability and a long expected life of 80,000 hours. This 2-wire fan is built with plastic frame and impeller, and includes essential protections such as locked rotor and reverse polarity, providing a robust and potentially “silent” thermal management solution for its size.
