Description
Model Number: D06F-12B3S1
Manufacturer: Nidec Corporation
Fan Type: DC Blower Fan
Dimensions L x W x H: 60 mm x 60 mm x 25 mm
Rated Voltage: 12 VDC
Rated Current: 0.33 A
Input Power: 3.96 W
Wiring: 3 Wire Leads
Bearing Type: Double Ball Bearing
Rotational Speed RPM: 5500 RPM
Maximum Airflow: 8.83 CFM
Maximum Static Pressure: 0.92 in H2O
Noise Level: 40.0 dBA
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Current limit protection
Operating Temperature Range: -10°C to +70°C
Mass: 50 g
Product Summary

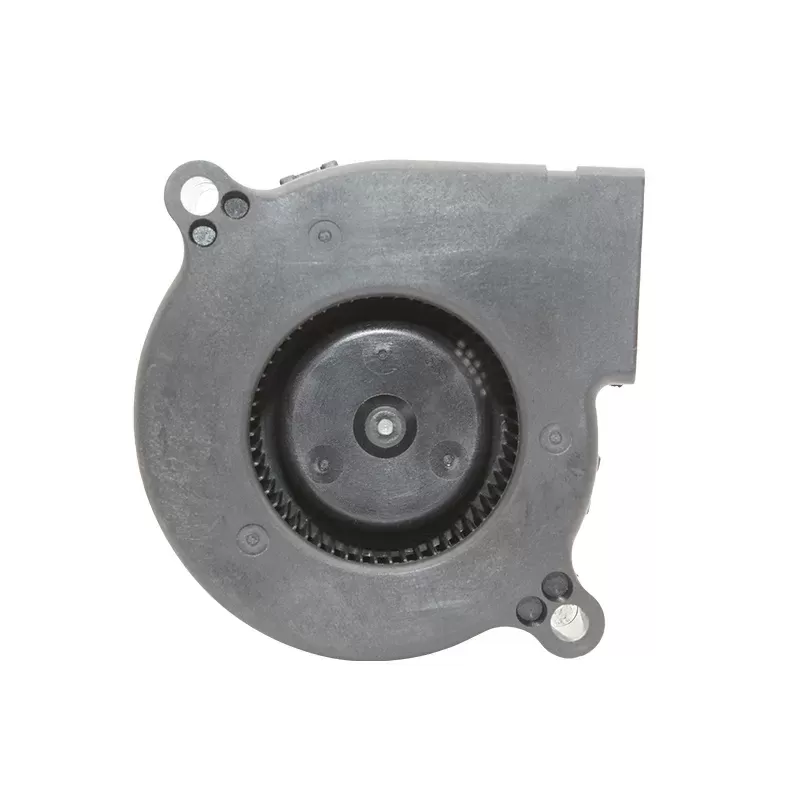

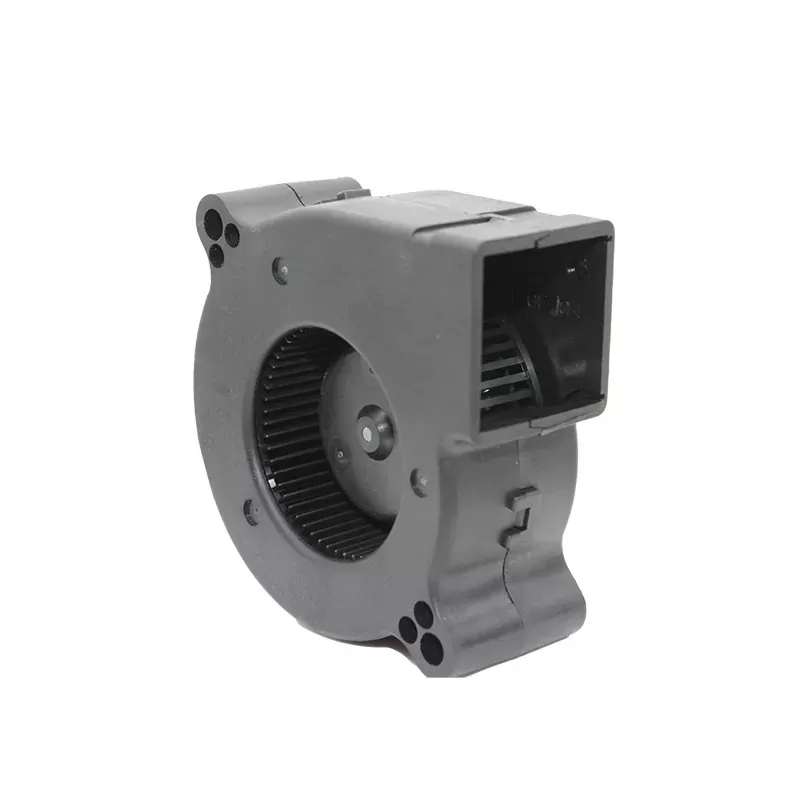

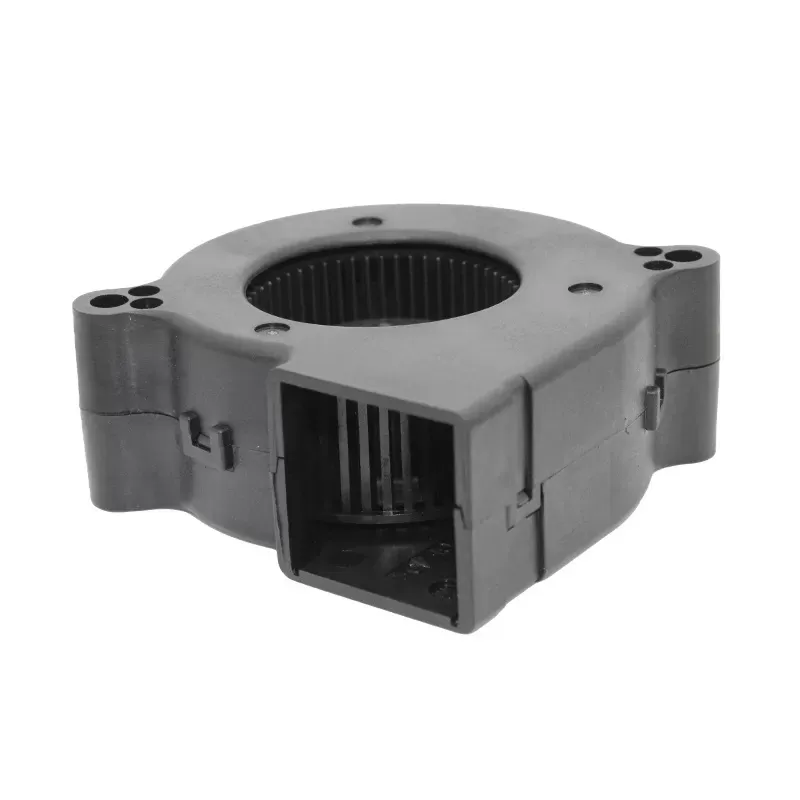

The Nidec D06F-12B3S1 is a compact and powerful 60x60x25mm DC blower fan from Nidec. Operating on 12VDC, it consumes 3.96W of power with a current draw of 0.33A. This fan features durable double ball bearings for extended reliability and a long lifespan. It delivers a concentrated airflow of 8.83 CFM at a high rotational speed of 5500 RPM, generating a significant static pressure of 0.92 in H2O, which is ideal for pushing air through restrictive pathways. With a noise level of 40.0 dBA, it provides strong cooling performance for its size. The 3-wire configuration likely includes a speed sensor for monitoring. This blower is an excellent choice for cooling projectors, certain server configurations, embedded systems, and other electronic devices that require forced air cooling through tight spaces or dense heatsinks.
D06F-12B3S1 6025 12V centrifugal fan 0.33A Japanese Nidec 6cm turbine blower
