Description

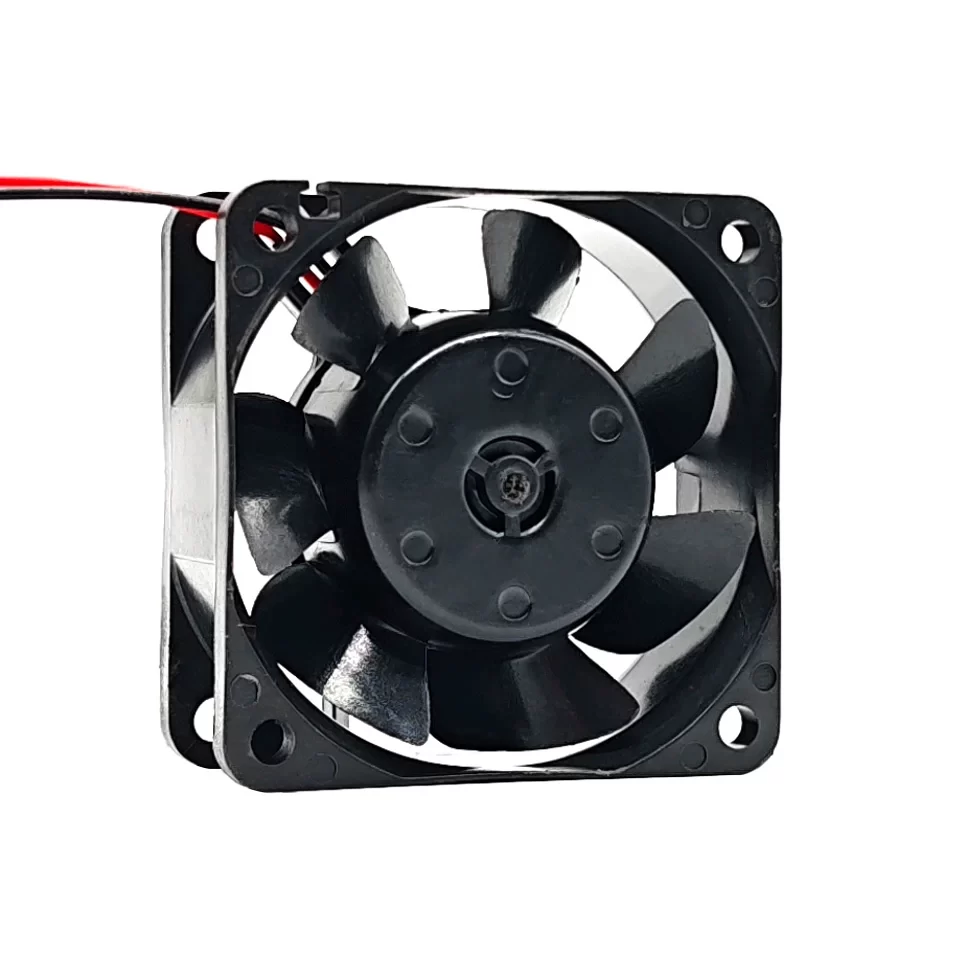

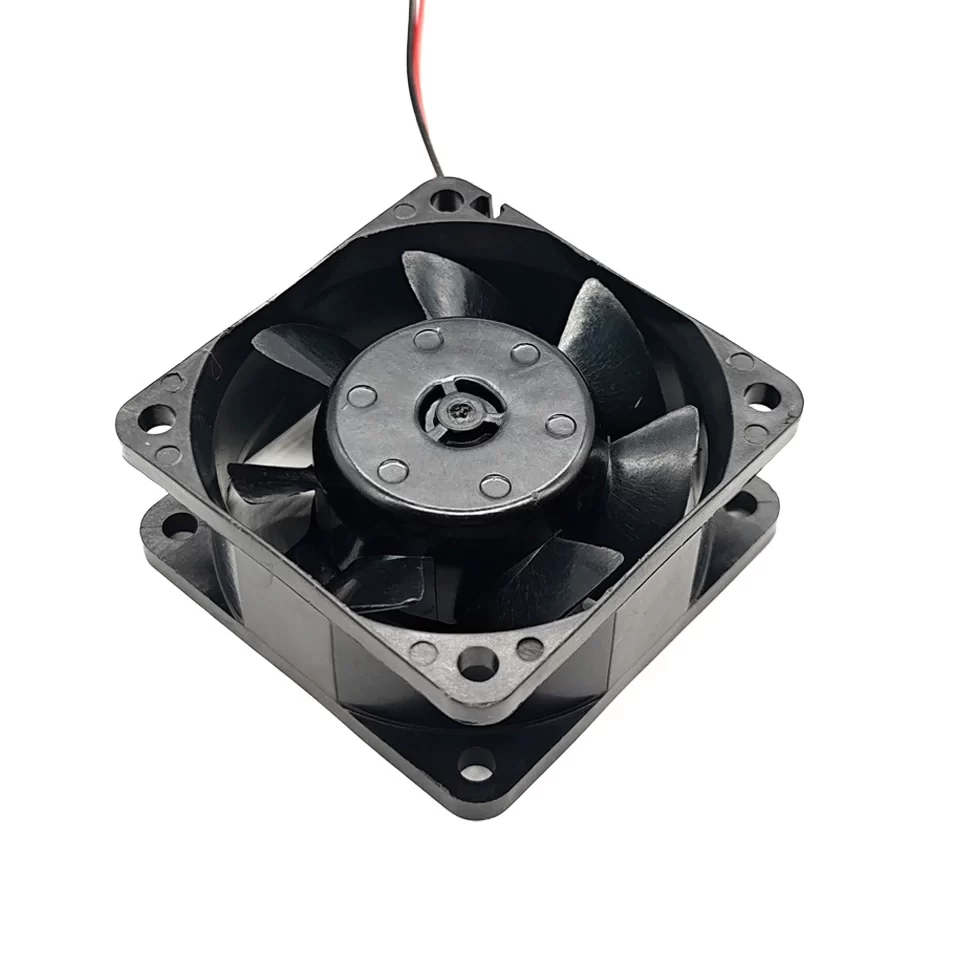

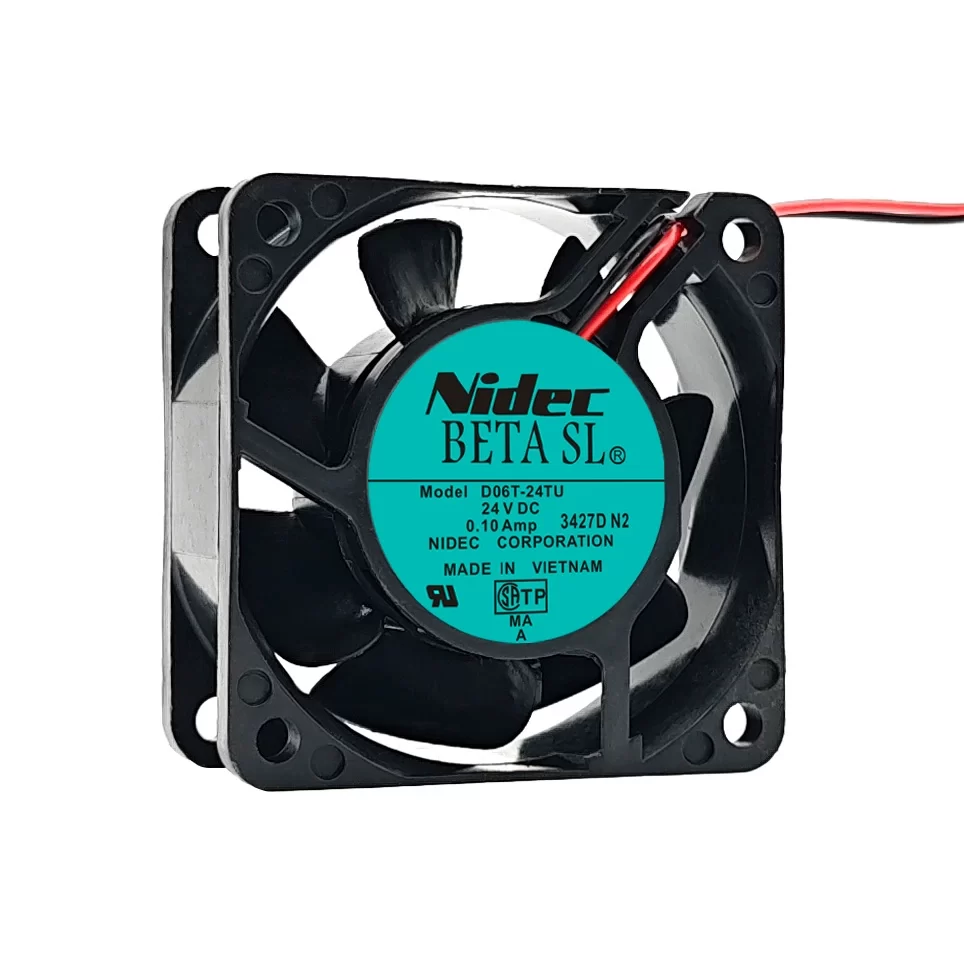

The Nidec D06T-24TU is a compact DC Axial Fan with dimensions of 60x60x25mm. It operates on a 24VDC power supply and is equipped with 2 wire leads for electrical termination, drawing 0.1A of current for a power consumption of 2.9W. This fan achieves a rotational speed of 5250RPM, delivering effective airflow with a low noise level of 30dBA. Its construction incorporates 2 ball bearings, which contribute to its robust durability and extended operational lifespan. It is engineered for efficient cooling in diverse electronic applications, and is widely used in computing, telecommunications, and industrial equipment for component cooling and ventilation.
D06T-24TU Fan Parameters
Model: D06T-24TU
Manufacturer: Nidec
Type: DC Axial Fan
Size: 60 x 60 x 25 mm
Nominal Voltage: 24 VDC
Current Draw: 0.1 A
Power Consumption: 2.9 W
Speed: 5250 RPM
Airflow: 21.2 CFM (0.60 m³/min)
Static Pressure: 4.6 mmH2O (0.18 inchH2O)
Noise Level: 30 dBA
Bearing Type: 2 Ball Bearings
Termination: 2 Wire Leads
Weight: 54 g
Application: Suitable for cooling electronic components, small enclosures, networking equipment, and various industrial or consumer electronics that require precise and quiet airflow.
