Description

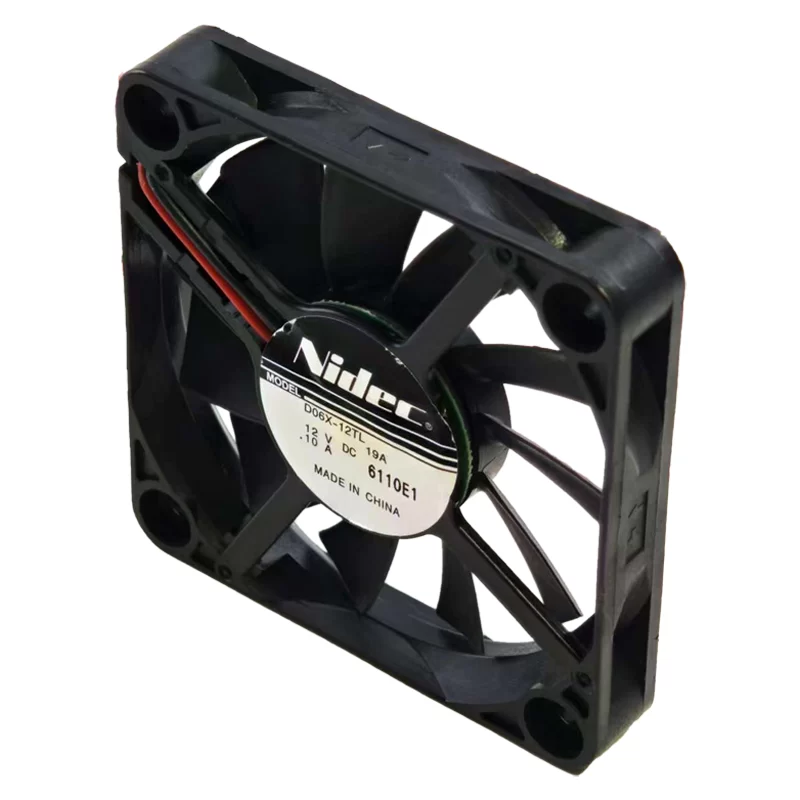

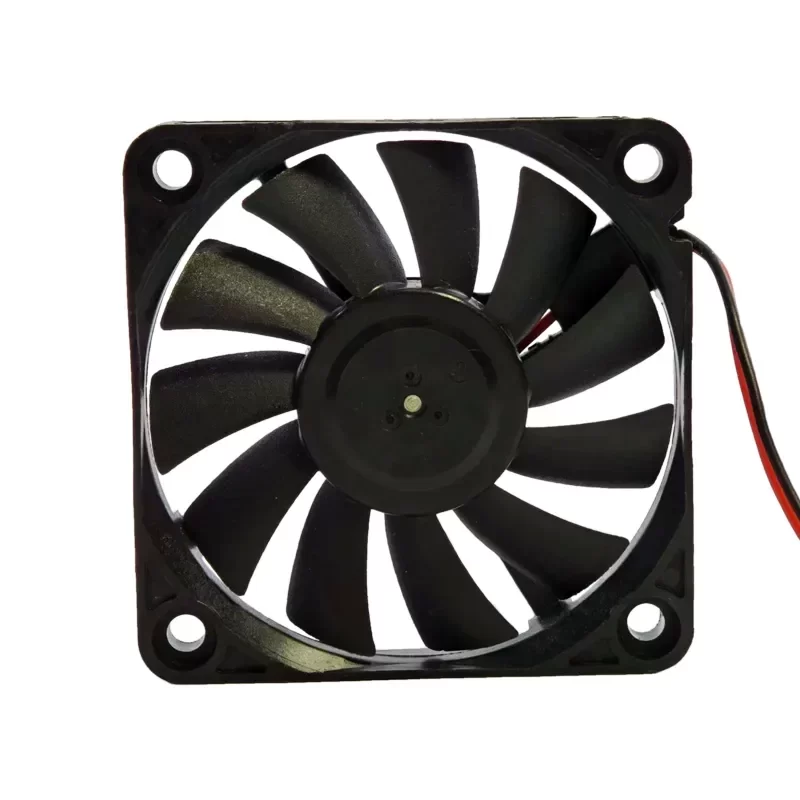

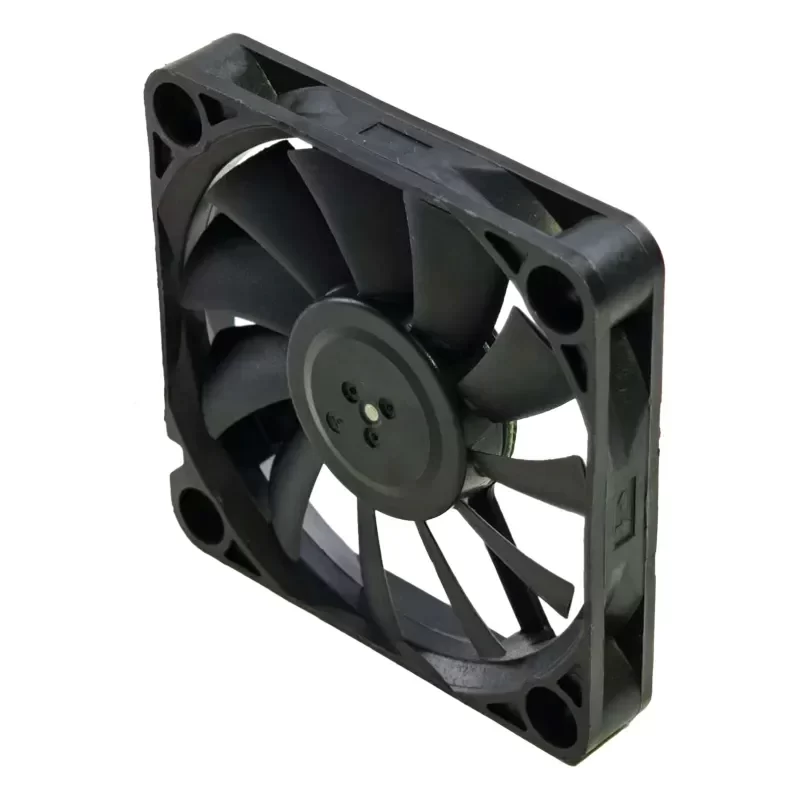

The Nidec D06X-12TL is a 12VDC axial fan with dimensions of 60x60x10mm. It is designed to provide efficient cooling for its size, reaching 13.4CFM (0.38m³/min) of airflow and generating up to 22Pa (0.09inchH₂O) of static pressure while operating at a speed of 3600RPM. This fan consumes 1.08W of power and draws 0.09A of current. It features durable ball bearings and is constructed with a plastic housing and impeller. For motor protection, it includes a current limit function. The fan operates effectively within a temperature range of -10 to 60°C. It is commonly used for cooling components in computer cases, small electronic devices, and other applications where a compact, low-noise cooling solution is required.
D06X-12TL Fan Parameters
Manufacturer: Nidec
Model: D06X-12TL
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 10 mm
Rated Voltage: 12 VDC
Current Rating: 0.09 A
Power Consumption: 1.08 W
Airflow: 13.4 CFM (0.38 m³/min)
Static Pressure: 22 Pa (0.09 inch H₂O)
Speed: 3600 RPM
Noise Level: 27 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Features: Current Limit Protection
Housing Material: Plastic (UL: V-0)
Impeller Material: Plastic (UL: V-0)
Operating Temperature: -10 ~ 60°C
Weight: 0.029 kg
Application: This Nidec DC axial fan is suitable for cooling components in computer cases, small electronic devices, and other applications requiring a compact, low-noise cooling solution.
