Description

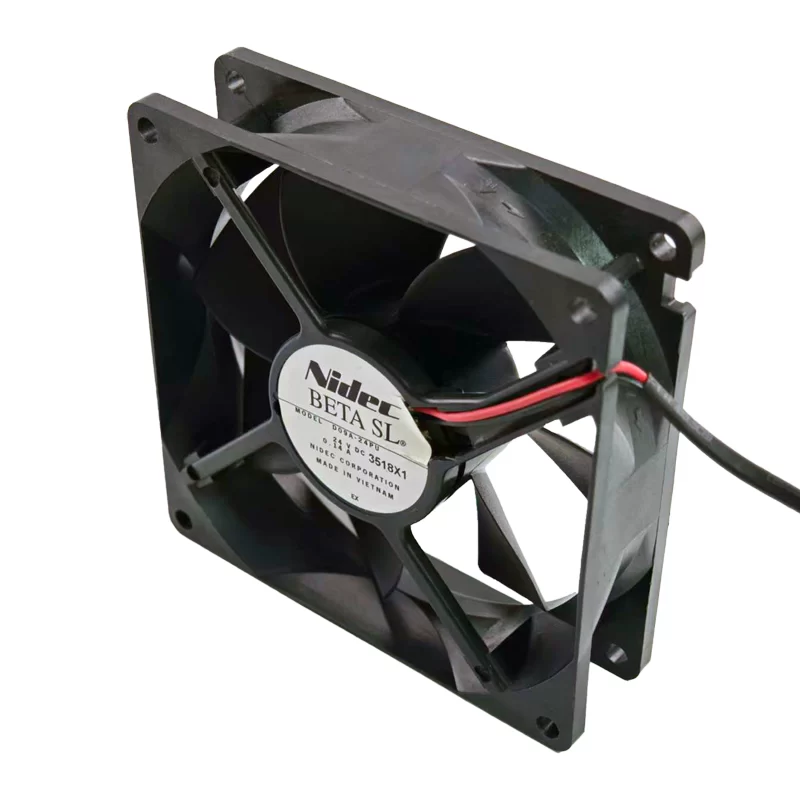

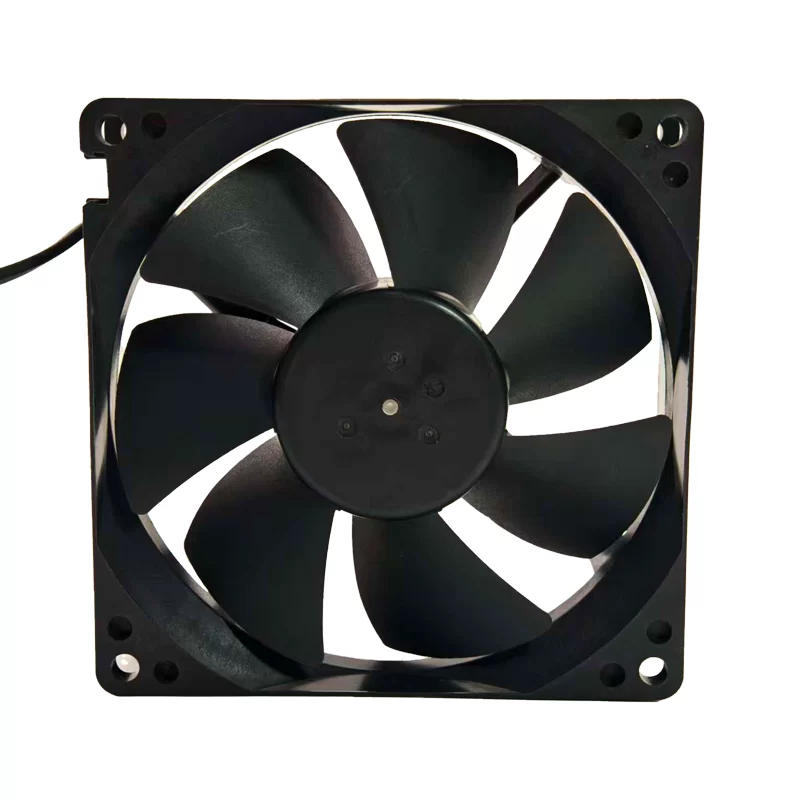

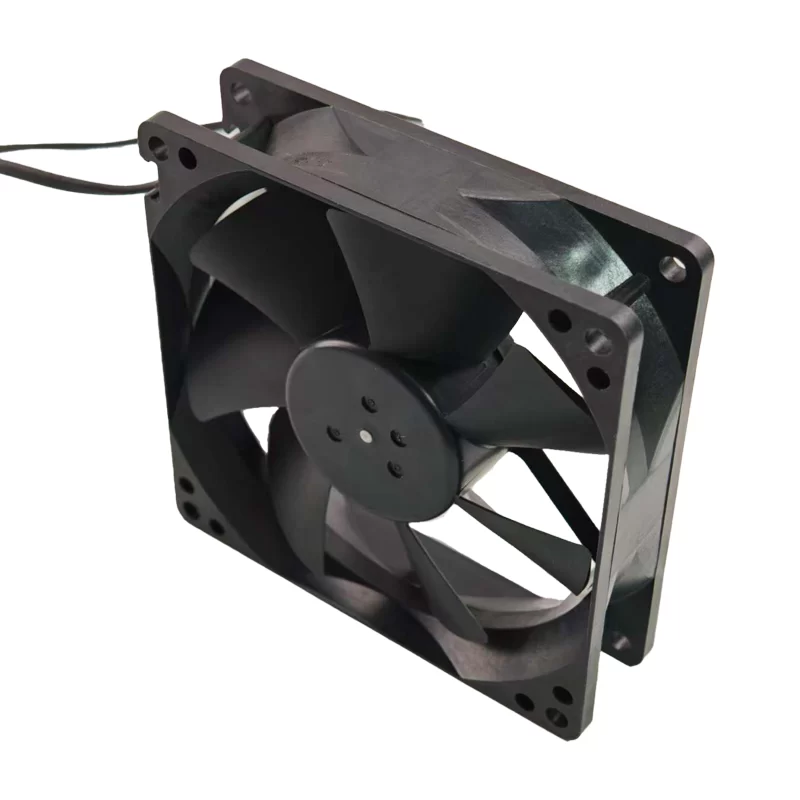

The Nidec D09A-24PU is a DC Axial Fan measuring 92×92×25 mm. Operating on 24 VDC, this fan has a rated current of 0.14 A and a power consumption of 3.36 W. The frame and impeller are constructed from Plastic (UL94V-0), and the fan features a Ball Bearing system for durability. This model is designed for reliable thermal management in compact electronic systems and industrial applications.
D09A-24PU Fan Parameters
Model: D09A-24PU
Manufacturer: Nidec Corporation
Fan Type: DC Axial Fan
Dimensions: 92×92×25 mm
Nominal Voltage: 24 VDC
Rated Current: 0.14 A
Rated Power: 3.36 W
Number of Blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Bearing System: Ball Bearing
Termination Type: 2 Wires
Operating Temperature: −10∘C to +70∘ C
Safety Approvals: CE, CSA, UL, VDE
Application
The D09A-24PU is well-suited for cooling requirements in compact electronic systems, computer peripherals, and various instrumentation where space is limited and a reliable 24V DC fan with safety compliance (UL, CE) is required for thermal management.
