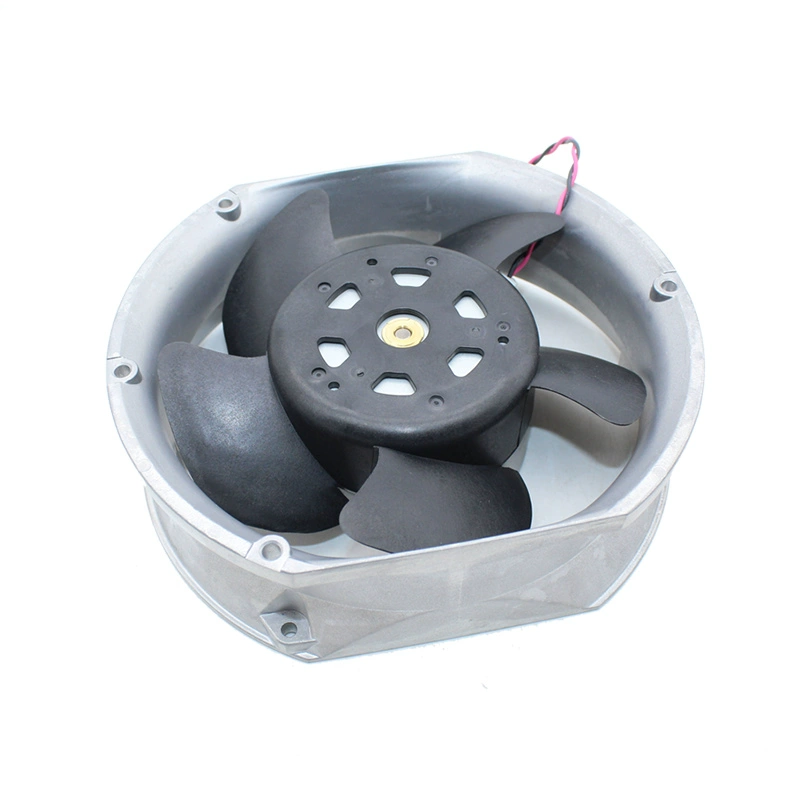

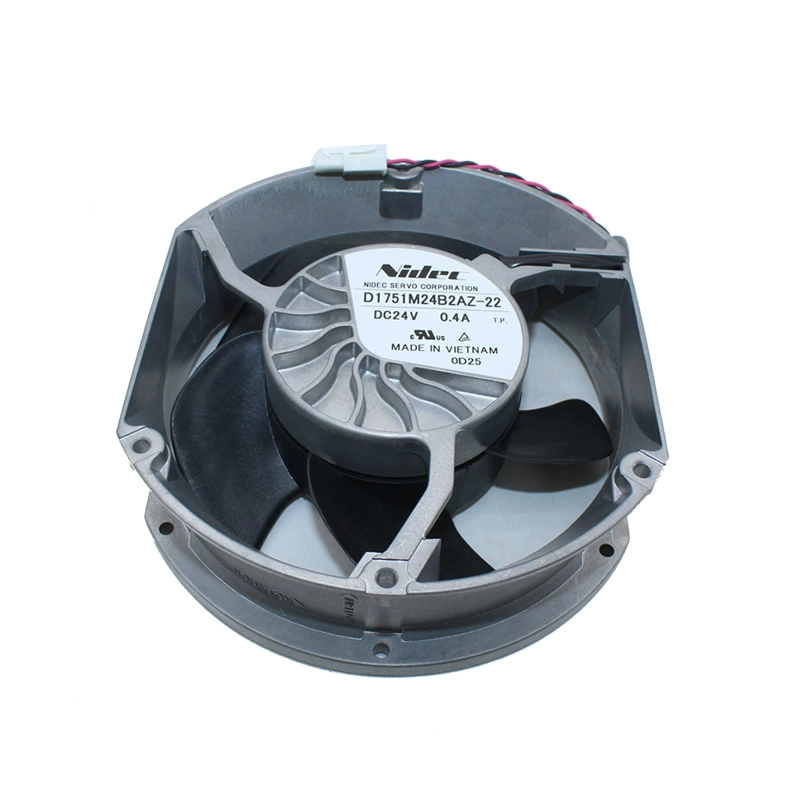

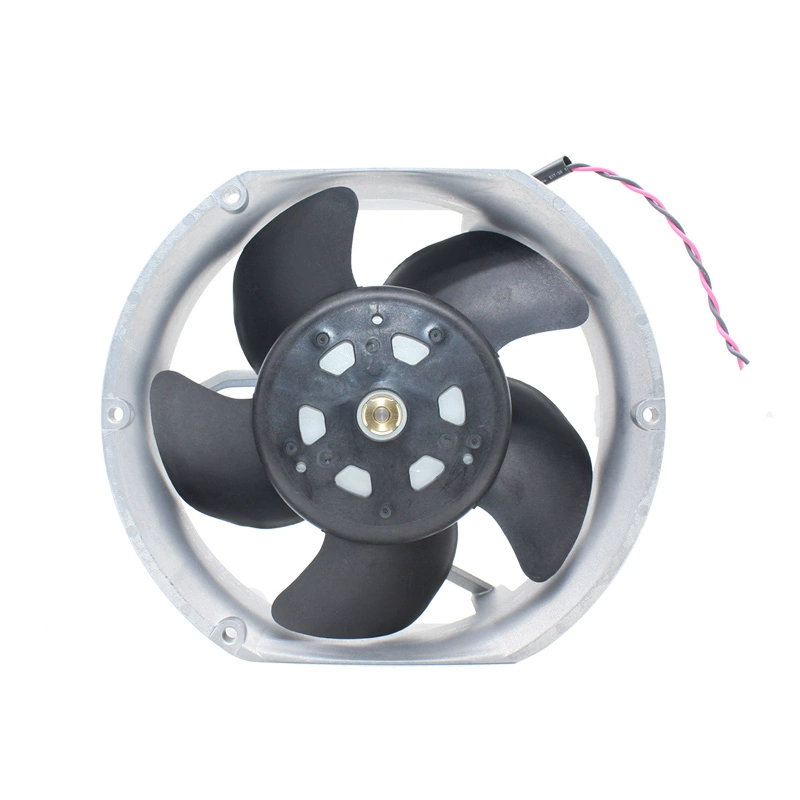

D1751M24B2AZ-22 Nidec DC 24V 0.4A axial fan

Description

The NIDEC D1751M24B2AZ-22 is a powerful DC Axial Cooling Fan manufactured by NIDEC, designed for robust thermal management in industrial and electronic systems. Operating on 24V DC power, it draws 0.40A of current, resulting in a 9.6W power consumption. Measuring 172mm x 172mm x 51mm, this fan rotates at a speed of 2800 RPM, delivering a substantial airflow of 205 CFM and a static pressure of 0.48 inch-H2O. It produces a noise level of 49 dBA. Equipped with 2-wire leads and utilizing ball bearings, the fan features a durable aluminum alloy die-cast frame and an impeller made from ABS and PBT synthetic resins. It includes protective features such as overcurrent detection with automatic resetting, reverse polarity protection, and auto-restart, ensuring reliable and long-lasting operation in demanding environments within an operating temperature range of -20°C to 70°C.
D1751M24B2AZ-22 Nidec DC 24V 0.4A 17251 inverter aluminum frame cooling fan

Manufacturer:Nidec
Model Number: D1751M24B2AZ-22
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Rated Current: 0.40A
Rated Power: 9.6W
Dimensions: 172mm x 172mm x 51mm
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Speed: 2800 RPM
Airflow: 205 CFM (5.8 m³/min)
Static Pressure: 0.48 inch-H2O (120 Pa)
Noise Level: 49 dBA
Frame Material: Aluminum alloy die casting
Impeller Material: ABS and PBT synthetic resins
Features: Overcurrent detection and automatic resetting by current limiting, Reverse Polarity Protection, Auto Restart
Operating Temperature: -20°C to 70°C
