Description

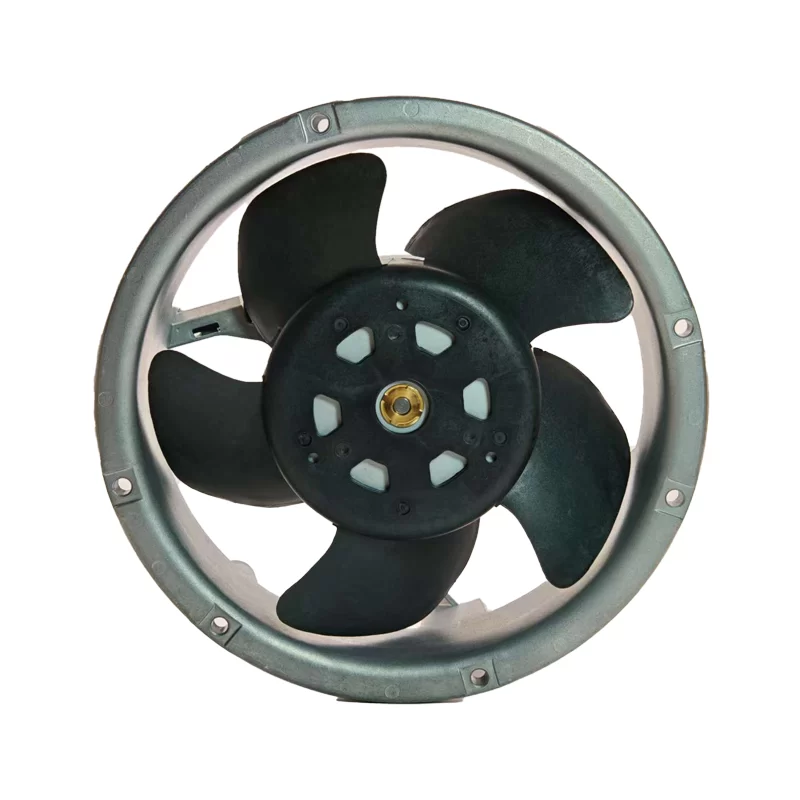

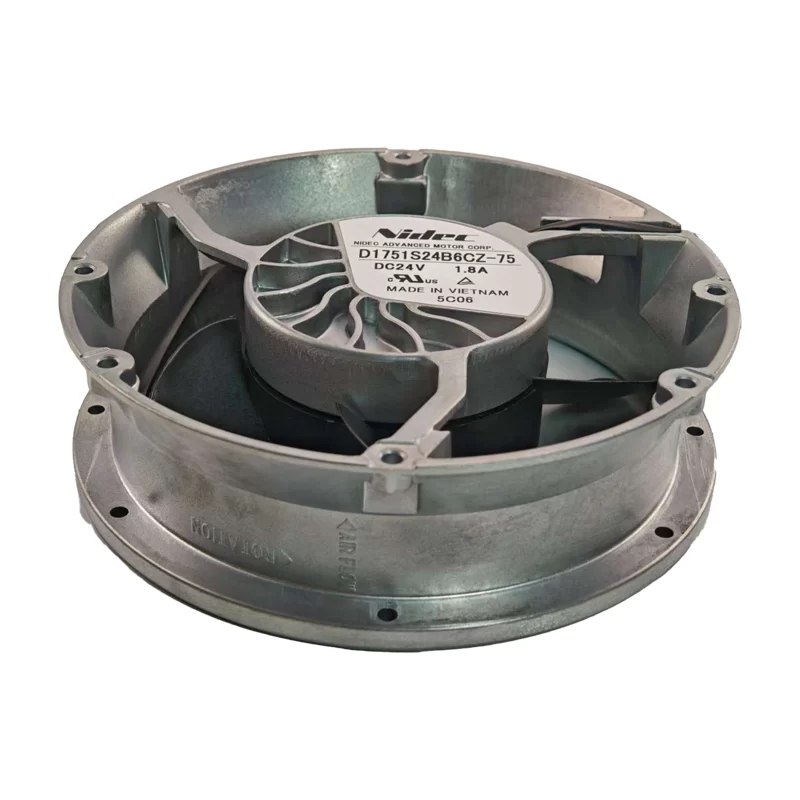

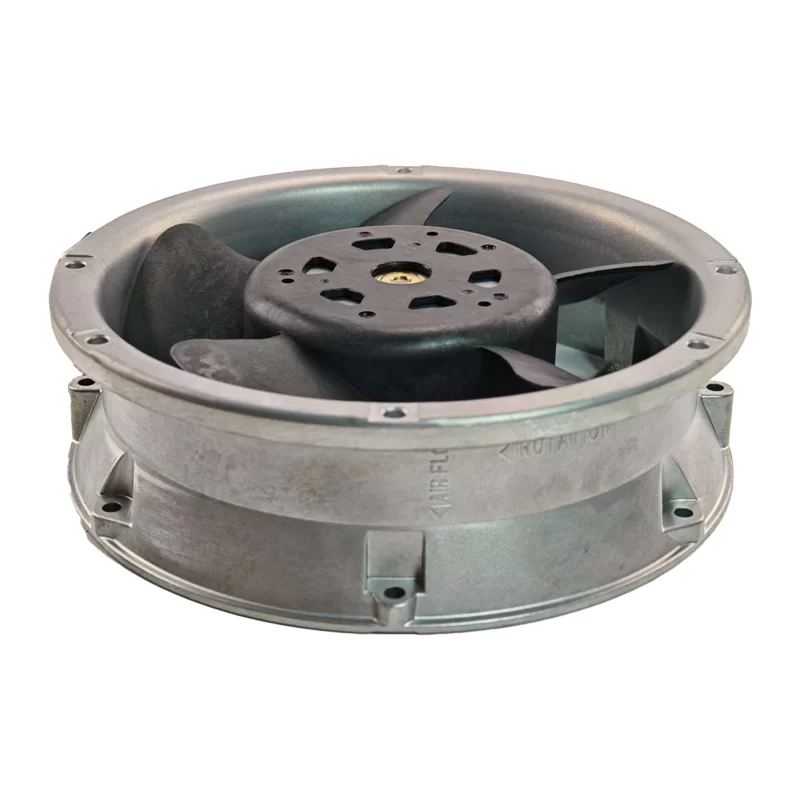

The Nidec D1751S24B6CZ-75 is a 172x172x51mm DC axial fan operating at 24V DC. This fan is engineered for high-performance thermal management, drawing 1.8A of current and consuming 43.2W. It achieves a rotational speed of 6950 RPM, delivering a maximum airflow of 14 m³/min (494.4 CFM) and generating a maximum static pressure of 640 Pa. Utilizing ball bearings, this model is designed for reliability and extended operational life, making it suitable for demanding applications in industrial automation and power electronics.
D1751S24B6CZ-75 Fan Parameters
Model Number: D1751S24B6CZ-75
Manufacturer: Nidec-Copal
Type: DC Axial Fan
Dimensions: 172mm x 172mm x 51mm
Rated Voltage: 24 VDC
Rated Current: 1.8A
Rated Power: 43.2 W
Speed: 6950 RPM
Max. Airflow: 14 m³/min (494.4 CFM)
Max. Static Pressure: 640 Pa
Bearing Type: Ball Bearing
Weight: 830 g
Operating Temperature: -20°C to +75°C
Electrical Connection: 2-wire leads
Application: ABB inverters, industrial automation, power converters, high-density electronic cooling.
