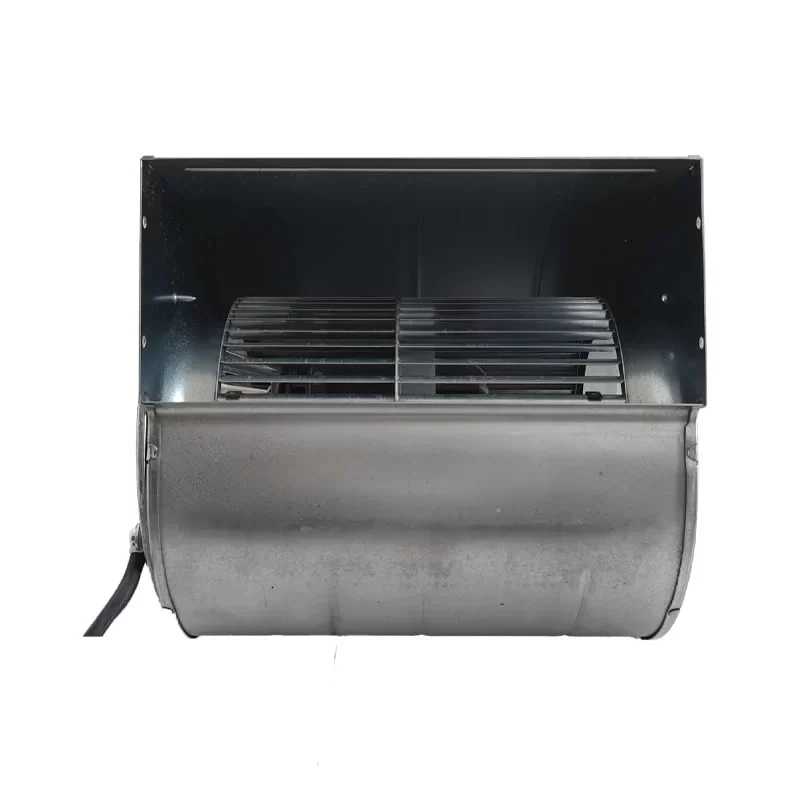

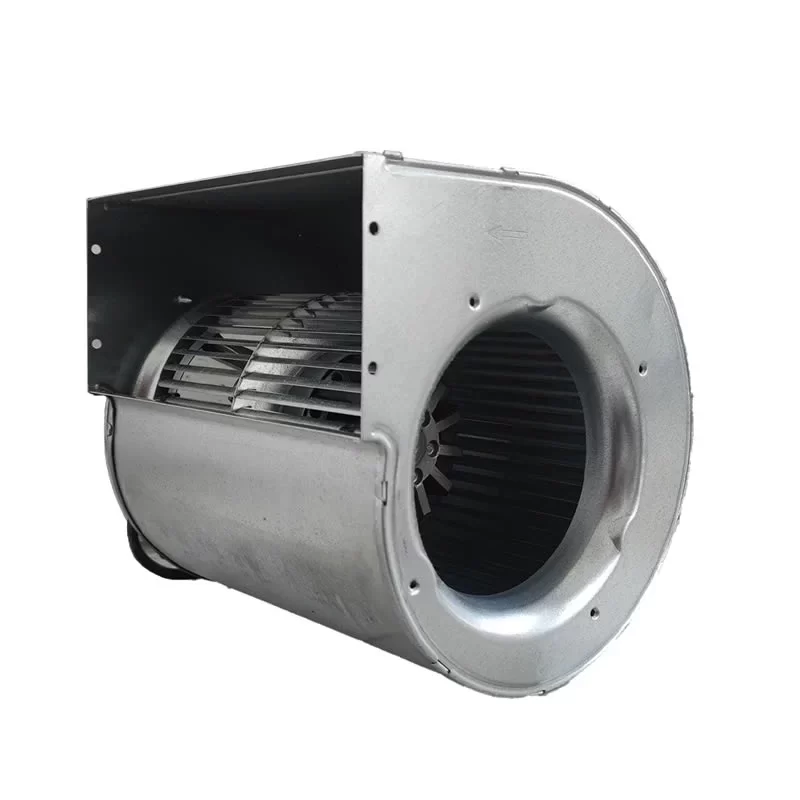

D2D146-AF02-14 ebmpapst 230/400V AC Centrifugal Blower

Description

The ebmpapst D2D146-AF02-14 is a high-performance 3-phase AC Dual Inlet Centrifugal Blower with a 146 mm impeller diameter, designed for high-static pressure industrial cooling and ventilation. Powered by the M2D068-EC (Size 68) external rotor motor, this unit offers exceptional electrical flexibility, supporting 230 VAC Delta (Δ) or 400 VAC Star (Y) wiring configurations. It delivers a maximum air pressure of 200 Pa at 50 Hz (2100 RPM) and up to 240 Pa at 60 Hz (2200 RPM). The blower is constructed with a galvanized sheet steel scroll housing and a forward-curved impeller, ensuring durability and corrosion resistance. With a power input of 345 W (50 Hz) and 410 W (60 Hz), this 4.3 kg unit provides reliable S1 continuous-duty performance. Featuring an IP00 protection rating and H0+ environmental class, the D2D146-AF02-14 is an ideal air-moving solution for integrated industrial machinery, laboratory equipment, and 230/400V 3-phase HVAC infrastructure.

D2D146-AF02-14 Fan Parameters
Manufacturer: ebmpapst (Germany)
Model Number: D2D146-AF02-14
Motor Model: M2D068-EC (Size 68)
Phase: 3~
Type: AC Dual Inlet Centrifugal Blower (Forward-curved)
Impeller Size: 146 mm
Dimensions: 205 mm (Height) x 232 mm (Width) x 219 mm (Total Depth)
Nominal Voltage: 230 VAC (Δ) / 400 VAC (Y)
Frequency: 50 / 60 Hz

[50 Hz Operation Data]
– Speed: 2100 RPM
– Power Consumption: 345 W
– Current Draw: 0.93 A (Δ @ 230V) / 0.54 A (Y @ 400V)
– Static Pressure: 200 Pa

[60 Hz Operation Data]
– Speed: 2200 RPM
– Power Consumption: 410 W
– Current Draw: 1.06 A (Δ @ 230V) / 0.61 A (Y @ 400V)
– Static Pressure: 240 Pa

Weight: 4.3 kg
Rotor Surface: Unpainted
Impeller Material: Sheet steel, galvanized
Housing Material: Sheet steel, galvanized
Number of Blades: Forward-curved design
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Degree of Protection: IP00 (Installation and position dependent)
Insulation Class: F
Moisture/Environmental Protection: H0+
Installation Position: Any
Condensation Drainage: None (Open rotor)
Mode of Operation: S1 (Continuous duty)
Motor Bearing: Ball bearing
Touch Current: < 0.75 mA (per IEC 60990, TN system)
Electrical Hookup: Axial cable
Protection Class: I (with customer connection of protective earth)
Conformity & Approvals: EN 60335-1; CE; CCC

Application
The ebmpapst D2D146-AF02-14 is a robust air-moving component for laboratory fume hoods, localized industrial process cooling, and integrated ventilation systems in machinery. Its 146 mm forward-curved galvanized impeller is optimized to maintain high static pressure (200-240 Pa), making it ideal for forcing air through dense heat exchangers or ducting. The dual-voltage 230/400V 3-phase M2D068-EC motor provides versatile electrical integration for global industrial power grids. With its compact 4.3 kg galvanized steel construction and S1 continuous-duty rating, the D2D146 provides high-velocity, reliable cooling for mission-critical industrial infrastructure where precise thermal management is required in dry environmental conditions.
