Description

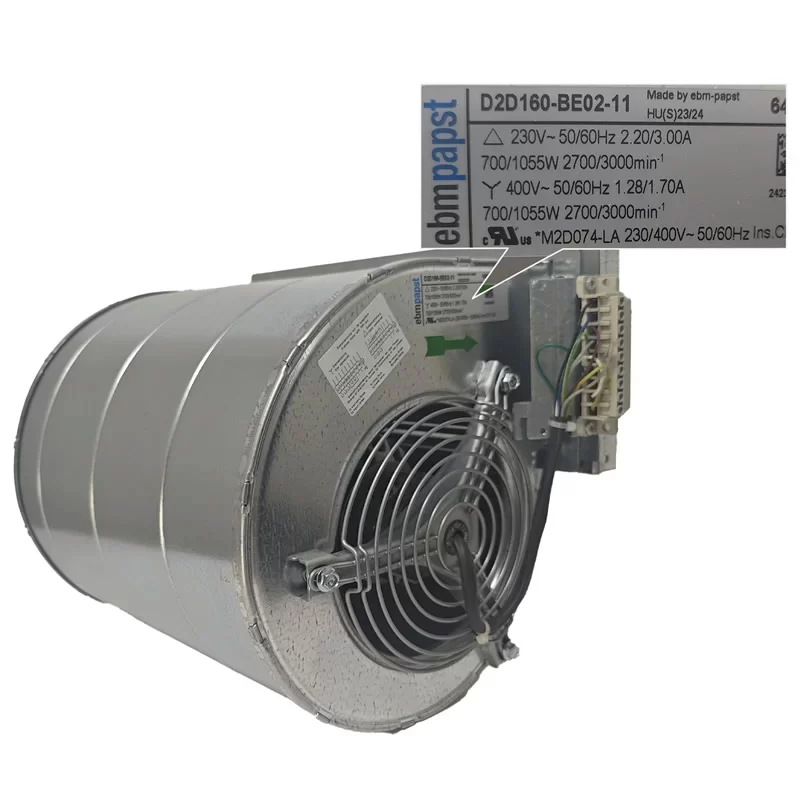

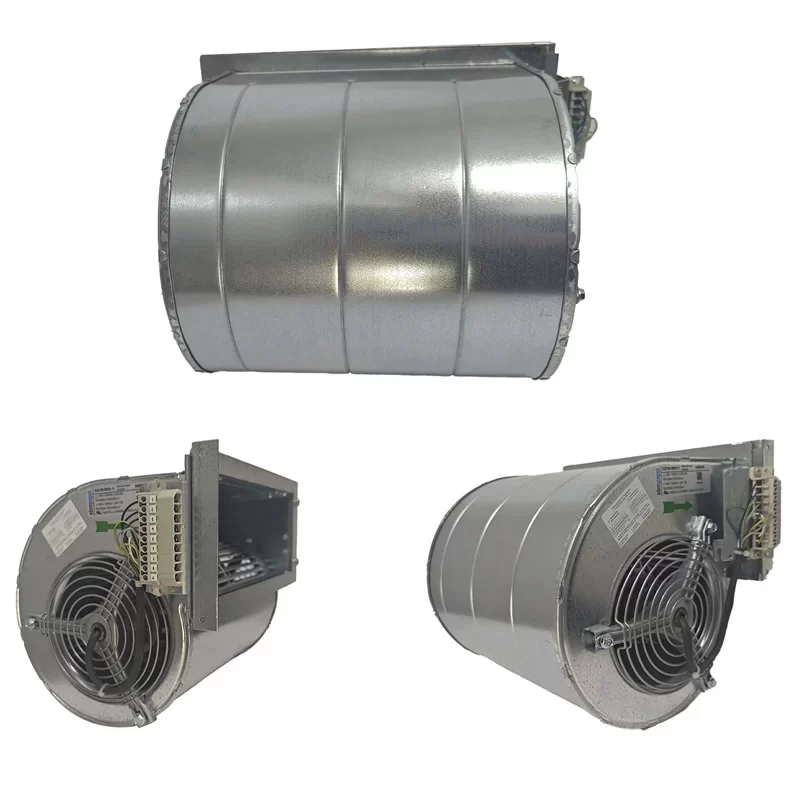

The ebmpapst D2D160-BE02-11 is a powerful three-phase AC Forward-Curved Centrifugal Fan with an M2D074-LA motor, designed for heavy-duty thermal management. Measuring 160 mm in size and weighing 10.9 kg, this fan offers dual-voltage and dual-frequency operation. Delta (Δ) Connection at 230 VAC (230/240V) and 50/60 Hz achieves 2700/3000 RPM respectively, with a current draw of 2.20/3.00 A and a power consumption of 700/1055 W. Star (Y) Connection at 400 VAC and 50/60 Hz also achieves 2700/3000 RPM, with a current draw of 1.28/1.70 A and a power consumption of 700/1055 W.
Constructed with a sheet steel, hot-galvanised impeller and housing, and featuring an IP00 degree of protection and Insulation class “F”, the fan is designed for durability and anti-vibration mounting. It utilizes a Ball bearing system and has a wide permissible ambient temperature range from -40 °C to +80 °C. The fan is approved to standards including CCC, CSA C22.2 Nr.100, and UL 1004-1. Its primary use is for critical forced air cooling of high-power equipment, particularly inverters and electrical drives.
D2D160-BE02-11 Fan Parameters
Manufacturer: ebmpapst
Model: D2D160-BE02-11
Type: Centrifugal Fan, Forward-Curved, Dual Inlet
Nominal Voltage: 230/400 VAC
Phase: 3~
Frequency: 50/60 Hz
Motor: M2D074-LA
Size: 160 mm
Mass: 10.9 kg
Degree of Protection: IP00
Insulation Class: F
Humidity Class: F2-1
Operation Mode: S1
Motor Bearing: Ball bearing
Touch Current: < 0.75 mA
Electrical Leads: With plug
Motor Protection: Thermal Overload Protector (TOP) brought out
Cable Exit: Axial
Protection Class: I (if protective earth is connected by customer)
Product Conforming to Standard: EN 60335-1; CE
Approval: CCC; CSA C22.2 Nr.100; UL 1004-1
Direction of Rotation: Counter-clockwise, seen on rotor
Mounting Position: Any
Condensate Discharge Holes: None, open rotor
Surface of Rotor: Rotor open, coated in black
Impeller Material: Sheet steel, hot-galvanised
Housing Material: Sheet steel, hot-galvanised
Material of Guard Grille: Steel, galvanised and plastic-coated in white aluminium
Motor Suspension: Motor anti-vibration mounted on both sides
Max Permissible Ambient Temp (transp./storage): + 80 °C
Min Permissible Ambient Temp (transp./storage): – 40 °C
Performance Data (Combined Δ230 V and Y400 V)
Speed: 2700/3000 RPM
Power Consumption: 700/1055 W
Performance Data (Δ Connection)
Nominal Voltage: 230/240 VAC
Current Draw: 2.20/3.00 A (50/60 Hz)
Performance Data (Y Connection)
Nominal Voltage: 400 VAC
Current Draw: 1.28/1.70 A (50/60 Hz)
Application
This high-specification fan is designed for critical forced air cooling in industrial applications, including the thermal management of high-power inverters, electrical drives, and general HVAC systems where reliable, high-pressure airflow is required.
