Description

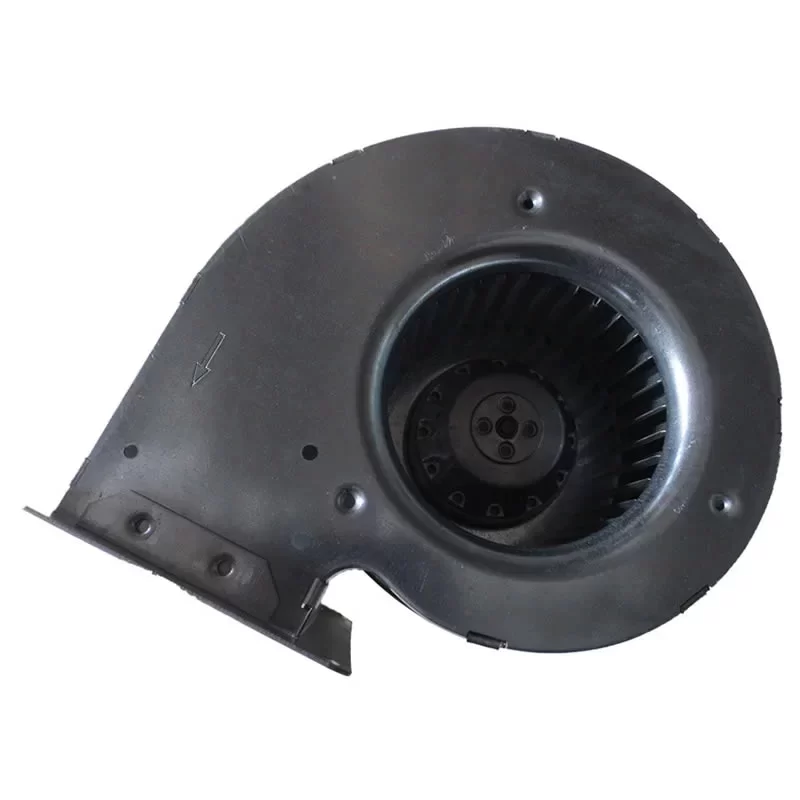

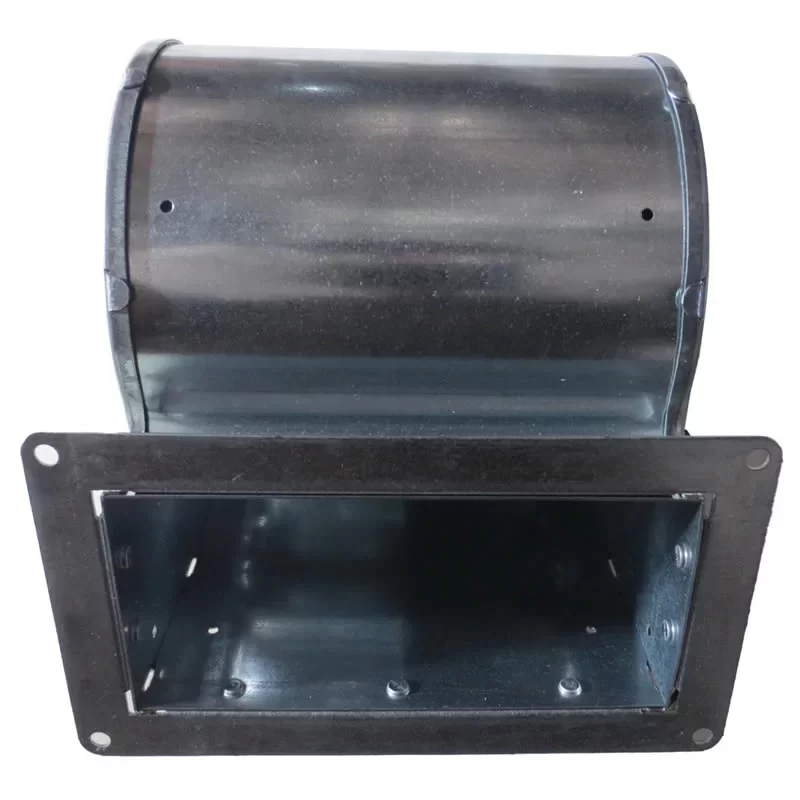

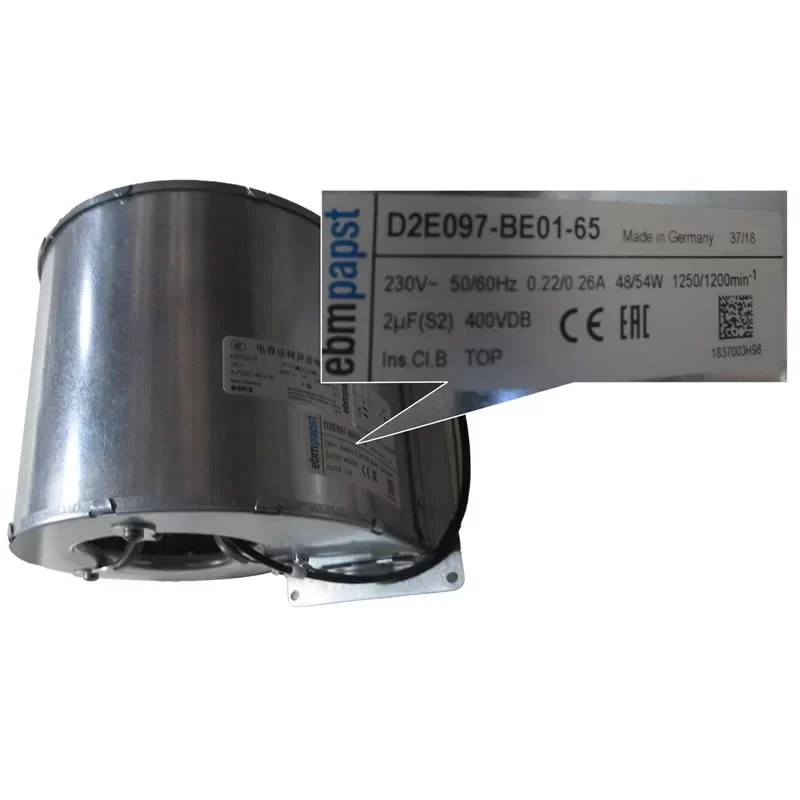

The ebmpapst D2E097-BE01-65 is a high-performance 230VAC single-phase AC Centrifugal Blower with a dual-inlet design and an impeller diameter of 97 mm. Specifically engineered for mission-critical cooling in medical technology and laboratory equipment, this unit features overall dimensions of 180 x 162 x 165 mm. Driven by the M2E042-CA external rotor motor with maintenance-free ball bearings, it operates on a 230 VAC supply, delivering a Power Consumption of 48 W (50 Hz) / 54 W (60 Hz) and a Current Draw of 0.22 A / 0.26 A at a rated speed up to 1250 RPM under free air conditions. Requiring a 2.0 µF / 400 VDB capacitor for operation, this unit features a motor mounted with brackets on one side for vibration damping and a rugged galvanized sheet steel housing. Optimized for continuous S1 environments, it ensures superior thermal management with IP22 protection and an extended service life at the end.
D2E097-BE01-65 Fan Parameters
Model Number: D2E097-BE01-65
Motor Model: M2E042-CA
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Forward-curved, dual-intake)
Size: 97 mm
Dimensions: 180 x 162 x 165 mm
Weight: 1.3 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.22 / 0.26 A
Power Consumption: 48 / 54 W
Capacitor: 2.0 µF
Capacitor Voltage: 400 VDB
Rated Speed: 1250 / 1200 RPM
Max. Air Flow: 111.83 / 123.60 CFM (190.0 / 210.0 m³/h / 3.17 / 3.50 m³/min)
Max. Static Pressure: 17.34 / 21.41 mmH₂O (170.0 / 210.0 Pa / 0.68 / 0.84 inH₂O)
Motor Suspension: Motor mounted with brackets on one side for vibration damping
Noise Level: 50.0 / 56.0 dB(A)
Touch Current: < 0.75 mA
Insulation Class: “B”
Degree of Protection: IP22
Protection Class: I
Moisture (F) / Environmental (H) protection class: H0+
Impeller Material: Sheet steel, galvanized
Housing Material: Sheet steel, galvanized
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Installation Position: Any
Mode: S1
Ambient Temperature (Max.): 55 / 50 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE
Approval: EAC; CCC
Application
The ebmpapst D2E097-BE01-65 fan is the primary cooling component for laboratory equipment, laser power supplies, and medical diagnostic devices requiring compact 230V airflow from a dual-inlet blower.
