D2E097-BI56-02 ebmpapst 230V 0.39A fan

Description

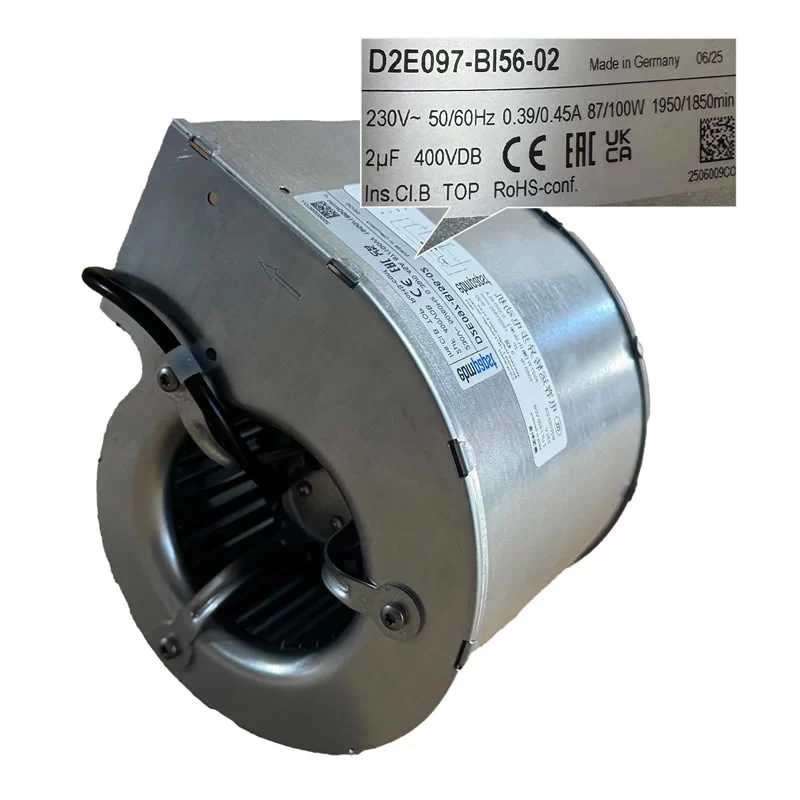

The ebmpapst D2E097-BI56-02 is a high-performance 1~ AC dual-inlet centrifugal blower powered by the M2E052-CA motor. Operating at a nominal voltage of 230 VAC, this industrial unit features a 97 mm impeller diameter with forward-curved blades, housed in a robust hot-dip galvanized sheet steel casing. At 50 Hz, it delivers a rated speed of 1950 RPM with a power consumption of 87 W, while at 60 Hz it reaches 1850 RPM with a consumption of 100 W. Designed for versatile installation in any position, the blower is equipped with maintenance-free ball bearings and an internally connected thermal overload protector (TOP). Its dual-inlet design and galvanized construction make the D2E097-BI56-02 an ideal, high-pressure thermal management solution for HVAC units, cleanroom technology, and industrial ventilation systems.

D2E097-BI56-02 Fan Parameters
Manufacturer: ebmpapst
Model Number: D2E097-BI56-02
Motor Model: M2E052-CA (Size 52)
Type: AC Centrifugal Blower (Dual Inlet)
Phase: 1~
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Dimensions: 180 x 162 x 165 mm
Impeller Size: 97 mm
Weight: 1.6 kg

[Electrical Data]
Rated Speed: 1950 / 1850 RPM
Power Consumption: 87 / 100 W
Current Draw: 0.39 / 0.45 A
Capacitor: 2.0 µF / 400 VDB

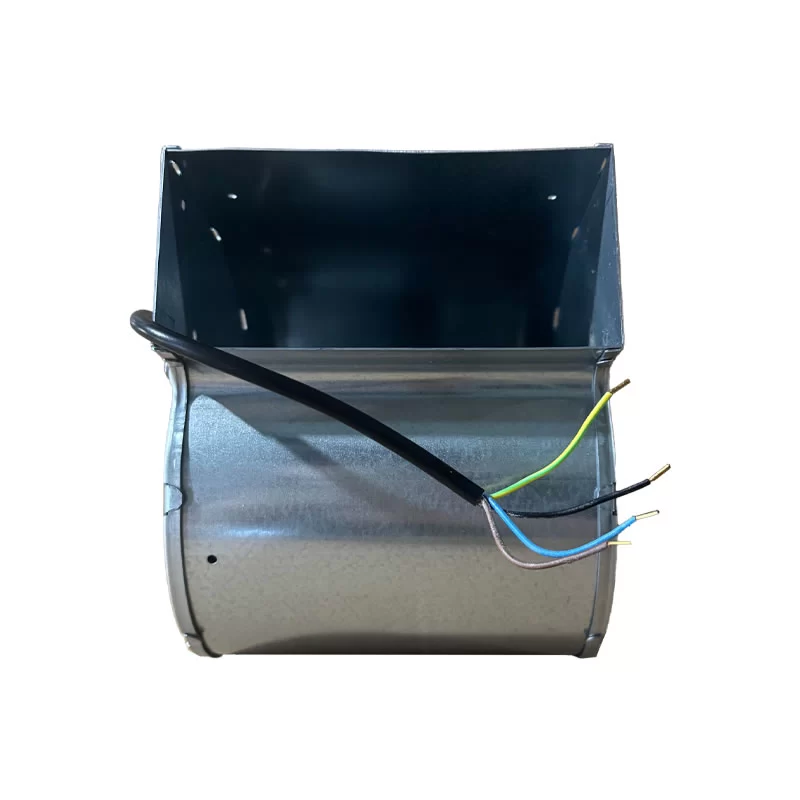

Termination: 4 Wire Leads (Wire ends stripped)
Insulation Class: B
Motor Bearing: Ball Bearing

[Performance & Acoustics]
Max. Air Flow: 435 m³/h (256.0 CFM)
Min. Back Pressure: 0 Pa (0 inAq)
Sound Pressure Level: 58 dB(A)
Degree of Protection: IP20
Touch Current: < 0.75 mA (IEC 60990)

[Materials & Construction]
Housing Material: Sheet steel, hot-dip galvanized
Impeller Material: Sheet steel, hot-dip galvanized
Rotor Surface: Partly cast in aluminum
Motor Suspension: Motor mounted with brackets on one side
Direction of Rotation: Counterclockwise, viewed toward rotor
Installation Position: Any
Condensation Drainage: None, open rotor
Mode: S1 (Continuous operation)

[Reliability & Protection]
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 40 °C (50Hz) / 35 °C (60Hz)
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Motor Protection: Thermal overload protector (TOP) internally connected
Protection Class: I (Requires protective earth connection)
Conformity: EN 60335-1; CE
Approval: CCC, EAC

Application
The ebmpapst D2E097-BI56-02 dual-inlet blower is specifically engineered for high-static pressure environments such as air conditioning fan coils, industrial air curtains, and localized cooling for large power electronics. Its dual-inlet configuration allows for higher airflow volumes within a compact footprint compared to single-inlet models. The galvanized steel construction ensures long-term resistance to environmental stress, while the M2E052-CA motor provides the reliability needed for 24/7 continuous operation. With its 230V AC input and integrated thermal burnout protection, this blower is a trusted component in medical ventilation systems, laboratory exhaust hoods, and modern building climate control infrastructures.
