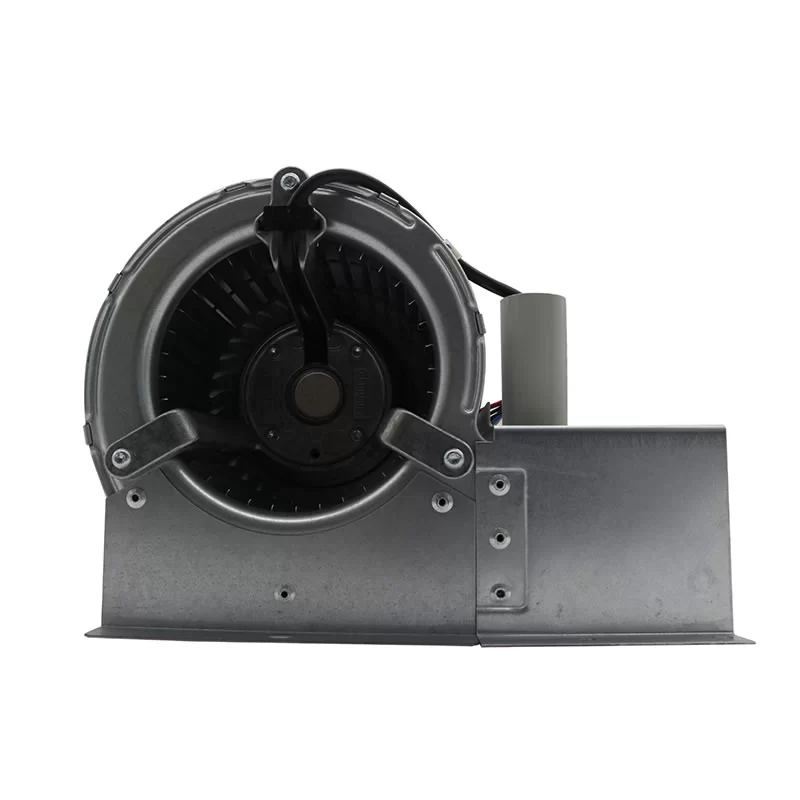

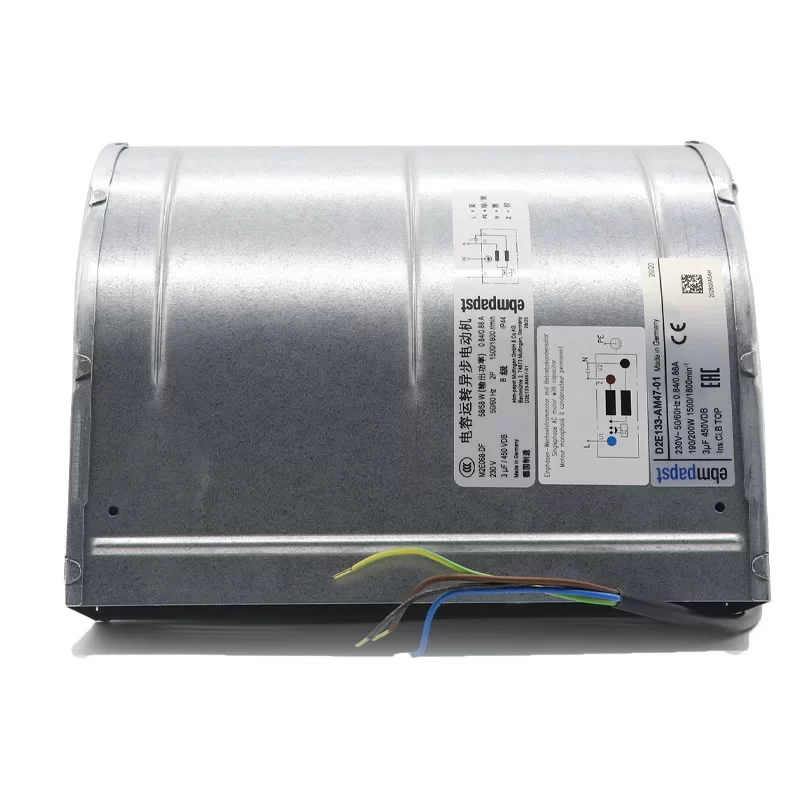

D2E133-AM47-01 ebmpapst 230V AC Centrifugal Fan 170mm

Description

The ebmpapst D2E133-AM47-01 is an AC Centrifugal Fan (Forward Curved, Dual Inlet) with dimensions of 171 x 180 x 215 mm. It operates on a single-phase nominal voltage of 230 VAC at 50/60 Hz2. At 50 Hz, the fan operates at a free air speed of 1500 RPM 3, consuming 190 W of power 4and achieving a maximum air flow of 710 m³/h (418.8 CFM)5. At 60 Hz, the fan reaches 1800 RPM 6with a maximum power input of 200 W 7and draws a maximum current of 0.88 A8. It achieves a high maximum static pressure of 375 Pa (1.505 inAq)9. Featuring a hot-galvanised sheet steel casing and an IP44 protection rating10, this fan is a robust solution for high-volume, high-pressure industrial and air handling applications.

D2E133-AM47-01 Fan Parameters
Model: D2E133-AM47-01
Manufacturer: ebmpapst
Motor Model: M2E068-DF
Type: AC Centrifugal Fan (Forward Curved, Dual Inlet, With Housing)
Dimensions (Casing Measuring): 171 x 180 x 215 mm
Dimensions (Impeller Size): 133 mm
Nominal Voltage: 230 VAC
Voltage Type: 1~ AC
Frequency: 50/60 Hz
Speed (50 Hz, Free Air): 1500 RPM
Speed (60 Hz, Max Load): 1800 RPM
Power Consumption (50/60 Hz): 190/200 W
Current Draw (50/60 Hz): 0.84/0.88 A
Motor Capacitor: 3 µF (450 VDB)
Max. Airflow: 710 m³/h (418.8 CFM)
Max. Static Pressure: 375 Pa (1.505 inAq)
Mass: 3.48 kg
Housing Material: Sheet steel, hot-galvanised
Impeller Material: Sheet steel, hot-galvanised
Bearing Type: Ball bearing
Degree of Protection: IP44
Protection Class: I
Insulation Class: B
Operation Mode: S1
Direction of Rotation: Clockwise, seen on rotor
Termination: 4 Wire Leads (PVC cable)
Motor Protection: Thermal overload protector (TOP) wired internally
Leakage Current: 0.75 mA
Max. Ambient Temperature (Operation): 35 °C
Min. Storage Temperature: -40 °C
Max. Storage Temperature: 80 °C
Approvals: CE, CCC

Application
The ebmpapst D2E133-AM47-01 fan is optimized for forced air circulation in high-resistance systems. Primary applications for the D2E133-AM47-01 include air handling units, centralized climate control systems, industrial drying equipment, and other systems where high pressure development, robust construction, and AC operation are critical requirements.
