Description

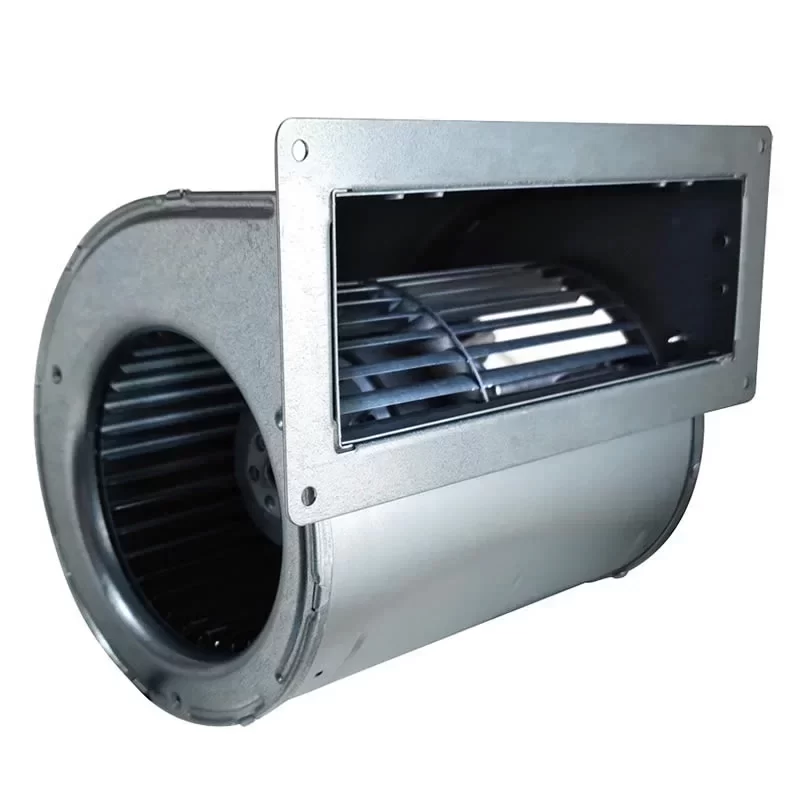

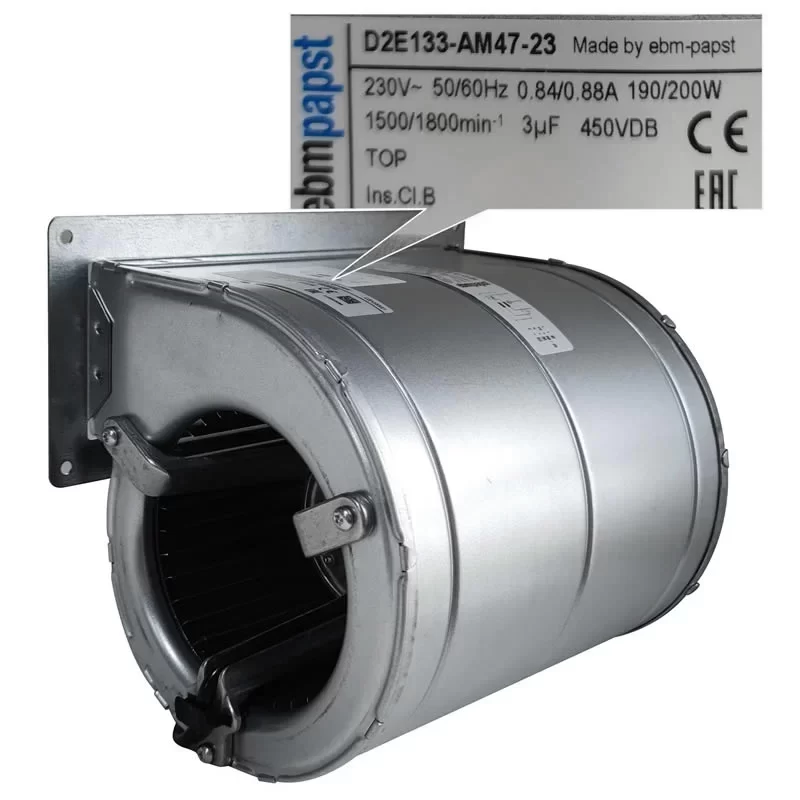

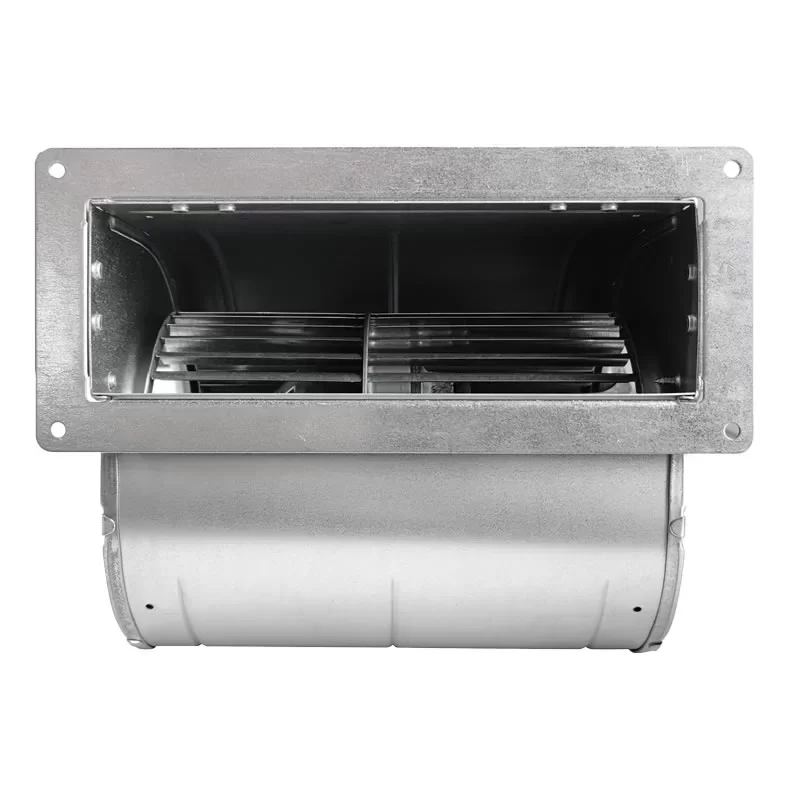

The ebmpapst D2E133-AM47-23 is a high-performance 230VAC single-phase AC Centrifugal Blower featuring a dual-inlet design with forward-curved impellers and a flanged housing. Driven by the M2E068-DF external rotor motor with maintenance-free ball bearings and a 3 µF / 450 VDB capacitor, this 133 mm impeller size blower is specifically engineered for mission-critical industrial cabinet ventilation, residential heat recovery systems, and cleanroom air filtration. Operating on a 230 VAC supply, it delivers a Power Input of 190 W (50 Hz) / 200 W (60 Hz) and a Current Draw of 0.84 A / 0.88 A at rated speeds of 1500 / 1800 RPM. Featuring rugged Sendzimir galvanized sheet steel construction and a motor mounted via side brackets, it ensures superior aerodynamic efficiency, durability, and reliable continuous S1 operation at the end.
D2E133-AM47-23 Fan Parameters
Model Number: D2E133-AM47-23
Motor Model: M2E068-DF
Manufacturer: ebmpapst
Type: AC Centrifugal Fan – Forward-curved, dual inlet with housing (flange)
Impeller Size: 133 mm
Dimensions: 254 x 198 x 171.5 mm
Weight: 3.5 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: rfa / ml
Current Draw: 0.84 / 0.88 A
Power Input: 190 / 200 W
Rated Speed: 1500 / 1800 RPM
Max. Air Flow: 382.6 / 382.6 CFM (650.0 / 650.0 m³/h / 10.83 / 10.83 m³/min)
Min. Back Pressure: 0.00 / 10.20 mmH₂O (0.0 / 100.0 Pa / 0.00 / 0.40 inAq)
Capacitor: 3.0 µF / 450 VDB
Housing Material: Sendzimir galvanized sheet steel
Impeller Material: Sendzimir galvanized sheet steel
Rotor Surface: Partially cast in aluminium
Direction of Rotation: Clockwise (viewed toward rotor)
Motor Suspension: Motor mounted via brackets on one side
Insulation Class: “B”
Degree of Protection: IP44
Humidity Class: F0
Leakage Current: < 0.75 mA (acc. IEC 60990, Fig. 4, TN system)
Motor Protection: Thermal overload protector (TOP) wired internally
Condensate Discharge Holes: None
Cable Exit: Axial
Installation Position: Any
Mode: S1 (Continuous operation)
Protection Class: I
Max. Ambient Temperature: 35 / 25 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; GOST
Application
The ebmpapst D2E133-AM47-23 blower is the primary air-moving solution for industrial cabinet ventilation, residential heat recovery systems, and cleanroom air filtration requiring reliable 230V single-phase centrifugal airflow with a flanged 133mm housing.
