Description

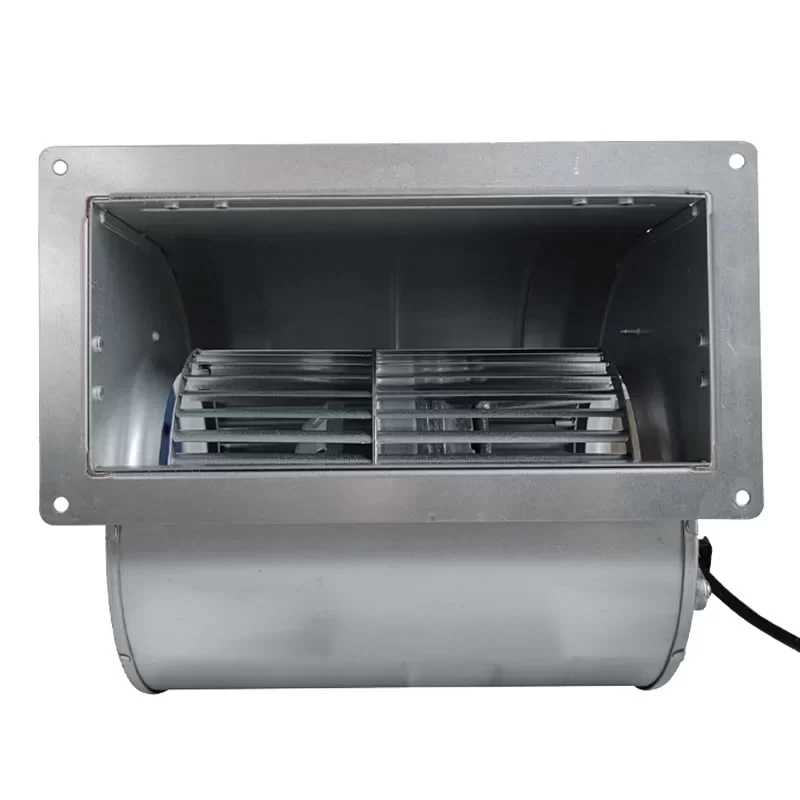

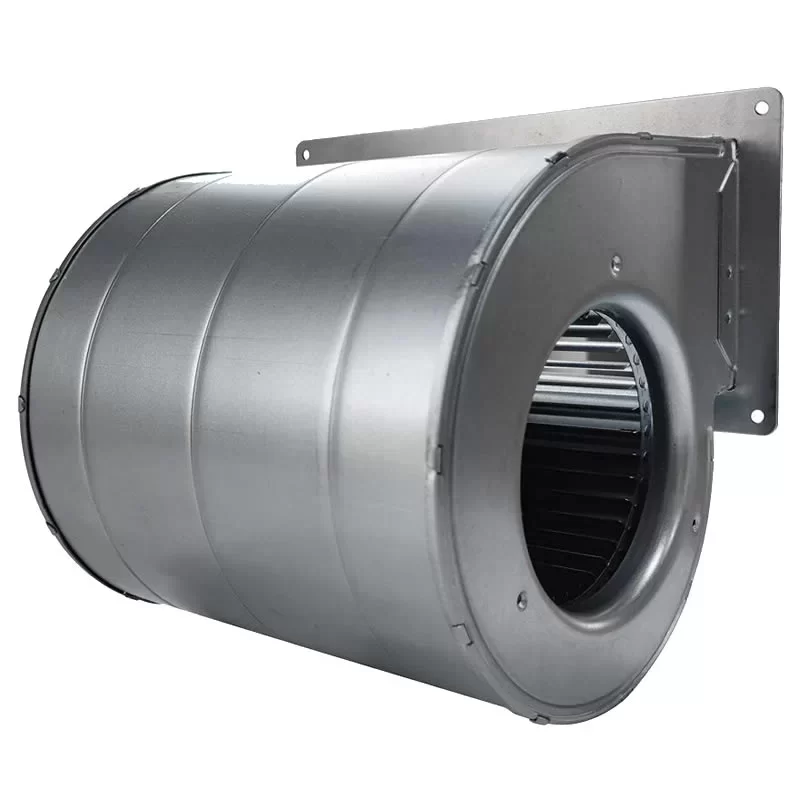

The ebmpapst D2E133-DM47-23 is a high-performance 230VAC single-phase AC Centrifugal Blower featuring a dual-intake design with forward-curved impellers and a flanged housing. Driven by the M2E068-DF external rotor motor with maintenance-free ball bearings and a 3 µF / 450 VDB capacitor, this 133 mm impeller size blower is specifically engineered for mission-critical industrial cabinet ventilation, residential heat recovery systems, and air purification. Operating on a 230 VAC supply, it delivers a Power Consumption of 175 W / 185 W and a Current Draw of 0.78 A / 0.82 A at rated speeds of 1650 / 2200 RPM. Featuring rugged hot-dip galvanized sheet steel construction and a motor mounted via side brackets, it ensures superior aerodynamic efficiency, durability, and reliable continuous S1 operation in dry environments at the end.
D2E133-DM47-23 Fan Parameters
Model Number: D2E133-DM47-23
Motor Model: M2E068-DF
Manufacturer: ebmpapst
Type: AC Centrifugal Fan – Forward-curved, dual-intake with housing (flange)
Impeller Size: 133 mm
Weight: 4.0 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: ml (Max. load)
Current Draw: 0.78 / 0.82 A
Power Consumption: 175 / 185 W
Rated Speed: 1650 / 2200 RPM
Max. Air Flow: 423.8 / 488.5 CFM (720.0 / 830.0 m³/h / 12.00 / 13.83 m³/min)
Min. Back Pressure: 10.20 / 25.49 mmH₂O (100.0 / 250.0 Pa / 0.40 / 1.00 inAq)

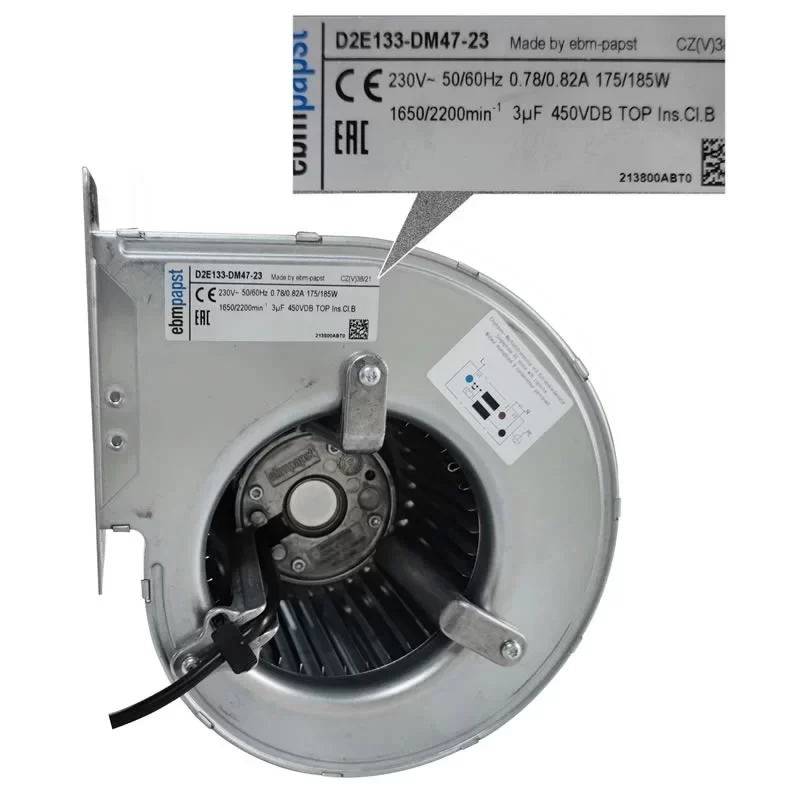

Capacitor: 3.0 µF / 450 VDB
Housing Material: Sheet steel, hot-dip galvanized
Impeller Material: Sheet steel, hot-dip galvanized
Rotor Surface: Partly cast in aluminum
Direction of Rotation: Clockwise (viewed toward rotor)
Motor Suspension: Motor mounted with brackets on one side
Insulation Class: “B”
Degree of Protection: IP44; installation- and position-dependent
Moisture (F) / Environmental (H) Protection Class: H0 – dry environment
Touch Current: < 0.75 mA (acc. IEC 60990, Fig. 4, TN system)
Motor Protection: Thermal overload protector (TOP) internally connected
Condensation Drainage Holes: None
Cable Exit: Axial
Installation Position: Any
Mode: S1 (Continuous operation)
Protection Class: I (with customer connection of protective earth)
Max. Ambient Temperature: 40 / 40 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC
Application
The ebmpapst D2E133-DM47-23 blower is the primary air-moving solution for industrial cabinet ventilation, residential heat recovery systems, and air purification units requiring high-pressure 230V single-phase centrifugal airflow with a flanged 133mm housing.
