D2E146-CD51-09 ebmpapst 230V 146mm AC Centrifugal Fan

Description

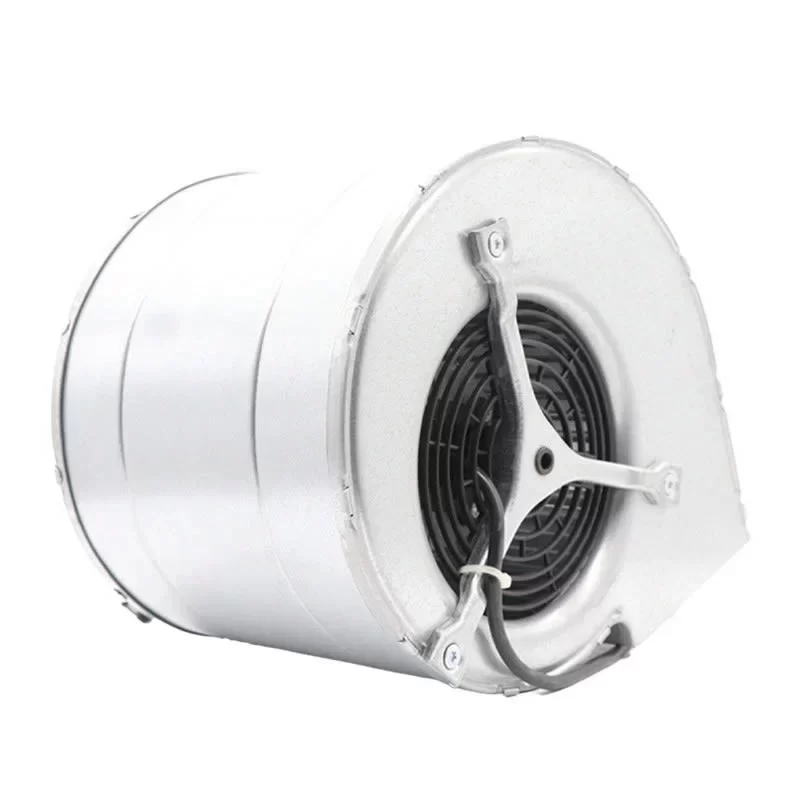

The ebmpapst D2E146-CD51-09 is a robust 230 V single-phase AC dual-inlet centrifugal fan featuring a 146 mm forward-curved galvanized steel impeller integrated into a heavy-duty scroll housing. Driven by the M2E068-DF external rotor motor, this unit is engineered for stable air displacement in industrial environments, delivering a powerful airflow at 1850 RPM with a power consumption of 230 W. The design features a galvanized steel housing and impeller, an unpainted rotor surface, and a PA plastic guard grille for enhanced safety. Optimized for high-resistance systems, it requires a minimum back pressure of 200 Pa to maintain operational stability and prevent motor overload. This compact, all-metal air-moving solution is ideal for air conditioning units, laboratory fume hoods, and electronic cabinet cooling across an ambient temperature range of -25 °C to 30 °C.

D2E146-CD51-09 Fan Parameters

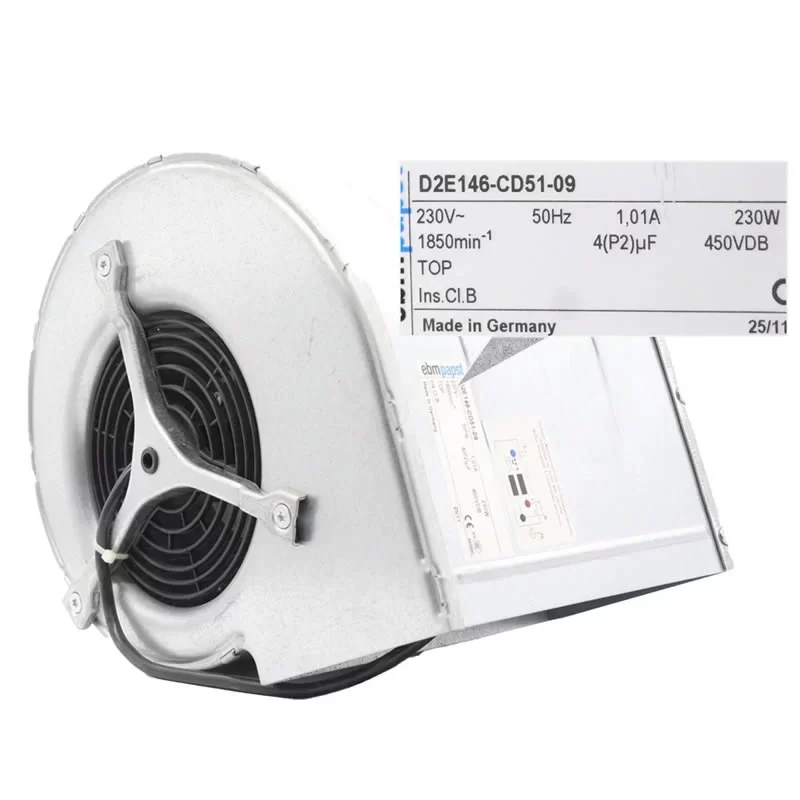

Model Number: D2E146-CD51-09
Manufacturer: ebmpapst
Motor Model: M2E068-DF
Series: AC Centrifugal Series
Type: AC Centrifugal Fan (Dual-Inlet with Scroll Housing)
Size: 146 mm
Dimensions: 225 x 241 x 176 mm
Bearing Type: Ball Bearing
Nominal Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Phase: 1~
Frequency: 50 Hz
Weight: 4.2 kg
Power Consumption: 230 W
Nominal Current: 1.01 A
Speed: 1850 RPM
Required Capacitor: 4 µF / 450 VDB (S2 standard)
Min. Back Pressure: 200 Pa
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Motor Design: Single-phase External Rotor Motor (PSC)
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: Class B
Touch Current: < 0.75 mA
Electrical Hookup: Axial cable
Number of Blades: 42 (Forward-curved)
Direction of Rotation: Counter-clockwise, viewed toward rotor
Impeller Material: Sheet steel, galvanized
Housing Material: Sheet steel, galvanized
Guard Grille Material: PA plastic
Rotor Surface: Unpainted
Installation Position: Any
Condensate Discharge Holes: None
Degree of Protection: IP44
Environmental Protection Class: H0 (Dry environment)
Operating Temperature: -25 – +30 °C
Standard Compliance: EN 60335-1
Approval Agency: CCC, EAC

Application
The ebmpapst D2E146-CD51-09 centrifugal fan is primarily utilized in air conditioning units, electronic cabinet cooling, fume hood ventilation, laboratory equipment cooling, and small air handling systems.
