Description

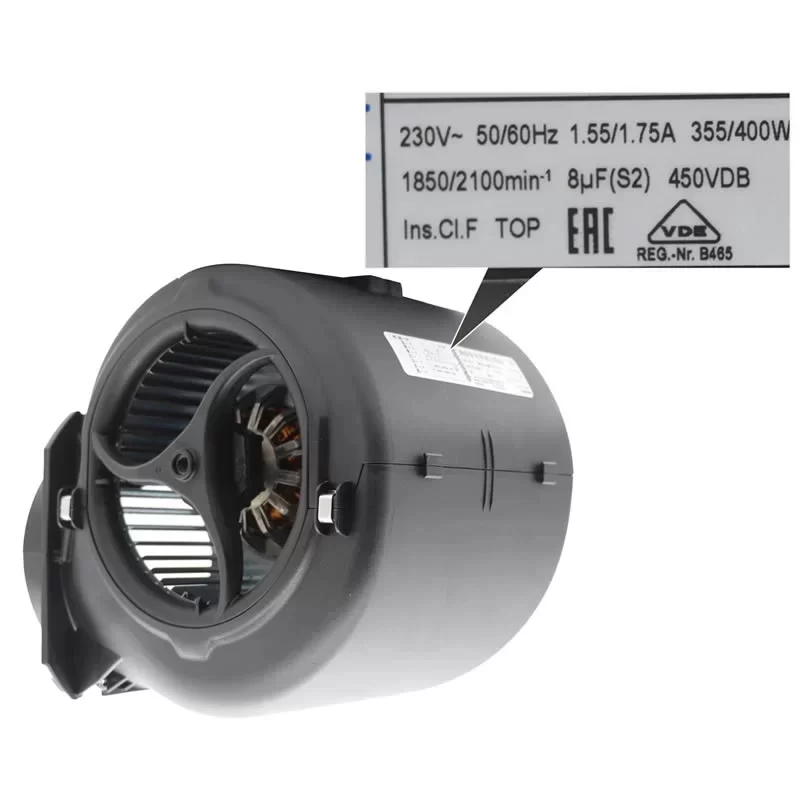

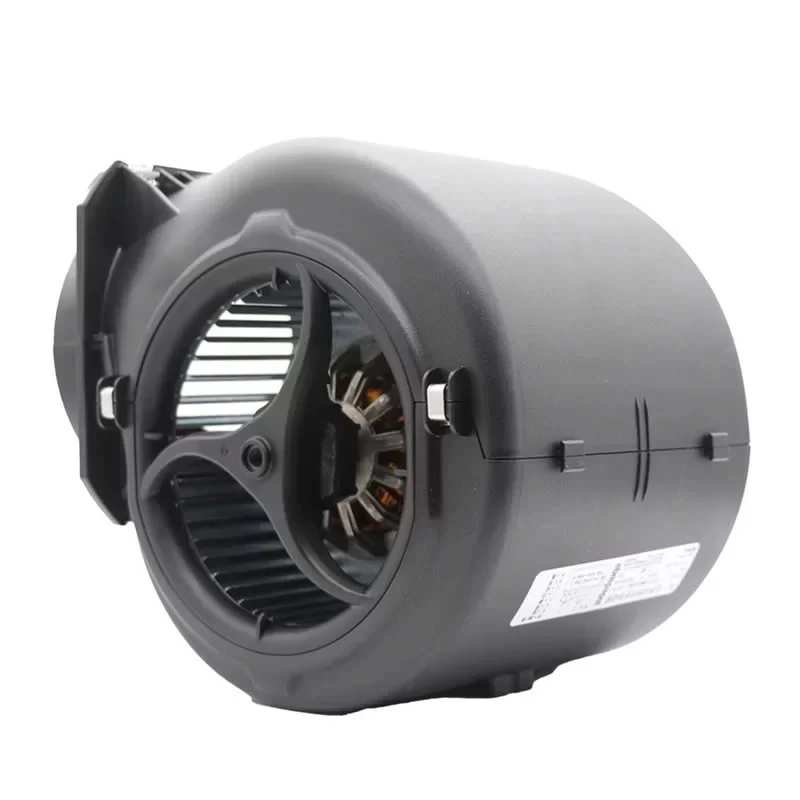

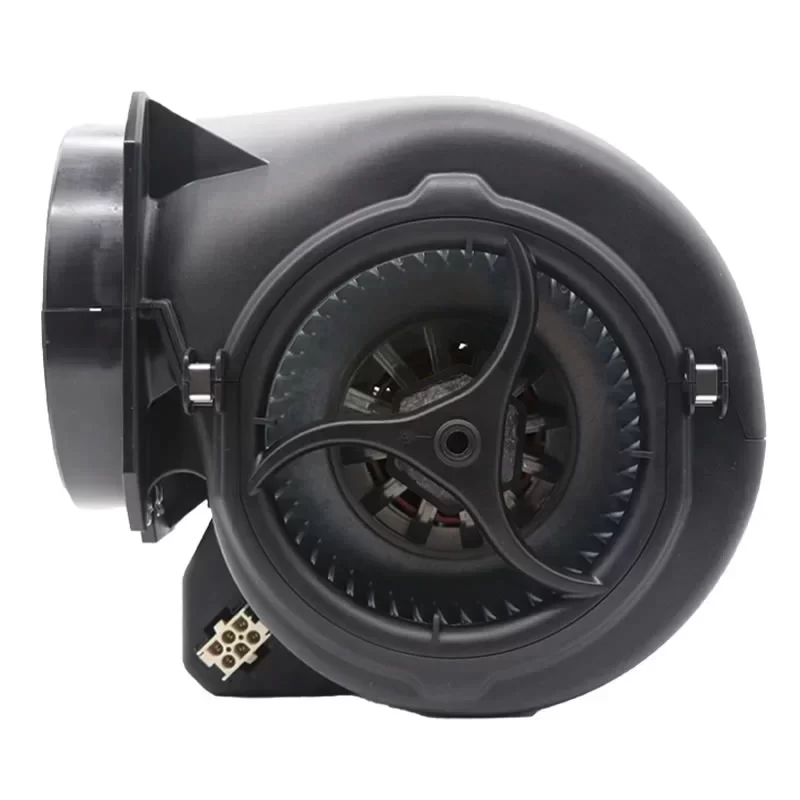

The ebmpapst D2E146-HT67-02 is a high-performance 230VAC single-phase AC Centrifugal Blower featuring a dual-intake design with forward-curved impellers and a flanged PP plastic housing. Driven by the M2E068-EC external rotor motor with maintenance-free ball bearings and an integrated 8 µF / 450 VDB S2-class capacitor, this 146 mm impeller size blower is specifically engineered for mission-critical industrial ventilation, medical equipment, and premium kitchen range hoods. Operating on a 230 VAC supply, it offers 4 speed levels, delivering a Power Consumption of 355 W / 400 W and a Current Draw of 1.55 A / 1.75 A at rated speeds of 1850 / 2100 RPM. Featuring a motor with vibration-damped mounting on both sides and a rugged black PP terminal box for plug-and-play connectivity, it ensures superior aerodynamic efficiency, low noise emissions, and reliable continuous S1 service in dry environments at the end.
D2E146-HT67-02 Fan Parameters
Model Number: D2E146-HT67-02
Motor Model: M2E068-EC
Manufacturer: ebmpapst
Type: AC Centrifugal Fan – Forward-curved, dual-intake with housing (flange)
Impeller Size: 146 mm
Dimensions: 220 x 216 x 199 mm
Weight: 3.4 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: ml (Max. load)
Current Draw: 1.55 / 1.75 A
Starting Current: 1.80 / 1.90 A
Power Consumption: 355 / 400 W
Rated Speed: 1850 / 2100 RPM
Max. Air Flow: 623.9 / 682.8 CFM (1060.0 / 1160.0 m³/h / 17.67 / 19.33 m³/min)
Min. Back Pressure: 0.00 / 20.39 mmH₂O (0.0 / 200.0 Pa / 0.00 / 0.80 inAq)
Capacitor: 8.0 µF / 450 VDB (S2 safety protection class)
Housing Material: PP plastic, black
Impeller Material: Sheet steel, hot-dip galvanized
Terminal Box Material: PP plastic, black
Rotor Surface: Partly cast in aluminum
Speed Levels: 4
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Motor Suspension: Motor vibration-damped on both sides
Insulation Class: “F”
Degree of Protection: IP20
Moisture (F) / Environmental (H) Protection Class: H0 – dry environment
Touch Current: < 0.75 mA (acc. IEC 60990, Fig. 4, TN system)
Motor Protection: Thermal overload protector (TOP) internally connected
Condensation Drainage Holes: None, open rotor
Electrical Hookup: With plug; Via terminal box (capacitor integrated and connected)
With Cable: Variable
Installation Position: Any
Mode: S1 (Continuous operation)
Protection Class: I (with customer connection of protective earth)
Max. Ambient Temperature: 55 / 50 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-2-31; CE
Approval: CCC; VDE; EAC
Application
The ebmpapst D2E146-HT67-02 blower is the primary air-moving solution for high-end kitchen range hoods, medical filtration systems, and industrial ventilation requiring multi-speed 230V single-phase centrifugal airflow in a 146mm configuration.
