Description

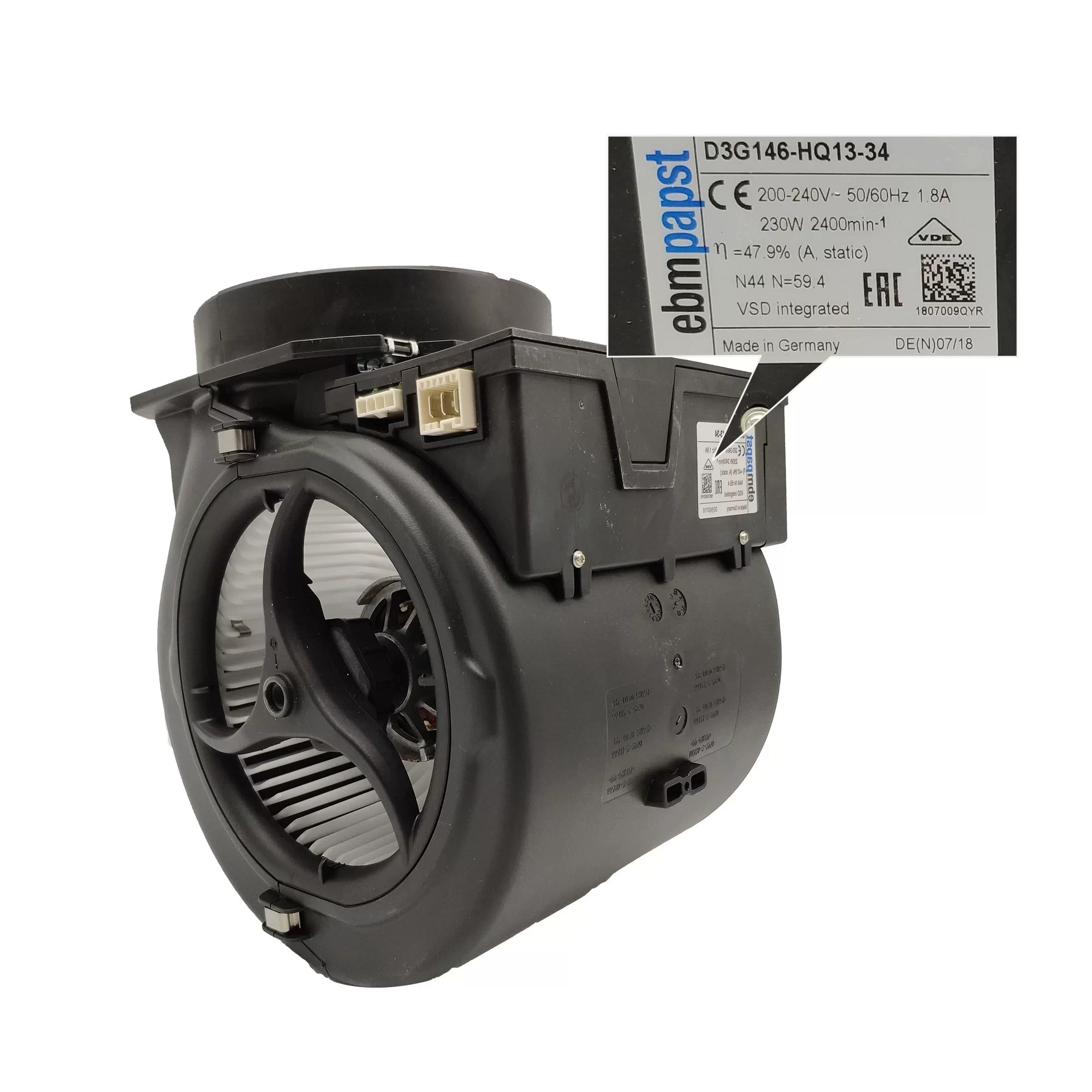

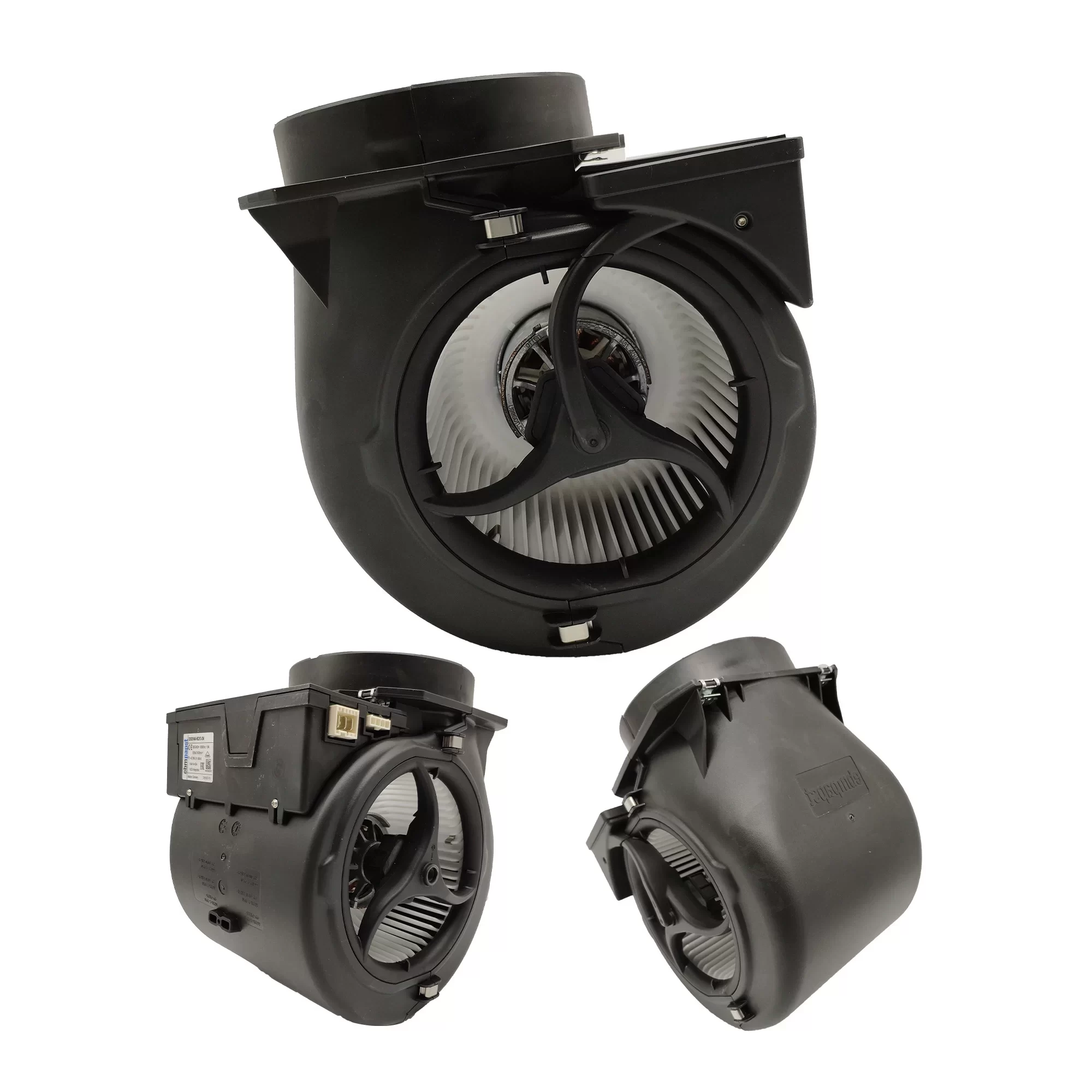

The ebmpapst D3G146-HQ13-34 is a high-efficiency EC centrifugal fan, featuring the M3G045-CF motor and measuring 146x150mm. Operating at 230VAC within a 200-240V range across both 50Hz and 60Hz frequencies, it consumes 230W of power and draws 1.8A of current. This fan delivers a static pressure of 460Pa and operates at a speed of 2400RPM. Equipped with durable ball bearings, a PP plastic impeller, and a PP plastic housing, it boasts an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -25 to 50°C.
D3G146-HQ13-34 Fan Parameters
Manufacturer: ebmpapst
Model: D3G146-HQ13-34
Motor: M3G045-CF
Fan Type: EC Centrifugal Fan
Dimensions: 146 x 150 mm
Rated Voltage: 230 VAC
Operating Voltage Range: 200 ~ 240 VAC
Frequency: 50 Hz / 60 Hz
Current Rating: 1.8 A
Power Consumption: 230 W
Static Pressure: 460 Pa
Speed: 2400 RPM
Bearing Type: Ball Bearing
Termination: Wire Leads
Operating Temperature: -25 ~ 50°C
Housing Material: PP plastic
Blade Material: PP plastic
IP Rating: IP20
Weight: 2.4 kg
Approval Agency: VDE
Application: This ebmpapst EC centrifugal fan is suitable for various ventilation and air handling units, heating systems, and other applications requiring efficient airflow with good static pressure performance in a compact design.
