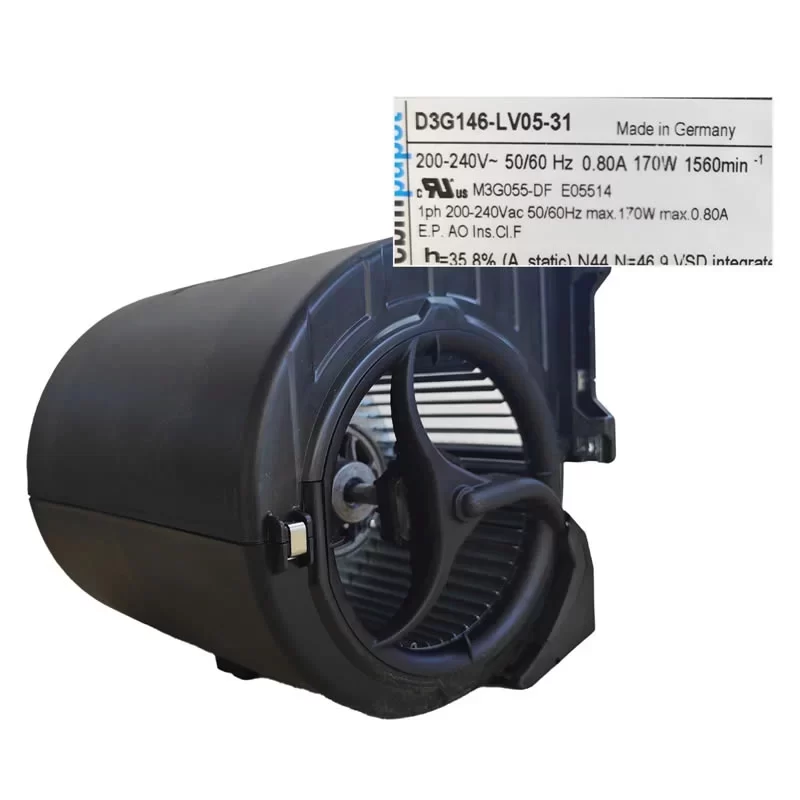

D3G146-LV05-31 ebmpapst 230V 146mm EC Centrifugal Fan

Description

The ebmpapst D3G146-LV05-31 is a high-efficiency 200-240 V single-phase GreenTech EC dual-inlet centrifugal fan featuring a 146 mm forward-curved galvanized steel impeller integrated into a robust PP plastic scroll housing. Driven by the M3G055-DF motor with integrated control electronics, this unit is engineered for optimized air displacement in space-constrained environments, delivering an airflow of 745 m³/h with a power consumption of 170 W. The motor features dual-side vibration damping and cooling openings on both rotor and stator sides to ensure stable, long-term operation. Equipped with an active PFC, tachometer output, and a 0-10 VDC/PWM control interface, the D3G146-LV05-31 provides a smart, low-vibration, and energy-saving thermal management solution for precision cooling and ventilation across an ambient temperature range of -25 °C to 60 °C.

D3G146-LV05-31 Fan Parameters
Model Number: D3G146-LV05-31
Manufacturer: ebmpapst
Motor Model: M3G055-DF
Series: RadiCal EC Centrifugal Series
Type: EC Centrifugal Fan (Dual-Inlet with Scroll Housing)
Size: 146 mm
Dimensions: 206 x 216 x 272 mm
Bearing Type: Ball Bearing
Nominal Voltage: 230 VAC
Voltage Range: 200 – 240 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Weight: 2.72 kg
Power Consumption: 170 W (Ped 0.17 kW)
Nominal Current: 0.8 A
Speed: 1560 RPM (2250 RPM at peak point)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Efficiency Grade (N): 46.9
Overall Efficiency (ηes): 35.8%
Motor Design: Single-phase EC External Rotor Motor
Control Interface: 0-10 VDC / PWM; Tach output
Technical Features: Active PFC; Soft start; Motor current limitation; 10 VDC output (max. 10 mA); Control interface with SELV potential; Thermal overload protection for motor
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: Class F
Touch Current: <= 3.5 mA
Electrical Hookup: Plug with variable cable
Number of Blades: 42 (Forward-curved)
Direction of Rotation: Counter-clockwise, viewed toward rotor
Impeller Material: Sheet steel, galvanized
Housing Material: PP plastic
Electronics Housing Material: PP plastic
Motor Suspension: Motor vibration-damped on both sides
Installation Position: Any
Condensate Discharge Holes: None
Degree of Protection: Motor IP00, electronics IP20
Environmental Protection Class: H0 (Dry environment)
Operating Temperature: -25 – +60 °C
Standard Compliance: EN 60335-1, CE
Approval Agency: CSA C22.2 No. 77, UL 1004-7, EAC

Application
The ebmpapst D3G146-LV05-31 centrifugal fan is primarily utilized in electronic cabinet cooling, small air handling units, laboratory equipment ventilation, cleanroom filter units, and compact HVAC systems.
