D3G146-LV13-30 ebmpapst 230V 146mm EC Centrifugal Fan

Description

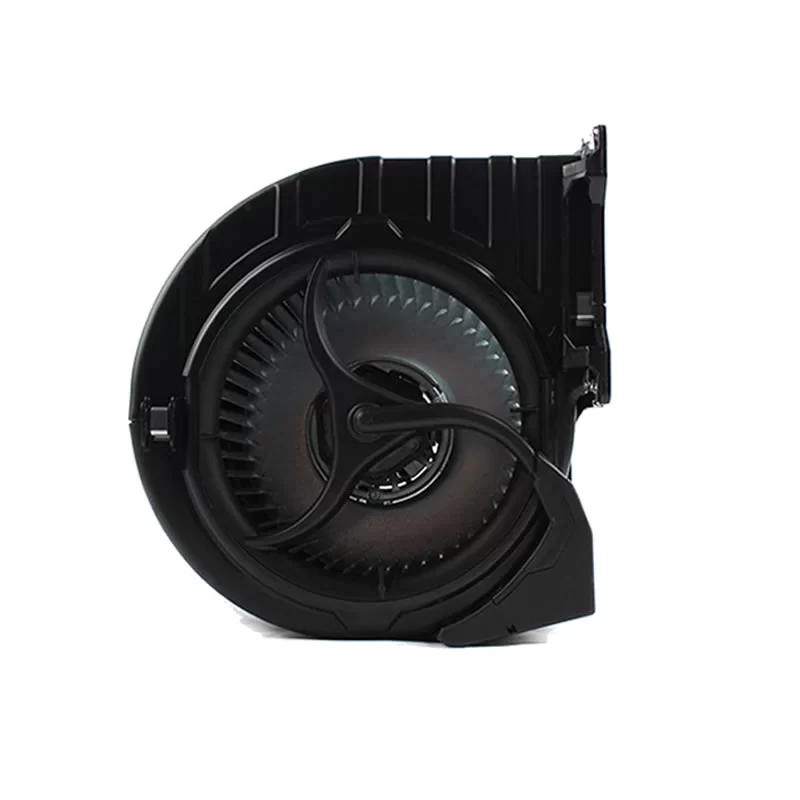

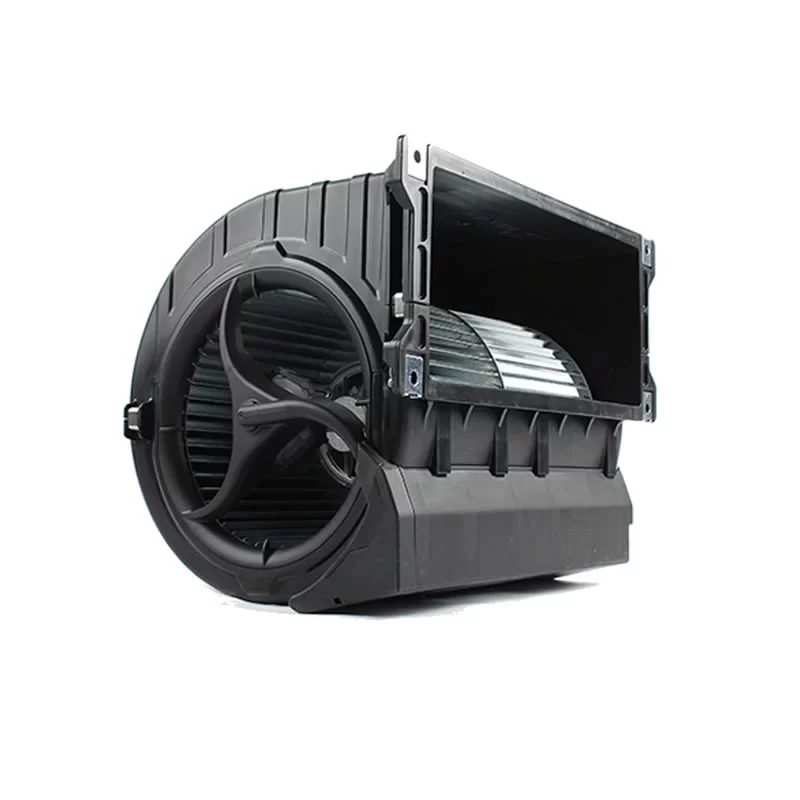

The ebmpapst D3G146-LV13-30 is a high-performance DC Axial Fan with dimensions of 206 x 270 x 203 mm. Operating at a nominal voltage of 230 V, this EC dual-inlet centrifugal blower is engineered for high-efficiency air displacement and pressure stability. Featuring a forward-curved impeller and an integrated GreenTech EC motor, it delivers an airflow of up to 1155 m³/h with a power input of 167 W. This model is ideal for demanding cooling applications in telecommunications, industrial control cabinets, and cleanroom technology where precise speed control and low energy consumption are critical.

D3G146-LV13-30 Fan Parameters

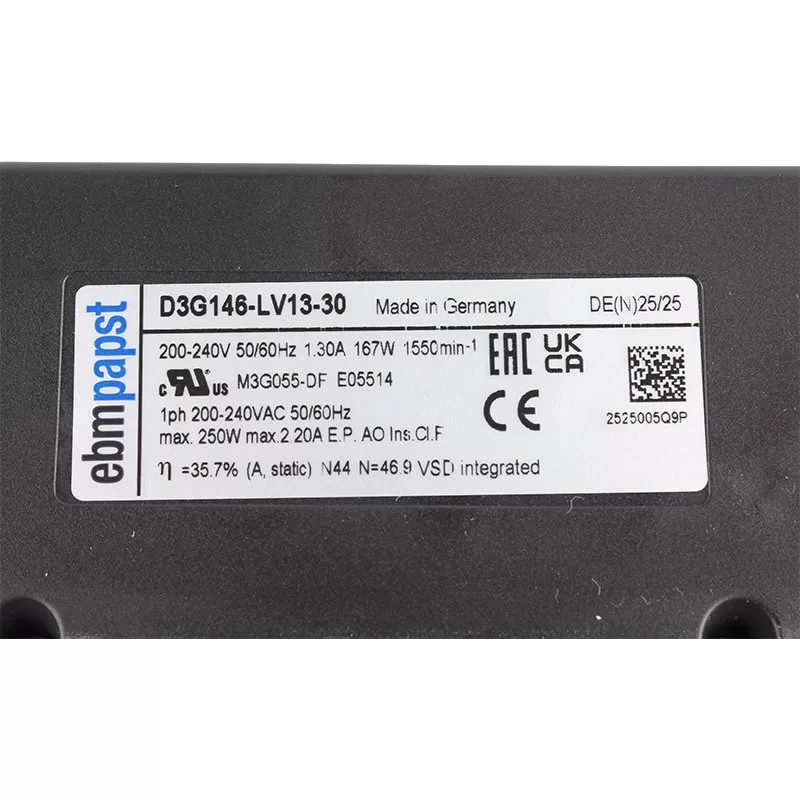

Manufacturer: ebmpapst
Motor: M3G055-DF
Phase: 1~
Nominal Voltage: 230 VAC
Nominal Voltage Range: 200 to 240 VAC
Frequency: 50/60 Hz
Speed: 1550 RPM
Power Input: 167 W
Current Draw: 1.3 A
Max. Airflow: 1155 m³/h
Max. Static Pressure: 1.31 inAq
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 60 °C
Weight: 2.9 kg
Impeller Size: 146 mm
Dimensions: 206 x 270 x 203 mm
Impeller Material: Sheet steel, galvanized
Housing Material: PP plastic
Direction of Rotation: Clockwise, viewed toward rotor
Degree of Protection: IP20
Insulation Class: B
Moisture Class: F0
Type of Protection: Thermal overload protector (TOP) internally connected
Technical Features: Control input 0-10 VDC / PWM, Output 10 VDC, max. 1.1 mA, Tach output
Approval: UL 2111, CSA C22.2 No. 77, VDE, CCC, EAC

Application
The D3G146-LV13-30 is primarily designed for high-end thermal management and ventilation scenarios including HVAC systems for residential or commercial use, precision cooling in data centers and server rooms, and industrial environments such as frequency converter cooling or control cabinet ventilation. Its integrated electronics and speed control capabilities make it particularly suitable for cleanroom Filter Fan Units (FFU) and medical equipment where consistent airflow and energy efficiency are mandatory.
