Description

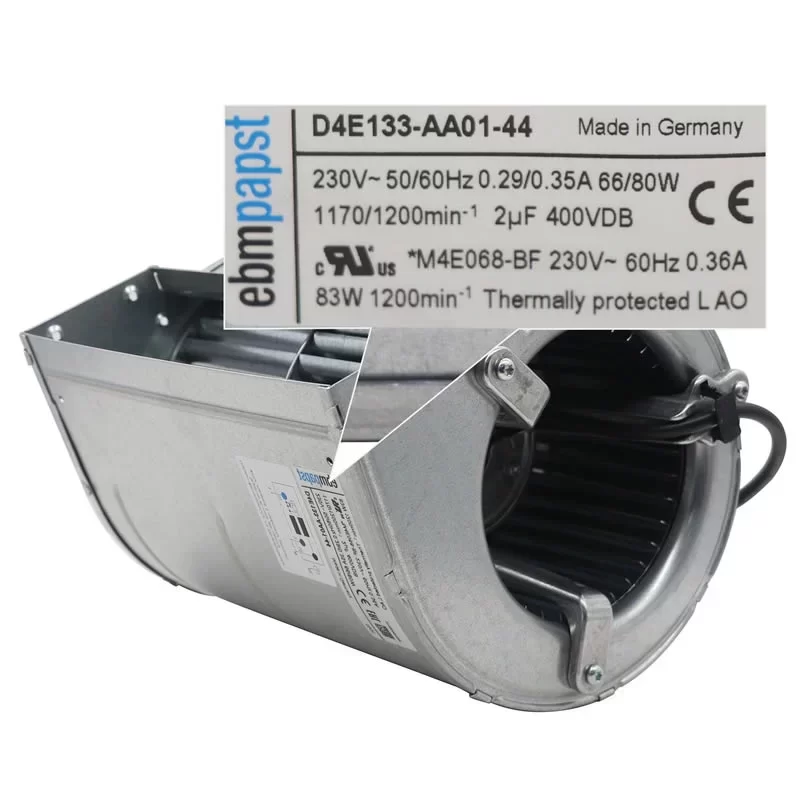

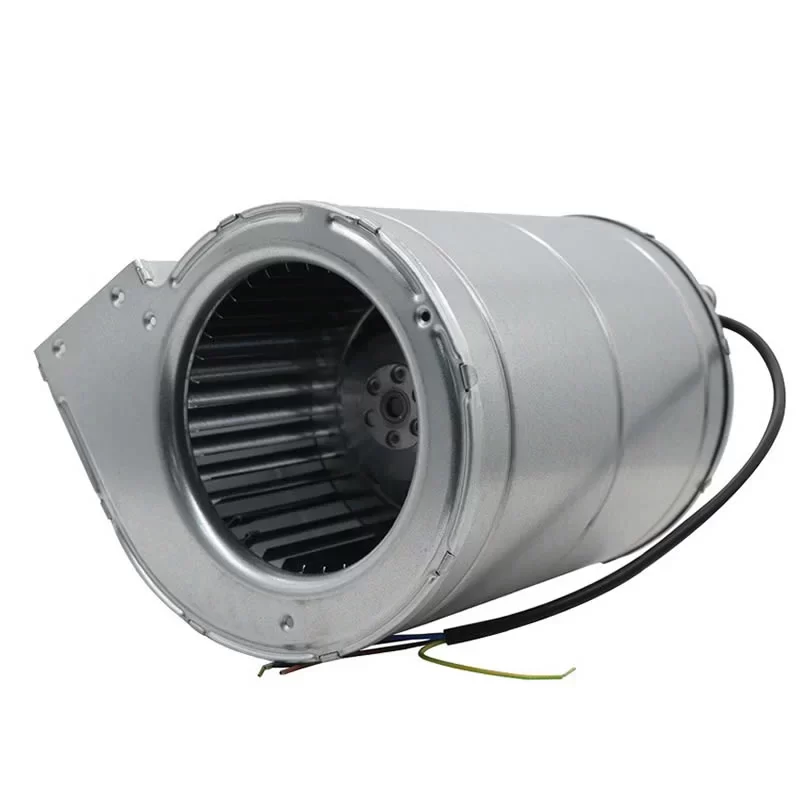

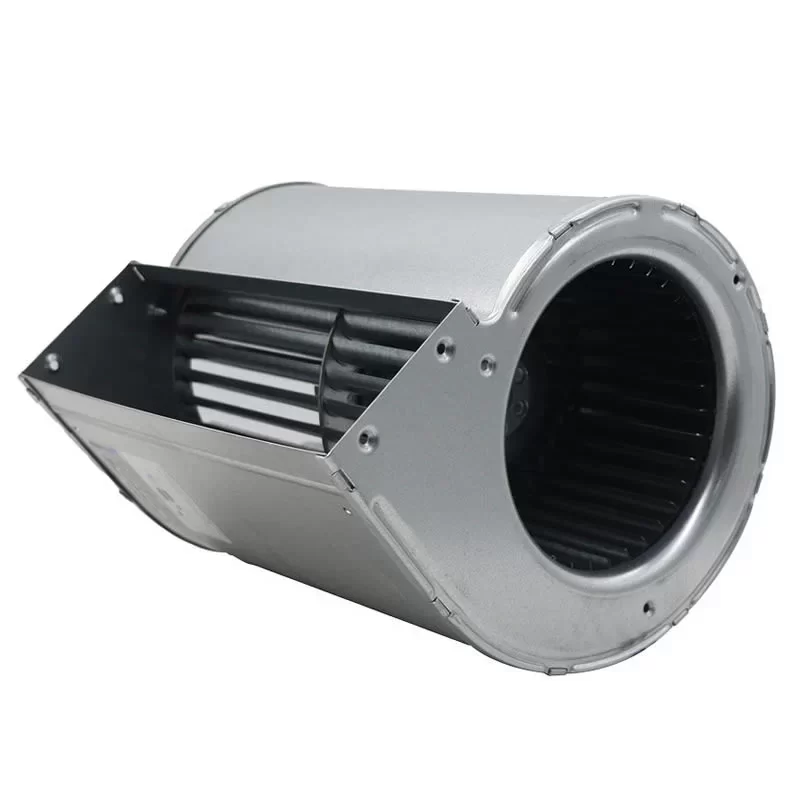

The ebmpapst D4E133-AA01-44 is a high-performance 230VAC single-phase AC Centrifugal Blower with a dual-inlet design, including a housing (flange) and an impeller diameter of 133 mm. Specifically engineered for mission-critical cooling in HVAC systems and industrial ventilation, this unit features overall dimensions of 230 x 180 x 170.5 mm. Driven by the M4E068-BF external rotor motor with maintenance-free ball bearings, it operates on a 230 VAC supply, delivering a Power Consumption of 66 W (50 Hz) / 80 W (60 Hz) and a Current Draw of 0.29 A / 0.35 A at a rated speed of 1200 RPM under free air conditions. Requiring a 2.0 µF / 400 VDB capacitor for operation, this unit features a motor mounted with brackets on one side for vibration damping and a rugged galvanized sheet steel housing. Optimized for continuous S1 environments, it ensures superior thermal management with IP44 protection and an extended service life at the end.
D4E133-AA01-44 Fan Parameters
Model Number: D4E133-AA01-44
Motor Model: M4E068-BF
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Forward-curved, dual-intake)
Size: 133 mm
Dimensions: 230 x 180 x 170.5 mm
Weight: 2.7 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.29 / 0.35 A
Power Consumption: 66 / 80 W
Capacitor: 2.0 µF
Capacitor Voltage: 400 VDB
Rated Speed: 1170 / 1200 RPM
Max. Air Flow: 258.98 / 311.95 CFM (440.0 / 530.0 m³/h / 7.33 / 8.83 m³/min)
Max. Static Pressure: 18.36 / 26.51 mmH₂O (180.0 / 260.0 Pa / 0.72 / 1.04 inH₂O)
Motor Suspension: Motor mounted with brackets on one side
Noise Level: 54.0 / 59.0 dB(A)
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: “B”
Degree of Protection: IP44
Protection Class: I
Moisture (F) / Environmental (H) Class: H0 – dry environment
Impeller Material: Sheet steel, galvanized
Housing Material: Sheet steel, hot-dip galvanized
Direction of Rotation: Clockwise, viewed toward rotor
Installation Position: Any
Mode: S1
Ambient Temperature (Max.): 55 / 55 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE
Approval: UL 1004-3; CSA C22.2 No. 77
Application
The ebmpapst D4E133-AA01-44 fan is the primary cooling component for central air conditioning units, ventilation systems, and industrial enclosures requiring high-volume 230V airflow from a dual-inlet flanged blower.
