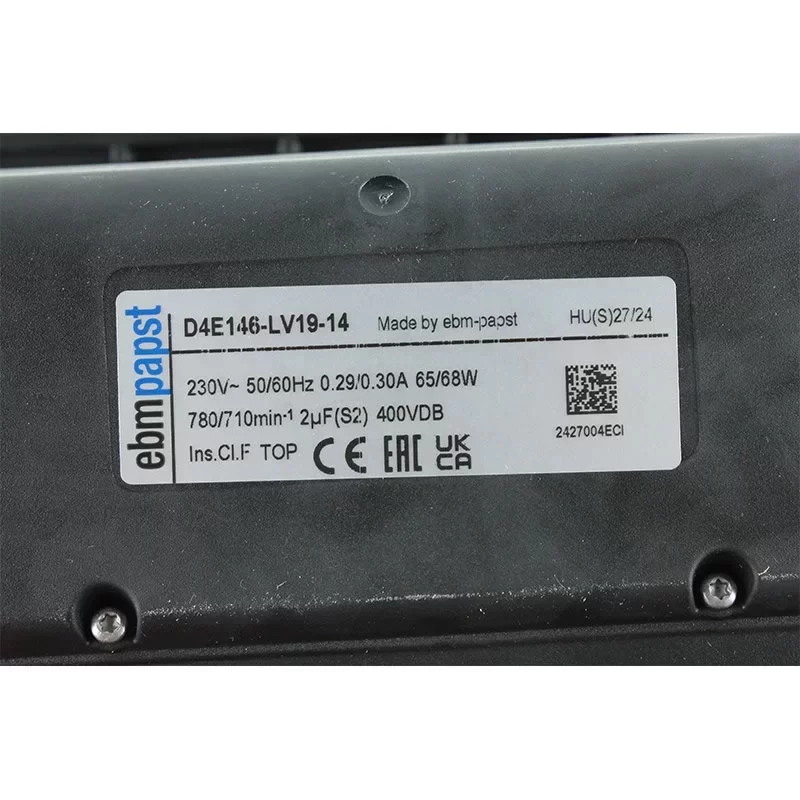

D4E146-LV19-14 ebmpapst 230V 146mm AC Centrifugal Fan

Description

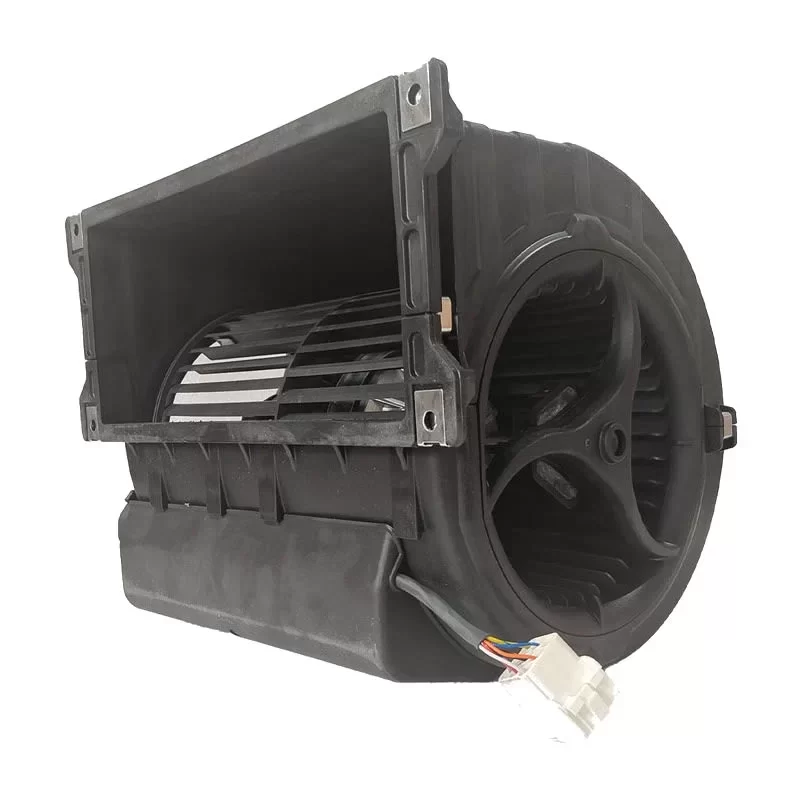

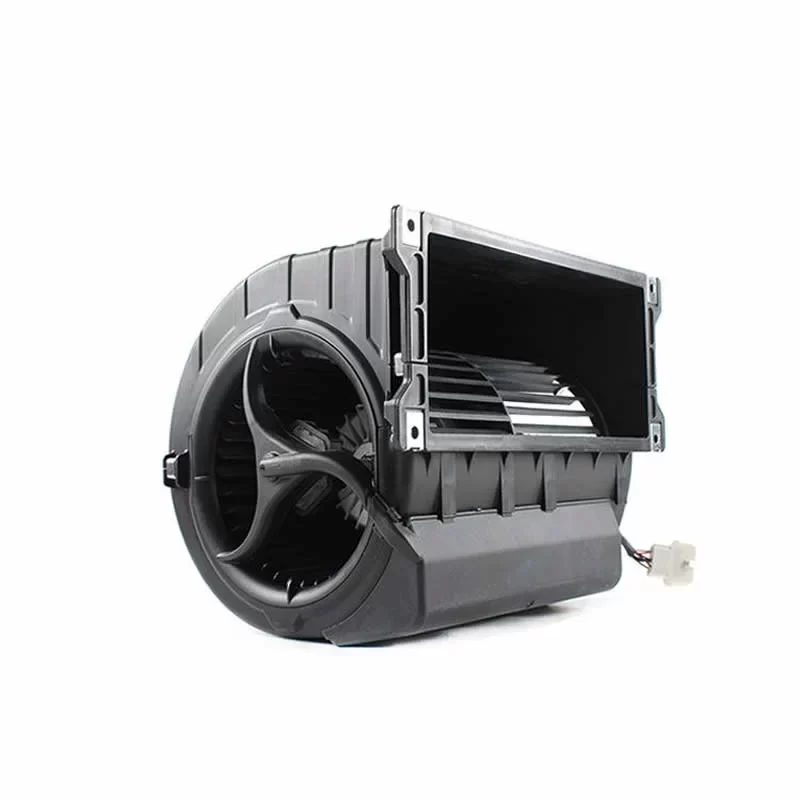

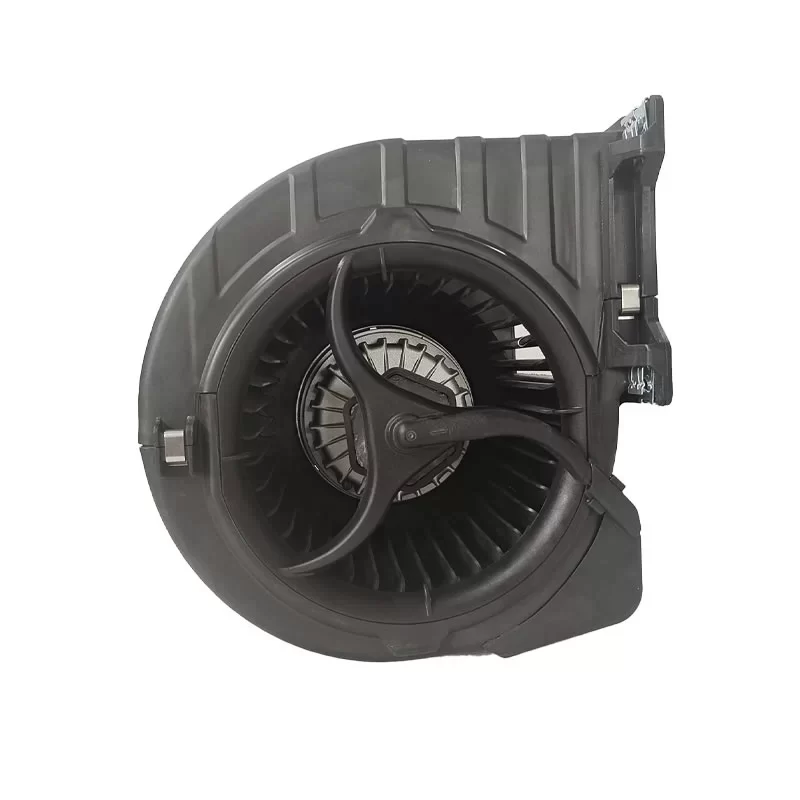

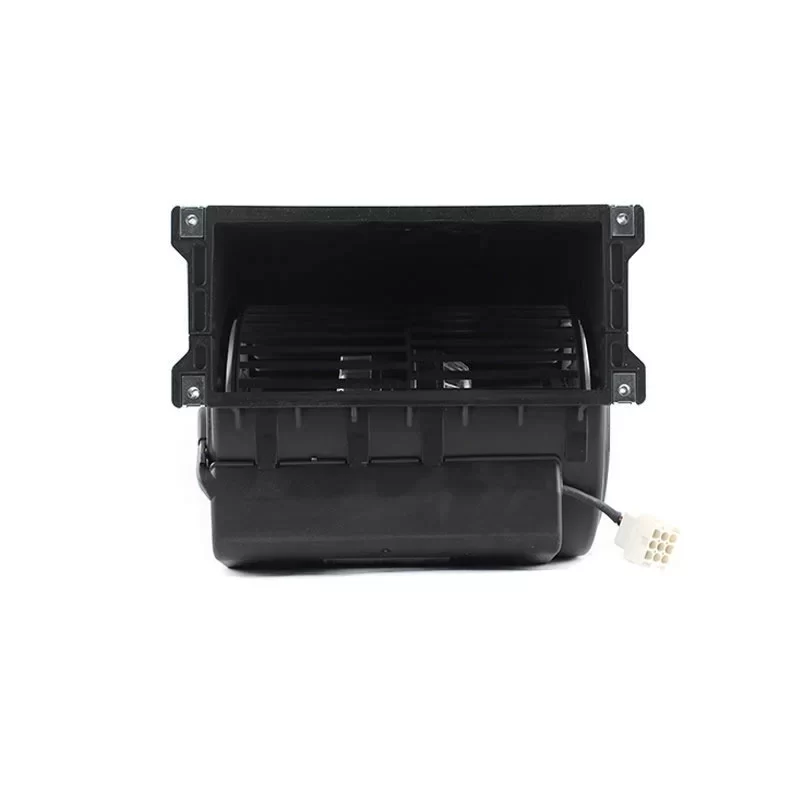

The ebmpapst D4E146-LV19-14 is a highly efficient 1-phase AC Dual Inlet Centrifugal Fan featuring a 146 mm PA plastic impeller and a robust PP plastic housing. Driven by the M4E068-CF external rotor motor with anti-vibration mounting on both sides, this unit is designed for versatile air displacement with 5 integrated speed steps. Operating at a nominal voltage of 230 VAC, it delivers a rated speed of 780 RPM (50 Hz) with a power input of 65 W, ensuring whisper-quiet and stable performance. This 2.5 kg module features an integrated terminal box with a pre-connected 2 µF capacitor and a convenient plug system for electrical connection. With IP44 protection, Insulation Class F, and an internal thermal overload protector, the D4E146-LV19-14 provides a reliable, vibration-damped cooling solution for residential ventilation, air purifiers, and light industrial HVAC systems.

D4E146-LV19-14 Fan Parameters
Manufacturer: ebmpapst
Model Number: D4E146-LV19-14
Motor Model: M4E068-CF
Phase: 1~
Type: AC Centrifugal Fan (Dual Inlet)
Size: 146 mm
Dimensions: 203 x 216 x 272 mm
Weight: 2.5 kg

[Electrical Data – 50 Hz]
Nominal Voltage: 230 VAC
Frequency: 50 Hz
Speed: 780 RPM
Power Input: 65 W
Current Draw: 0.29 A
Motor Capacitor: 2 µF / 400 VDB (P2 CE)
Starting Current: 0.33 A
Max. Ambient Temperature: 50 °C

[Electrical Data – 60 Hz]
Nominal Voltage: 230 VAC
Frequency: 60 Hz
Speed: 710 RPM
Power Input: 68 W
Current Draw: 0.3 A
Motor Capacitor: 2 µF / 400 VDB (P2 CE)
Starting Current: 0.33 A
Max. Ambient Temperature: 40 °C

[Performance & Acoustics]
Air Flow: Approx. 580 m³/h (341.4 CFM)
Min. Back Pressure: 0 Pa (0 inAq)
Speed Steps: 5
Number of Blades: Multi-blade (Forward-curved)
Sound Pressure Level: Low-noise optimized

[Materials & Construction]
Housing Material: PP plastic
Impeller Material: Glass-fiber reinforced PA plastic
Terminal Box Material: PP plastic
Surface of Rotor: Uncoated
Motor Suspension: Motor mounted with anti-vibration on both sides
Direction of Rotation: Counter-clockwise, seen on rotor
Mounting Position: Any
Motor Bearing: Ball bearing

[Reliability & Protection]
Motor Protection: Thermal overload protector (TOP) wired internally
Type of Protection: IP 44 (Installation dependent)
Insulation Class: F
Humidity Class: F0
Operation Mode: S1 (Continuous duty)
Cable Exit: Axial (Via terminal box with plug)
Approval: CE, CCC, EN 60335-1

Application
The ebmpapst D4E146-LV19-14 is specifically engineered for noise-sensitive air-moving applications such as decentralized home ventilation units, laboratory fume hoods, and high-end air filtration systems. Its 146 mm PA plastic impeller and dual-vibration-damped motor suspension significantly reduce structural resonance and mechanical noise during operation. The 5-speed step design allows for precise control of airflow, reaching up to 580 m³/h (341.4 CFM) to match specific environmental demands. Equipped with an integrated capacitor in the PP terminal box and a plug-and-play connection, this 2.5 kg centrifugal blower ensures rapid installation and long-term, maintenance-free reliability in modern 230V AC climate control infrastructures.
